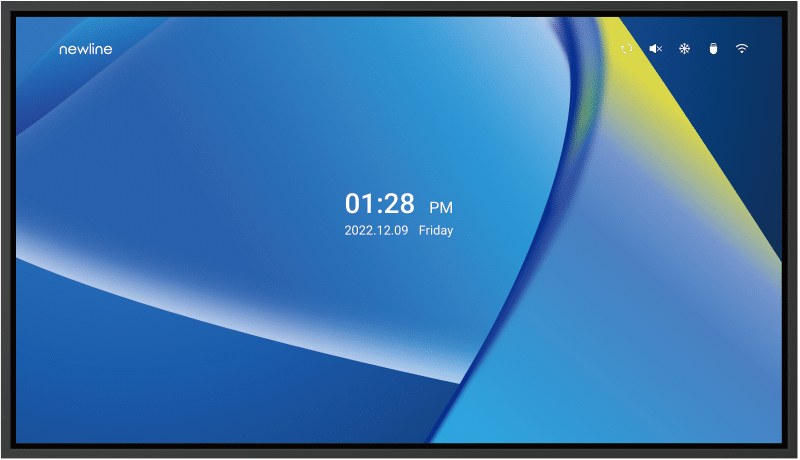

Newline NT+ Series 86-inch 4K Non-Touch Display – TT-8623NT
The Newline TT-8623NT is an 86-inch 4K UHD non-touch display for classrooms and meeting rooms, with wireless screen sharing, Android 11 and 400 nits brightness. It mounts on a wall or mobile cart using an 800 x 400 mm VESA pattern. Procure.ae supplies the Newline NT+ Series across the UAE, with quotes, delivery and installation.
The TT-8623NT has an 86-inch LED-backlit panel at 3840 x 2160 resolution, with 400 nits centre brightness, 4,000:1 typical contrast, an 8 ms response time and a 178-degree viewing angle. Its 10-bit panel shows 1.07 billion colours. The Smart System runs Android 11 on a quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB ROM. Users can cast the screen wirelessly from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome, and open files stored on cloud storage services or on USB thumb drives.
The NT+ Series is built for shared viewing rather than writing on screen. The TT-8623NT has no touch sensor, so it does not accept finger or pen input. Its connections include three HDMI In ports, three USB 2.0 ports, an RJ-45 LAN input and an RS-232 port. A pluggable Wi-Fi 6 and Bluetooth 5.2 module adds wireless connectivity, and firmware can be updated over USB or over the air.
Key features
Specifications
| Key Features | 4K UHD, non-touch, wireless screen sharing, cloud storage access, USB file access, Android 11, USB and OTA firmware update, multi-language support |
| Model | TT-8623NT |
| Type | Non-Touch Display |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits (centre) |
| Color Depth | 1.07 billion colours (10-bit) |
| Contrast Ratio | 4,000:1 (typical) |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical) |
| Screen Size | 86 inch |
| Touchscreen | No (non-touch) |
| Viewing Angle | 178° |
| Operating System | Android 11 |
| Processor | Quad-core Arm Cortex-A55, 1.5 GHz (up to 1.9 GHz) |
| RAM | 4 GB |
| Storage | 32 GB |
| Storage Conditions | 15 to 45 °C, 20% to 90% RH |
| Frequency Response | 250 Hz – 20 kHz |
| Speaker Output | 15 W × 2 average, 20 W × 2 maximum |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC |
| Ports | HDMI In × 3, USB 2.0 × 3, RJ-45 LAN In × 1, RS-232 × 1 |
| Wi-Fi | Wi-Fi 6 (pluggable module) |
| Power Consumption | 350 W (standard mode) |
| Standby Power | Under 0.5 W |
| Dimensions | 1946 x 1116 x 94 mm |
| Mounting | Wall-mounted / mobile cart |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 800 x 400 mm |
| Weight | 42 kg (net) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
