NewlineMeeting Room SolutionsSKU Wall Mounts (IFPI-19X)
Newline IFPI-19X Wall Mount for Interactive Displays – IFPI-19X
The Newline IFPI-19X is a wall mount for Newline interactive displays from 55 to 86 inches. It has a rated capacity of 136.4 kg (300 lbs), VESA compatibility up to 860 x 480 mm and a panel offset of 2.5 inches from the wall. Procure.ae supplies the IFPI-19X in the UAE, with quotes, delivery and installation.

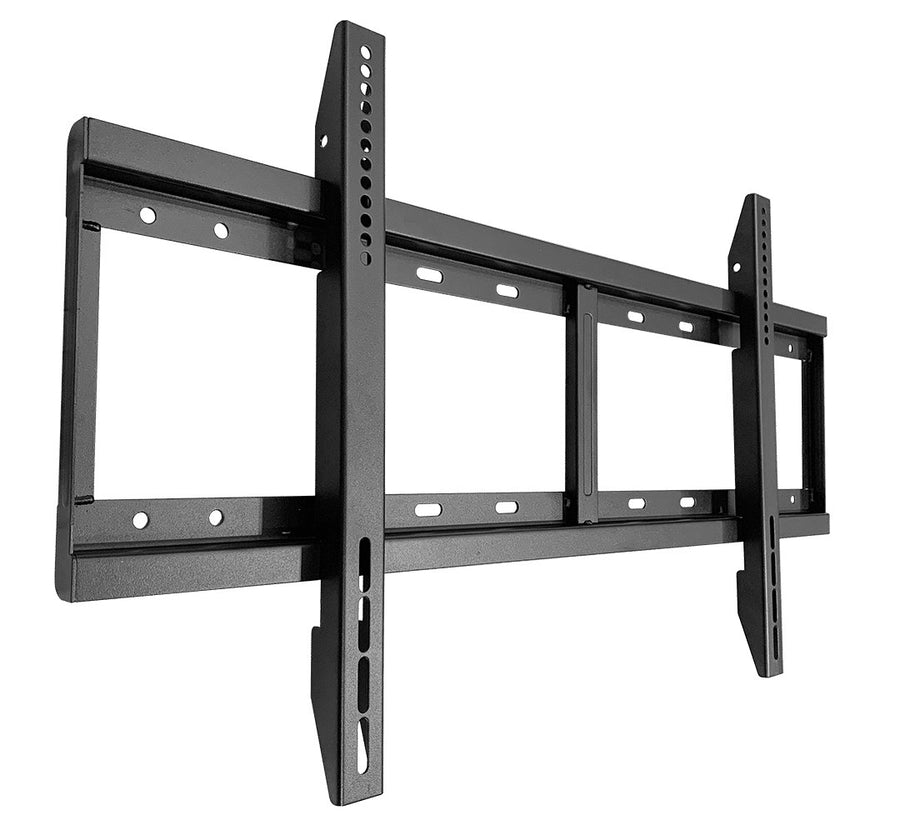

The IFPI-19X uses a black cold-rolled steel mount in two parts. Bracket B locks to the wall and Bracket A attaches to the display, and a rail lets the panel shift left and right for placement. The manufacturer states that the mount supports panels from 55 to 86 inches and allows height and tilt adjustment. The open wall plate leaves space to route cables behind the display.
Type
Wall Mount
Weight
3.75 kg
- Wide Size Range
- High Load Rating
- VESA Compatible
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wide Size Range
Supports Newline displays from 55 to 86 inches.
02
High Load Rating
Rated for up to 136.4 kg (300 lbs).
03
VESA Compatible
Hole pattern up to 860 x 480 mm.
04
Low Profile
Panel sits 2.5 inches from the wall.
05
Rail Adjustment
Shift the panel left or right, and adjust height or tilt.
06
Cable Routing
Open wall plate leaves space for cables.
Specifications
12 specificationsGeneral
Key FeaturesSupports 55 to 86 inch displays, 136.4 kg capacity, VESA up to 860 x 480 mm, rail for left-right shift, open wall plate for cables
ModelWall Mounts (IFPI-19X)
TypeWall Mount
Display
Supported Screen Sizes55 inch to 86 inch
Physical
AdjustabilityHeight and tilt, with left-right rail shift
ColorBlack
DimensionsBracket A 500 x 36.5 x 32.6 mm (L x W x H); Bracket B 895 x 261 x 19.5 mm (L x W x H)
Load Capacity136.4 kg (300 lbs)
MaterialCold rolled steel sheet SPCC
MountingWall plate, panel offset 2.5 inches (63.5 mm) from wall
VESA MountUp to 860 x 480 mm
Weight3.75 kg
Downloads
Manufacturer documents for the Newline IFPI-19X Wall Mount for Interactive Displays – IFPI-19X — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which Newline display sizes does the IFPI-19X fit?
The IFPI-19X supports Newline interactive displays from 55 to 86 inches, including 55, 65, 70, 75, 80 and 86-inch sizes. The bracket is rated for up to 136.4 kg (300 lbs). Check the display's VESA pattern against the 860 x 480 mm maximum before ordering.
Is the IFPI-19X compatible with VESA mounts?
Yes. The mount is compatible with VESA hole patterns up to 860 x 480 mm (33.86 x 18.89 inches). Confirm that the display's rear pattern falls within that size before installation.
How far does the IFPI-19X stand from the wall?
The manufacturer states that the panel sits 2.5 inches from the wall when mounted. The rail design lets the panel shift left and right for placement, and the height and tilt can be adjusted.
Can I buy the IFPI-19X in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
