Newline IFPI-19X Wall Mount for Interactive Displays – IFPI-19X
The Newline IFPI-19X is a wall mount for Newline interactive displays from 55 to 86 inches. It has a rated capacity of 136.4 kg (300 lbs), VESA compatibility up to 860 x 480 mm and a panel offset of 2.5 inches from the wall. Procure.ae supplies the IFPI-19X in the UAE, with quotes, delivery and installation.

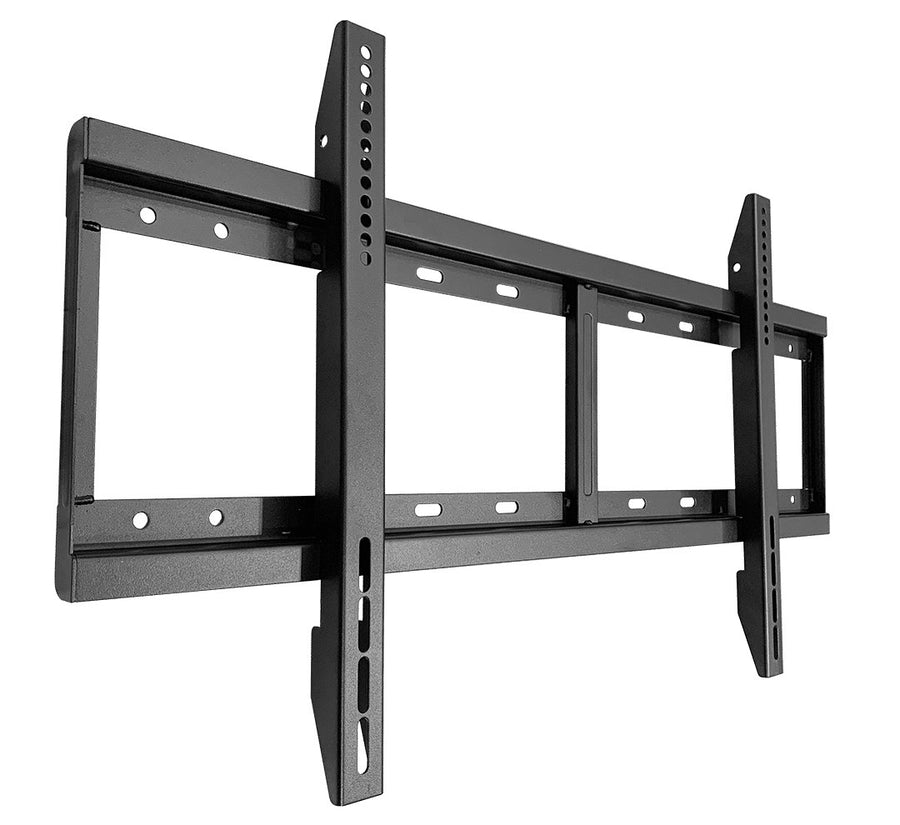

The IFPI-19X uses a black cold-rolled steel mount in two parts. Bracket B locks to the wall and Bracket A attaches to the display, and a rail lets the panel shift left and right for placement. The manufacturer states that the mount supports panels from 55 to 86 inches and allows height and tilt adjustment. The open wall plate leaves space to route cables behind the display.
Key features
Specifications
| Key Features | Supports 55 to 86 inch displays, 136.4 kg capacity, VESA up to 860 x 480 mm, rail for left-right shift, open wall plate for cables |
| Model | Wall Mounts (IFPI-19X) |
| Type | Wall Mount |
| Supported Screen Sizes | 55 inch to 86 inch |
| Adjustability | Height and tilt, with left-right rail shift |
| Color | Black |
| Dimensions | Bracket A 500 x 36.5 x 32.6 mm (L x W x H); Bracket B 895 x 261 x 19.5 mm (L x W x H) |
| Load Capacity | 136.4 kg (300 lbs) |
| Material | Cold rolled steel sheet SPCC |
| Mounting | Wall plate, panel offset 2.5 inches (63.5 mm) from wall |
| VESA Mount | Up to 860 x 480 mm |
| Weight | 3.75 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
