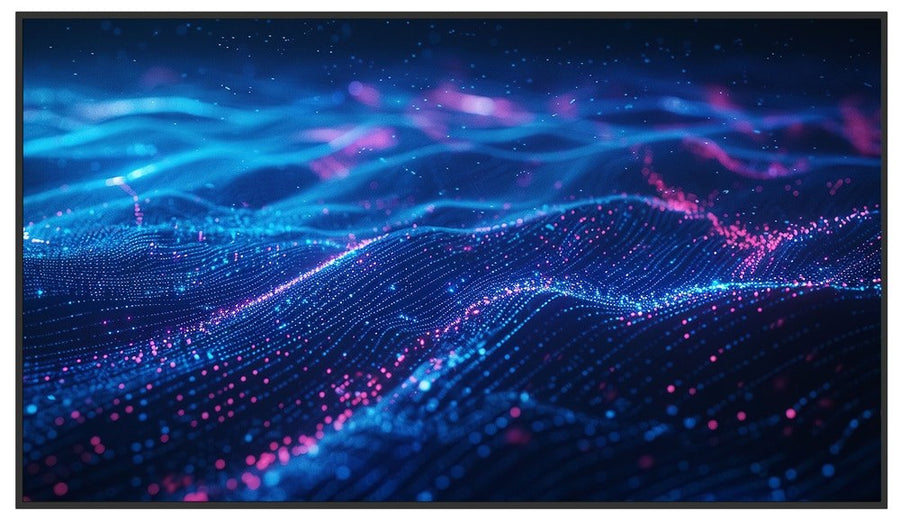

Newline DSX Series 86-inch Digital Signage Display – DSX

The Newline DSX 86-inch is an 86-inch 4K UHD digital signage display in the DSX Series, listed for 24/7 operation with 700 nits of brightness. It suits corporate lobbies, retail and information signage. Procure.ae supplies the Newline DSX 86-inch across the UAE, with quotes, delivery and installation.

The Newline DSX 86-inch is a 3840 x 2160 (4K UHD) display with a 16:9 aspect ratio, 700 nits of brightness and a 5,000:1 contrast ratio. It shows 1.07 billion colours at a 60 Hz refresh rate, with a 6.5 ms response time and a 178° viewing angle. The manufacturer rates the display lifetime at 50,000 hours, and the Direct LED backlight is listed for 24 hours a day, seven days a week.

The DSX Series runs Android 14 on an octa-core processor with 4 GB of RAM and 32 GB of storage, with Wi-Fi 6 and Bluetooth 5.2. Rear ports include two HDMI inputs, one HDMI output, a USB-C port with 15 W full-function Alt mode, a USB 3.0 Android port, S/PDIF and line outputs, two RS232C serial ports and a 1000M LAN input. The VESA pattern and weight change with each size in the series, so confirm the 86-inch mounting details with Procure.ae before installation.
