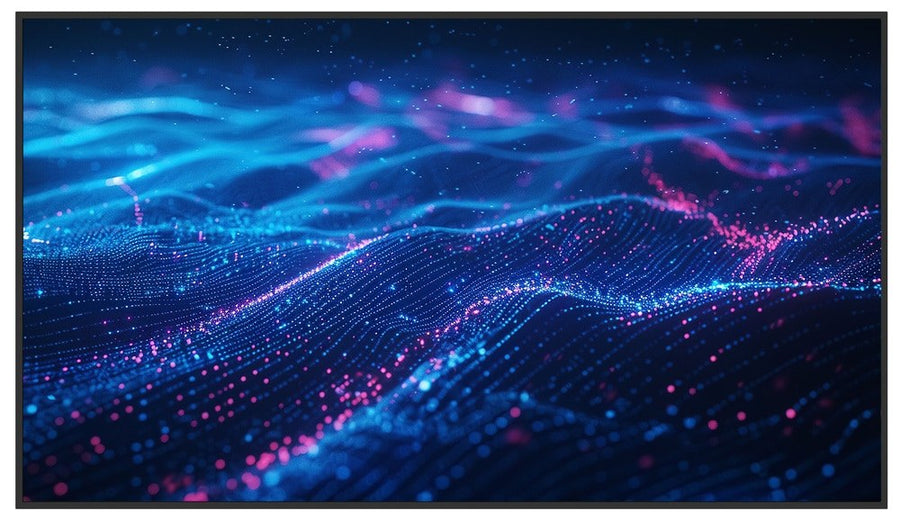

Newline DSX Series 86-inch Digital Signage Display – DSX
The Newline DSX 86-inch is an 86-inch 4K UHD digital signage display in the DSX Series, listed for 24/7 operation with 700 nits of brightness. It suits corporate lobbies, retail and information signage. Procure.ae supplies the Newline DSX 86-inch across the UAE, with quotes, delivery and installation.
The Newline DSX 86-inch is a 3840 x 2160 (4K UHD) display with a 16:9 aspect ratio, 700 nits of brightness and a 5,000:1 contrast ratio. It shows 1.07 billion colours at a 60 Hz refresh rate, with a 6.5 ms response time and a 178° viewing angle. The manufacturer rates the display lifetime at 50,000 hours, and the Direct LED backlight is listed for 24 hours a day, seven days a week.
The DSX Series runs Android 14 on an octa-core processor with 4 GB of RAM and 32 GB of storage, with Wi-Fi 6 and Bluetooth 5.2. Rear ports include two HDMI inputs, one HDMI output, a USB-C port with 15 W full-function Alt mode, a USB 3.0 Android port, S/PDIF and line outputs, two RS232C serial ports and a 1000M LAN input. The VESA pattern and weight change with each size in the series, so confirm the 86-inch mounting details with Procure.ae before installation.
Key features
Specifications
| Application | Digital signage |
| Key Features | Direct LED backlight, 4K UHD, 700 nits, 24/7 operation, Android 14, 2 x 15 W speakers, 50,000-hour display lifetime, RS232C and LAN ports |
| Model | 86" DSX |
| Type | Digital Signage Display |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED |
| Brightness | 700 nits |
| Contrast Ratio | 5,000:1 |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6.5 ms |
| Screen Size | 86 inch |
| Viewing Angle | 178° |
| Graphics | Mali-G52 MC3 |
| Operating System | Android 14 |
| Processor | Octa-core (4 x A72 + 4 x A53) |
| RAM | 4 GB |
| Storage | 32 GB |
| Impedance | 6 Ω |
| Speaker Output | 2 x 15 W |
| Bluetooth | Bluetooth 5.2 |
| Ports | HDMI In × 2, HDMI Out × 1, USB-C × 1 (15 W, full-function Alt), USB 3.0 × 1, S/PDIF Out × 1, Line Out × 1, RS232C × 2, LAN In (1000M) × 1 |
| Wi-Fi | Wi-Fi 6 |
| Standby Power | 0.5 W |
| Duty Cycle | 24/7 |
| Operating Humidity | 0% to 90% RH |
| Operating Temperature | 0 to 40 °C |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
