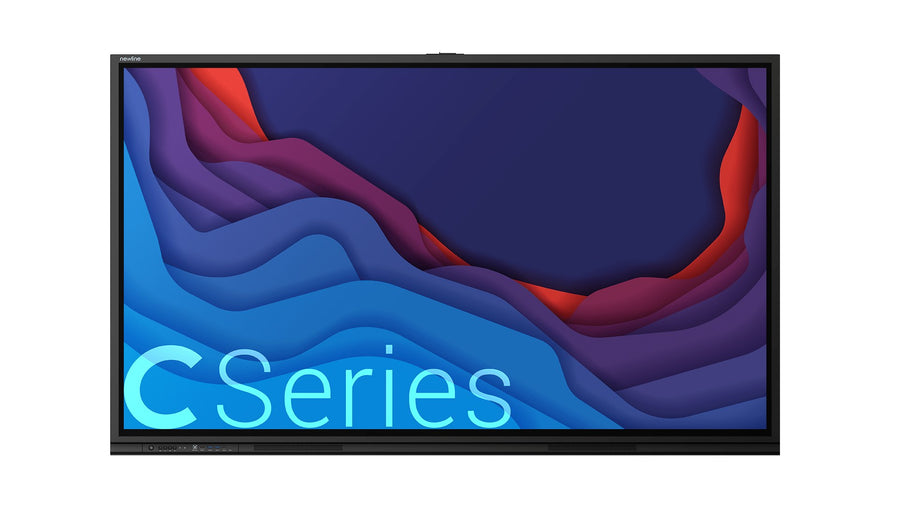

Newline C Series 75-inch Interactive Flat Panel – TT-7523C

The Newline C Series 75-inch (model TT-7523C) is a 75-inch 4K interactive flat panel with 40-point Windows touch, 450 nits brightness and plug-and-play USB-C connectivity. It suits classrooms and meeting rooms that want a display ready to use with a connected laptop or PC. Procure.ae supplies the Newline C Series 75-inch across the UAE.

The C Series 75-inch has a 3840 x 2160 (4K UHD) direct LED display with 450 nits brightness, a 4,000:1 contrast ratio, 178 degree viewing angles and a 5 ms response time. Stellar Touch Technology provides 40 touch points on Windows and 20 on Android, macOS and Linux, with ±1 mm accuracy and two passive styluses. One USB Type-C cable carries video, touch, audio, data and power from a connected device. Two 15 W speakers face forward.

The panel has no built-in operating system. Its OPS slot takes an embedded PC, which the manufacturer describes as a way to bring Windows directly onto the display. Mounting uses an 800 x 400 mm VESA pattern. The 75-inch measures 1735 x 1048 x 111 mm without wall mount and weighs 50 kg. Standard-mode power draw is 116 W and standby is under 0.5 W. The rear ports include a VGA input, RS232, RJ45 in and out, SPDIF, audio line out and an OPS slot.
