NewlineInteractive Flat PanelsSKU 65" C Series

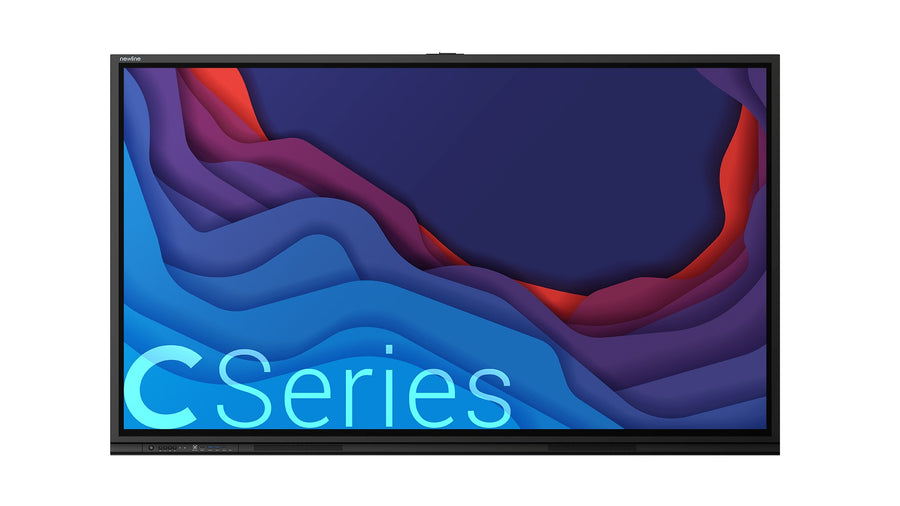

Newline C Series 65-inch 4K UHD Interactive Flat Panel – TT-6523C
The Newline C Series 65-inch (TT-6523C) is a 4K UHD interactive flat panel for classrooms and team collaboration. A single USB Type-C cable carries audio, video, power, data and touch, and the panel supports 40 touch points on Windows. Procure.ae supplies it across the UAE.
The C Series 65-inch has a 3840 x 2160 (4K) direct LED display with 450 nits brightness, a 4,000:1 contrast ratio, a 5 ms response time and 178-degree viewing angles, with 1.07 billion colours. Stellar Touch technology supports 40 touch points on Windows and 20 on Android, macOS and Linux, with passive pen, finger or fist input and ±1 mm accuracy. Two front-facing speakers rated at 15 W each provide sound. The anti-glare glass has 7 Mohs surface hardness and a 9H pencil rating.
Plug-and-play USB Type-C connects one cable for audio, video, power, data and touch. The panel has three HDMI 2.0 inputs (one front, two rear), a front USB Type-C port, RJ45 Gigabit, RS232, VGA In, an OPS slot for an embedded OPS PC, and a 3.5 mm microphone input. It mounts on a 600 x 400 mm VESA pattern and weighs 38.5 kg net. Procure.ae provides delivery, installation and free training across the UAE.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Stellar Touch Technology
- Plug-and-play USB Type-C
- 40-point Windows touch
- Paper-like writing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Plug-and-play USB Type-C
One cable carries audio, video, power, data and touch.
02
40-point Windows touch
Supports 40 touch points on Windows and 20 on Android, macOS and Linux.
03
Paper-like writing
Passive pen, finger and fist input with ±1 mm accuracy.
04
4K UHD display
3840 x 2160 resolution, 450 nits brightness and a 4,000:1 contrast ratio.
05
Built-in speakers
Two front-facing speakers rated at 15 W each.
06
Zero-bonding glass
Certified zero bonding with anti-glare glass.
07
OPS slot
Accepts an embedded OPS PC to bring Windows directly to the display.
08
Mounting
600 x 400 mm VESA pattern; 1513 x 923 x 110 mm (W x H x D).
Specifications
26 specificationsGeneral
Key FeaturesPlug-and-play USB Type-C, 40-point Windows touch, passive pen and finger input, paper-like writing, built-in 15 W x 2 speakers, zero-bonding glass, OPS slot
Model65" C Series
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness450 nits
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size65 inch
Touch Accuracy±1 mm
Touch Points40-point (Windows) / 20-point (Android, macOS, Linux) multi-touch
Touch TechnologyStellar Touch Technology
Viewing Angle178°
Performance
Operating SystemNo built-in OS
ProcessorArm Cortex-A55 x 4
RAM2 GB
Storage8 GB
Audio
Speaker Output15 W x 2
Connectivity
PortsHDMI In 2.0 × 3, USB Type-C × 1, USB 3.0 Type-A × 2, USB 2.0 Type-A × 3, USB Type-B touch × 2, RJ45 Gigabit × 1, RS232 × 1, VGA In × 1, OPS slot × 1, S/PDIF × 1, Audio line out × 1, Mic in × 1
Power
Power Consumption91 W (standard mode)
Standby Power< 0.5 W
Physical
Dimensions1513 x 923 x 110 mm
Surface ProtectionAnti-glare glass, 7 Mohs hardness, 9H pencil
VESA Mount600 x 400 mm
Weight38.5 kg
Downloads
Manufacturer documents for the Newline C Series 65-inch 4K UHD Interactive Flat Panel – TT-6523C — datasheets, manuals, drawings and certificates.
- Datasheet – C Series – C23 Specsheet Newline EN Web
- Datasheet – C Series – CSeries(C23) EDLA Set Specsheet Newline EN Web
- Datasheet – C Series – CSeriesC23 EDLA Set Specsheet Newline EN
- Brochure – C Series
- User manual – C Series – 720310106A-说明书 C23 9666 newline 英文
- User manual – C Series – C23 UserManualExtended Newline EN
- User manual – C Series – C23 UserManual Newline EN
Questions
Can’t find your answer? Ask on WhatsApp
What is the Newline C Series 65-inch used for?
It is an interactive flat panel for teaching and teamwork. Newline designs the C Series to be easy to use, with a 4K display, 40-point touch on Windows and built-in speakers, so teachers and teams can start working without a long setup.
Does it have a built-in operating system?
No. The C Series 65-inch has no built-in operating system. It connects to a computer or device through USB Type-C or HDMI, and it has an OPS slot for an embedded OPS PC if an all-in-one setup is needed.
Does it support touch on Mac and Linux?
Yes. It supports 20 touch points on Android, macOS and Linux, and 40 touch points on Windows. Passive pen, finger and fist input all work on the surface, with ±1 mm touch accuracy.
Can it be wall mounted?
Yes. It uses a 600 x 400 mm VESA pattern. The display measures 1513 x 923 x 110 mm and weighs 38.5 kg net, so the mount must be rated for that load. Procure.ae provides installation across the UAE.
Does it have speakers and a microphone input?
Yes. Two front-facing speakers are rated at 15 W each, and a 3.5 mm microphone input is on the front I/O. Both features are built into the panel, so no separate speaker is needed for basic classroom or meeting audio.
