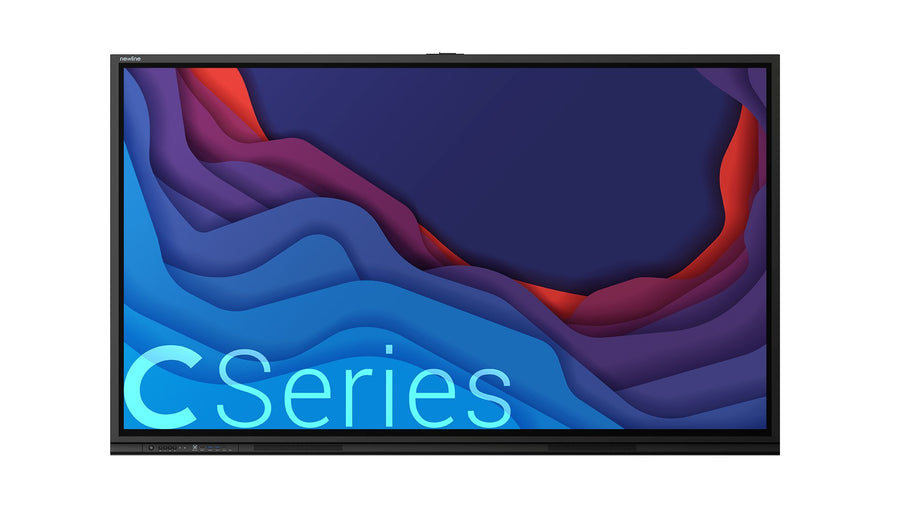

Newline C Series 65-inch 4K UHD Interactive Flat Panel – TT-6523C

The Newline C Series 65-inch (TT-6523C) is a 4K UHD interactive flat panel for classrooms and team collaboration. A single USB Type-C cable carries audio, video, power, data and touch, and the panel supports 40 touch points on Windows. Procure.ae supplies it across the UAE.

The C Series 65-inch has a 3840 x 2160 (4K) direct LED display with 450 nits brightness, a 4,000:1 contrast ratio, a 5 ms response time and 178-degree viewing angles, with 1.07 billion colours. Stellar Touch technology supports 40 touch points on Windows and 20 on Android, macOS and Linux, with passive pen, finger or fist input and ±1 mm accuracy. Two front-facing speakers rated at 15 W each provide sound. The anti-glare glass has 7 Mohs surface hardness and a 9H pencil rating.

Plug-and-play USB Type-C connects one cable for audio, video, power, data and touch. The panel has three HDMI 2.0 inputs (one front, two rear), a front USB Type-C port, RJ45 Gigabit, RS232, VGA In, an OPS slot for an embedded OPS PC, and a 3.5 mm microphone input. It mounts on a 600 x 400 mm VESA pattern and weighs 38.5 kg net. Procure.ae provides delivery, installation and free training across the UAE.

Screen Size

65 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

450 nits

Touch Technology

Stellar Touch Technology

Type

Interactive Flat Panel

Weight

38.5 kg

Key features

Plug-and-play USB Type-C

One cable carries audio, video, power, data and touch.

40-point Windows touch

Supports 40 touch points on Windows and 20 on Android, macOS and Linux.

Paper-like writing

Passive pen, finger and fist input with ±1 mm accuracy.

4K UHD display

3840 x 2160 resolution, 450 nits brightness and a 4,000:1 contrast ratio.

Built-in speakers

Two front-facing speakers rated at 15 W each.

Zero-bonding glass

Certified zero bonding with anti-glare glass.

OPS slot

Accepts an embedded OPS PC to bring Windows directly to the display.

Mounting

600 x 400 mm VESA pattern; 1513 x 923 x 110 mm (W x H x D).

Specifications

General
Key Features	Plug-and-play USB Type-C, 40-point Windows touch, passive pen and finger input, paper-like writing, built-in 15 W x 2 speakers, zero-bonding glass, OPS slot
Model	65" C Series
Type	Interactive Flat Panel

Display
Aspect Ratio	16:9
Backlight	Direct LED
Brightness	450 nits
Contrast Ratio	4,000:1
Resolution	3840 x 2160 (4K UHD)
Response Time	5 ms
Screen Size	65 inch
Touch Accuracy	±1 mm
Touch Points	40-point (Windows) / 20-point (Android, macOS, Linux) multi-touch
Touch Technology	Stellar Touch Technology
Viewing Angle	178°

Performance
Operating System	No built-in OS
Processor	Arm Cortex-A55 x 4
RAM	2 GB
Storage	8 GB

Audio
Speaker Output	15 W x 2

Connectivity
Ports	HDMI In 2.0 × 3, USB Type-C × 1, USB 3.0 Type-A × 2, USB 2.0 Type-A × 3, USB Type-B touch × 2, RJ45 Gigabit × 1, RS232 × 1, VGA In × 1, OPS slot × 1, S/PDIF × 1, Audio line out × 1, Mic in × 1

Power
Power Consumption	91 W (standard mode)
Standby Power	< 0.5 W

Physical
Dimensions	1513 x 923 x 110 mm
Surface Protection	Anti-glare glass, 7 Mohs hardness, 9H pencil
VESA Mount	600 x 400 mm
Weight	38.5 kg
