NewlineInteractive Flat PanelsSKU 86" Q Pro

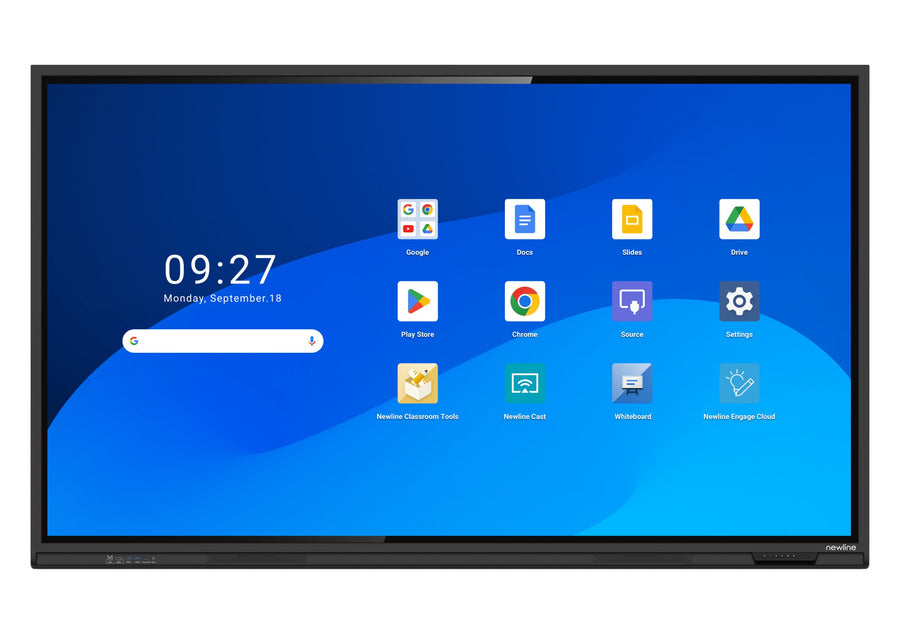

Newline Q Pro 86-inch 4K Interactive Flat Panel – TT-8623QA
The Newline Q Pro 86-inch (TT-8623QA) is a 4K interactive flat panel with Google EDLA certification for classrooms and meeting rooms. It runs Android 14, supports 20-point touch on Android and 40-point touch on Windows, and offers 400 cd/m² brightness. Procure.ae supplies the Q Pro 86-inch in the UAE.
The Q Pro uses a DLED backlight behind anti-glare, anti-fingerprint and antimicrobial tempered glass, with infrared touch and a response time under 4 ms. An octa-core processor with 8 GB RAM and 64 GB storage runs Android 14, with access to Google Play and Google Workspace apps for lesson plans, assignments and quizzes. Wi-Fi 6 and Bluetooth 5.2 are built in. The display area measures 1895 x 1066 mm, with 1.07 billion colours and a 178° viewing angle.
The Q Pro 86-inch suits classrooms and training rooms where presenters move between Android apps and a PC. The front ports include USB-C with 65 W power delivery, two USB 3.0 Type-A ports, HDMI In and a microphone input. The rear panel adds DisplayPort, HDMI Out, RS232, RJ45 LAN in and out, SPDIF, audio line out and an OPS slot for an on-board computer. The panel mounts on a wall or a mobile stand, and the series is also made in 55-, 65-, 75- and 98-inch sizes.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- Google EDLA certified
- 4K UHD resolution
- Infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Android 14 with access to Google Play and Google Workspace apps.
02
4K UHD resolution
3840 x 2160 on an 86-inch panel at 400 cd/m² brightness.
03
Infrared touch
20 touch points on Android and 40 on Windows, with response under 4 ms.
04
Anti-glare glass
anti-glare, anti-fingerprint and antimicrobial tempered glass with 8H hardness.
05
65 W USB-C power
front port with 65 W power delivery alongside video and touch connections.
06
Built-in OPS slot
one slot for an on-board computer module.
07
Wi-Fi 6 and Bluetooth 5.2
built-in wireless connectivity for the Android system.
08
Two 20 W speakers
bottom-front speakers rated at 20 W maximum each.
Specifications
33 specificationsGeneral
Key FeaturesGoogle EDLA certification, Android 14, 4K UHD, 20/40-point touch, DLED backlight, Wi-Fi 6, OPS slot, 65 W USB-C PD
Model86" Q Pro
TypeInteractive Flat Panel
Display
BacklightDLED
Brightness400 nits
Color Depth1.07 billion colours
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typ.)
Screen Size86 inch
Touch Points20 (Android) / 40 (Windows)
Touch Response Time<4 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 14
ProcessorOcta-core ARM Cortex-A73 x4 + A53 x4
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C; 0% to 90% RH (non-condensing)
Audio
Speaker ConfigurationBottom-front, 2 speakers
Speaker Output20 W x 2 (max)
Connectivity
BluetoothBluetooth 5.2
OPS Slot1 OPS slot
PortsHDMI In × 3, USB Type-B touch × 4, USB Type-A × 5, USB-C × 2, DisplayPort × 1, HDMI Out × 1, RS232 × 1, RJ45 LAN in/out × 1
USB-C Ports2 (front 65 W PD, rear without PD)
Wi-FiWi-Fi 6
Power
Standby Power<0.5 W
Physical
Dimensions1981 x 1191 x 102 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, antimicrobial tempered glass, 8H
Weight63 kg
Compliance
CertificationsGoogle EDLA certified
Downloads
Manufacturer documents for the Newline Q Pro 86-inch 4K Interactive Flat Panel – TT-8623QA — datasheets, manuals, drawings and certificates.
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-20260320-compressesd
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-Ver
- User manual – Q Pro Series
- Quick start guide – Q Pro Series
- Drawing – Q Pro Series – Q-Pro-55-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-65-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-75-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-86-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-98-Dimensional-Drawings
- Q-Pro-Series-Cheat-Sheet
Questions
Can’t find your answer? Ask on WhatsApp
Does the Q Pro 86-inch run Android?
Yes. The Q Pro series runs Android 14 with Google EDLA certification, so teachers can use Google Play apps and Google Workspace apps directly on the panel. The 86-inch model has 8 GB RAM and 64 GB storage.
Does it support Windows touch?
Yes. The panel supports 40 touch points when used with Windows and 20 touch points on Android. The rear USB Type-B touch ports connect a PC for touch input, and the OPS slot accepts an on-board computer.
Can it be wall-mounted?
Yes. The manufacturer lists wall-mounted or mobile stand installation for the Q Pro series. The 86-inch model weighs 63 kg net, so use a bracket and wall structure rated for that weight. Procure.ae can arrange delivery and installation across the UAE.
How many HDMI inputs does it have?
It has three HDMI IN 2.0 inputs, with one on the front and two at the rear. An HDMI OUT 2.0 port passes the signal on to another display, and a DisplayPort 1.2 input is also available at the rear for laptops and PCs.
Does it have a camera or microphone?
The front has a microphone input. A camera module is optional, with an 8 MP sensor, 4K at 30 Hz and a 120-degree field of view, and it is not part of the standard panel.
Can I buy the TT-8623QA in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
