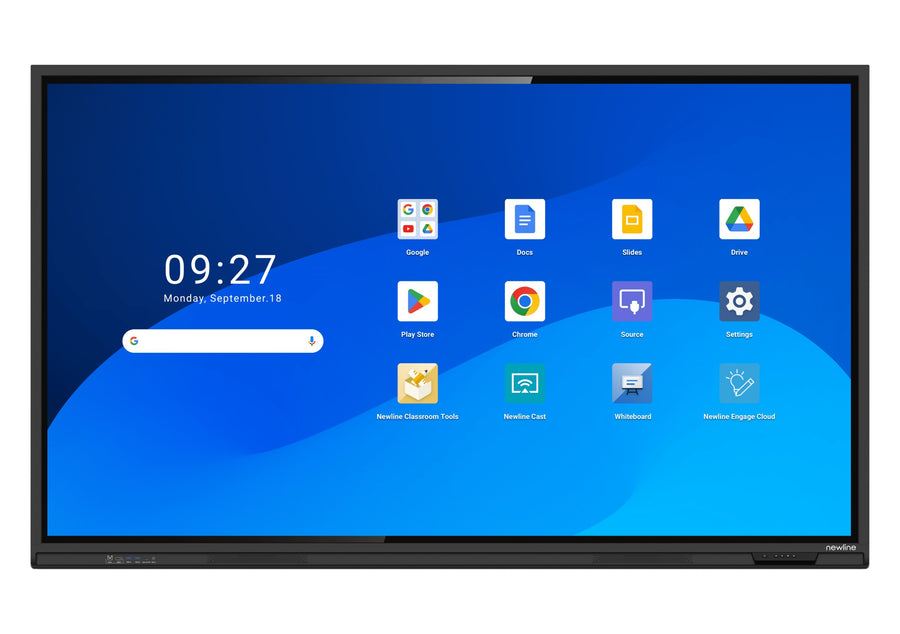

Newline Q Pro 86-inch 4K Interactive Flat Panel – TT-8623QA
The Newline Q Pro 86-inch (TT-8623QA) is a 4K interactive flat panel with Google EDLA certification for classrooms and meeting rooms. It runs Android 14, supports 20-point touch on Android and 40-point touch on Windows, and offers 400 cd/m² brightness. Procure.ae supplies the Q Pro 86-inch in the UAE.
The Q Pro uses a DLED backlight behind anti-glare, anti-fingerprint and antimicrobial tempered glass, with infrared touch and a response time under 4 ms. An octa-core processor with 8 GB RAM and 64 GB storage runs Android 14, with access to Google Play and Google Workspace apps for lesson plans, assignments and quizzes. Wi-Fi 6 and Bluetooth 5.2 are built in. The display area measures 1895 x 1066 mm, with 1.07 billion colours and a 178° viewing angle.
The Q Pro 86-inch suits classrooms and training rooms where presenters move between Android apps and a PC. The front ports include USB-C with 65 W power delivery, two USB 3.0 Type-A ports, HDMI In and a microphone input. The rear panel adds DisplayPort, HDMI Out, RS232, RJ45 LAN in and out, SPDIF, audio line out and an OPS slot for an on-board computer. The panel mounts on a wall or a mobile stand, and the series is also made in 55-, 65-, 75- and 98-inch sizes.
Key features
Specifications
| Key Features | Google EDLA certification, Android 14, 4K UHD, 20/40-point touch, DLED backlight, Wi-Fi 6, OPS slot, 65 W USB-C PD |
| Model | 86" Q Pro |
| Type | Interactive Flat Panel |
| Backlight | DLED |
| Brightness | 400 nits |
| Color Depth | 1.07 billion colours |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typ.) |
| Screen Size | 86 inch |
| Touch Points | 20 (Android) / 40 (Windows) |
| Touch Response Time | <4 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Operating System | Android 14 |
| Processor | Octa-core ARM Cortex-A73 x4 + A53 x4 |
| RAM | 8 GB |
| Storage | 64 GB |
| Storage Conditions | -20 to 60 °C; 0% to 90% RH (non-condensing) |
| Speaker Configuration | Bottom-front, 2 speakers |
| Speaker Output | 20 W x 2 (max) |
| Bluetooth | Bluetooth 5.2 |
| OPS Slot | 1 OPS slot |
| Ports | HDMI In × 3, USB Type-B touch × 4, USB Type-A × 5, USB-C × 2, DisplayPort × 1, HDMI Out × 1, RS232 × 1, RJ45 LAN in/out × 1 |
| USB-C Ports | 2 (front 65 W PD, rear without PD) |
| Wi-Fi | Wi-Fi 6 |
| Standby Power | <0.5 W |
| Dimensions | 1981 x 1191 x 102 mm |
| Mounting | Wall-mounted or mobile stand |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | Anti-glare, anti-fingerprint, antimicrobial tempered glass, 8H |
| Weight | 63 kg |
| Certifications | Google EDLA certified |
