NECInteractive Flat PanelsSKU V801 IRT

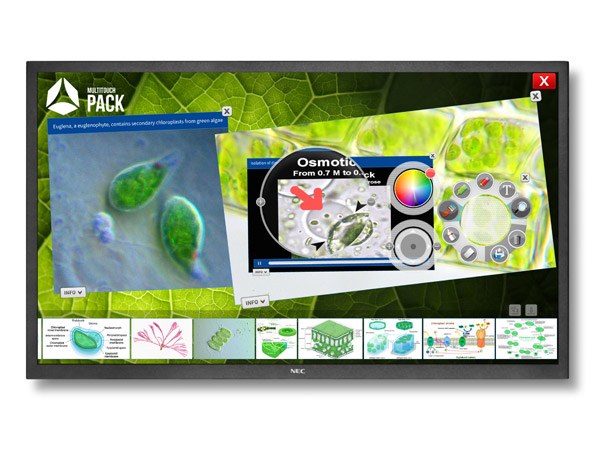

NEC MultiSync V Series 80-inch Interactive Flat Panel – V801 IRT
The NEC V801 IRT is an 80-inch Full HD interactive flat panel for interactive whiteboard use in meeting rooms and classrooms, with infrared touch for up to six simultaneous touch points. It has a 1920 x 1080 display and an OPS slot for a slot-in PC. Procure.ae supplies the NEC V801 IRT in the UAE, with quotes and installation.
The V801 IRT uses a UV²A panel with an edge LED backlight, a 5000:1 typical contrast ratio and a 176-degree viewing angle. Its infrared Cell Imaging touch supports real multi-touch with up to six simultaneous touches for finger, gloved hand and stylus input. Static object detection recognises the size of an object so the display can respond to it. The touch system is calibration-free, with no drift from alignment or temperature changes, and the 5 mm toughened glass has a single-sided anti-reflective coating.
The V801 IRT fits corporate meeting rooms and classrooms that run interactive whiteboard applications. Its STv2 option slot, compatible with the Intel and NEC OPS standards, takes a slot-in PC without external cables. Native multi-touch runs on Windows 7, Windows 8, Linux and Android, and the free NaViSet Administrator 2 manages connected displays from one location. The panel mounts on a 400 x 400 mm VESA pattern.
Screen Size
80 inch
Resolution
1920 x 1080 (Full HD)
Brightness
320 nits (shipping), 460 nits maximum
Touch Technology
Infrared (Cell Imaging)
- Six-point infrared touch
- Calibration-free touch
- Object detection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Six-point infrared touch
Cell Imaging infrared touch supports real multi-touch with up to 6 simultaneous touch points.
02
Calibration-free touch
The touch system needs no recalibration, with no drift from mechanical alignment or temperature changes.
03
Object detection
Static object detection and rejection recognises the size of an object and responds accordingly.
04
OPS slot expansion
STv2 slot, compatible with the Intel and NEC OPS standards, takes a slot-in PC without external cables.
05
Full HD display
1920 x 1080 native resolution at 60 Hz, with 320 nits shipping brightness and 460 nits maximum.
06
Protective glass
5 mm premium toughened glass with single-sided anti-reflective coating and 92% light transmission.
07
Management features
NaViSet Administrator 2, DICOM support, scheduler, PIN theft protection and TileMatrix up to 10 x 10.
08
3-year warranty
Warranty of 3 years including the backlight, rated for 16/7 operation.
Specifications
35 specificationsGeneral
ControlsLAN with SNMP, infrared remote control, RS-232C, scheduler
Key FeaturesSix-point infrared touch, calibration-free, object rejection, OPS slot, NaViSet Administrator 2, DICOM support, PIN theft protection, 3-year warranty
ModelV801 IRT
TypeInteractive Flat Panel
What's in the BoxCD-ROM with user guides and touch drivers, display, DVI-D cable, external power supply, power cable, remote control, USB cable
Display
Aspect Ratio16:9
BacklightEdge LED
Brightness320 nits (shipping), 460 nits maximum
Contrast Ratio5,000:1 (typical)
Panel TechnologyUV²A
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6 ms (grey-to-grey)
Screen Size80 inch
Touch Points6-point multi-touch
Touch Response TimeApproximately 61 ms (up to 200 fps)
Touch TechnologyInfrared (Cell Imaging)
Viewing Angle176° horizontal / 176° vertical
Performance
Operating SystemNative multi-touch: Windows 7, Windows 8, Linux, Android
Storage Conditions-20 to 60 °C; 10% to 90% RH
Audio
AudioIntegrated 10 W + 10 W speakers; optional 15 W + 15 W
Connectivity
ExpansionIntel / NEC OPS slot (STv2); TileMatrix up to 10 x 10
InputsDisplayPort × 1, DVI-D × 1, HDMI 1.3 × 1, D-sub 15-pin × 1, composite and component (BNC), 3.5 mm audio
OPS SlotSTv2 (compatible with Intel / NEC OPS)
OutputsDVI-D (with HDCP) × 1, RS232 × 1, 3.5 mm audio
Power
Power Consumption230 W (shipping); 420 W maximum with built-in PC
Standby PowerLess than 0.5 W (ECO standby); less than 1 W
Physical
Dimensions1838 x 1074 x 100.5 mm (without stand)
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Surface Protection5 mm premium toughened glass, single-sided anti-reflective coating, 92% light transmission
VESA Mount400 x 400 mm
Weight90 kg (without stand)
Compliance
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync V Series 80-inch Interactive Flat Panel – V801 IRT — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the NEC V801 IRT size and resolution?
The NEC V801 IRT is an 80-inch display with a native 1920 x 1080 resolution at 60 Hz and a 16:9 aspect ratio. It supports PC resolutions up to 1600 x 1200 on digital and analogue inputs and can be used in landscape or portrait orientation. Its brightness is 320 nits at shipping settings and 460 nits maximum.
How many touch points does the V801 IRT support?
Yes. It supports real multi-touch with up to six simultaneous touches. Infrared Cell Imaging touch works with a finger, gloved hand or stylus, and it is calibration-free. Native multi-touch runs on Windows 7, Windows 8, Linux and Android, with an average touch sample rate of approximately 61 ms.
Can the V801 IRT run a slot-in PC?
Yes. Its STv2 option slot is compatible with the Intel and NEC OPS standards, so a slot-in PC can be added without external cables. Power consumption is 230 W in shipping settings and up to 420 W with a built-in PC at 100% workload.
Can the V801 IRT be wall mounted?
Yes. It has four VESA holes at 400 x 400 mm with M8 fixings. The panel weighs 90 kg without its stand, so confirm that the wall structure and mounting hardware are rated for that load before installation. Feet (ST-801) are listed as an optional accessory.
Does the V801 IRT work with management software?
Yes. NaViSet Administrator 2 can manage connected displays from one central location, and the manufacturer lists a free download of the software. The display also supports a scheduler, screen saver functions, PIN theft protection and copying display settings over RS232.
Can I buy the V801 IRT in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
