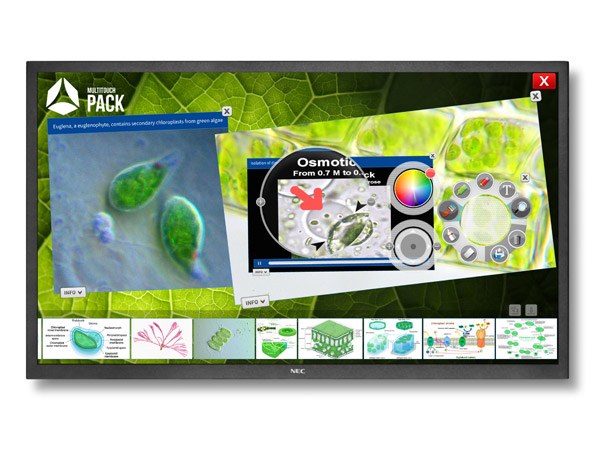

NEC MultiSync V Series 80-inch Interactive Flat Panel – V801 IRT
The NEC V801 IRT is an 80-inch Full HD interactive flat panel for interactive whiteboard use in meeting rooms and classrooms, with infrared touch for up to six simultaneous touch points. It has a 1920 x 1080 display and an OPS slot for a slot-in PC. Procure.ae supplies the NEC V801 IRT in the UAE, with quotes and installation.
The V801 IRT uses a UV²A panel with an edge LED backlight, a 5000:1 typical contrast ratio and a 176-degree viewing angle. Its infrared Cell Imaging touch supports real multi-touch with up to six simultaneous touches for finger, gloved hand and stylus input. Static object detection recognises the size of an object so the display can respond to it. The touch system is calibration-free, with no drift from alignment or temperature changes, and the 5 mm toughened glass has a single-sided anti-reflective coating.
The V801 IRT fits corporate meeting rooms and classrooms that run interactive whiteboard applications. Its STv2 option slot, compatible with the Intel and NEC OPS standards, takes a slot-in PC without external cables. Native multi-touch runs on Windows 7, Windows 8, Linux and Android, and the free NaViSet Administrator 2 manages connected displays from one location. The panel mounts on a 400 x 400 mm VESA pattern.
Key features
Specifications
| Controls | LAN with SNMP, infrared remote control, RS-232C, scheduler |
| Key Features | Six-point infrared touch, calibration-free, object rejection, OPS slot, NaViSet Administrator 2, DICOM support, PIN theft protection, 3-year warranty |
| Model | V801 IRT |
| Type | Interactive Flat Panel |
| What's in the Box | CD-ROM with user guides and touch drivers, display, DVI-D cable, external power supply, power cable, remote control, USB cable |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Brightness | 320 nits (shipping), 460 nits maximum |
| Contrast Ratio | 5,000:1 (typical) |
| Panel Technology | UV²A |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 6 ms (grey-to-grey) |
| Screen Size | 80 inch |
| Touch Points | 6-point multi-touch |
| Touch Response Time | Approximately 61 ms (up to 200 fps) |
| Touch Technology | Infrared (Cell Imaging) |
| Viewing Angle | 176° horizontal / 176° vertical |
| Operating System | Native multi-touch: Windows 7, Windows 8, Linux, Android |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH |
| Audio | Integrated 10 W + 10 W speakers; optional 15 W + 15 W |
| Expansion | Intel / NEC OPS slot (STv2); TileMatrix up to 10 x 10 |
| Inputs | DisplayPort × 1, DVI-D × 1, HDMI 1.3 × 1, D-sub 15-pin × 1, composite and component (BNC), 3.5 mm audio |
| OPS Slot | STv2 (compatible with Intel / NEC OPS) |
| Outputs | DVI-D (with HDCP) × 1, RS232 × 1, 3.5 mm audio |
| Power Consumption | 230 W (shipping); 420 W maximum with built-in PC |
| Standby Power | Less than 0.5 W (ECO standby); less than 1 W |
| Dimensions | 1838 x 1074 x 100.5 mm (without stand) |
| Duty Cycle | 16/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 5 mm premium toughened glass, single-sided anti-reflective coating, 92% light transmission |
| VESA Mount | 400 x 400 mm |
| Weight | 90 kg (without stand) |
| Warranty | 3 years (including backlight) |
