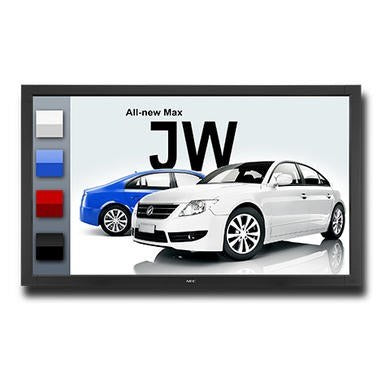

NEC MultiSync V Series 55-inch Interactive Flat Panel – V552-TM
The NEC MultiSync V552-TM (Infrared Touch) is a 55-inch interactive flat panel with a Full HD 1920 x 1080 display and infrared multi-touch for up to 6 simultaneous touches. It needs no touch driver or calibration on the host PC. Procure.ae supplies the NEC V552-TM in the UAE.
The NEC MultiSync V552-TM combines a 55-inch AMVA3 panel with edge LED backlighting, 450 cd/m² brightness, a 4,000:1 contrast ratio and a 6.5 ms grey-to-grey response. Infrared touch handles up to 6 touches from a finger, gloved hand or stylus, with accuracy under 2 mm and a 32767 x 32767 touch resolution. Fully tempered 4 mm glass with a double-sided anti-reflection coating gives 96% light transmission.
The display accepts HDMI 1.3, DisplayPort, DVI-D, D-sub 15-pin and BNC signals and passes video on through a DVI-D output. Touch uses a USB HID connection with native multi-touch on Windows 7 and 8, and single touch on Windows XP, Vista, Linux, Mac OS X and Android. An STv2 option slot is compatible with the Intel / NEC OPS standard for a slot-in PC. NEC lists a DICOM simulation feature for medical applications. This model is discontinued.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Touch Technology
Infrared
- Infrared multi-touch
- Driver-free operation
- Protective glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared multi-touch
Up to 6 simultaneous touches with a finger, gloves or a stylus, response time of 0 to 20 ms.
02
Driver-free operation
USB HID interface with no drivers, calibration or application software needed on the host PC.
03
Protective glass
4 mm fully tempered glass, double-sided anti-reflection, 96% light transmission and 2% reflection rate.
04
Wide connectivity
HDMI 1.3, DisplayPort, DVI-D, D-sub 15-pin and BNC inputs with a DVI-D output.
05
OPS-compatible slot
STv2 option slot for a slot-in PC (Intel Core i5/i7) or an HDBaseT receiver.
06
DICOM support
NEC lists DICOM simulation for medical image viewing applications.
07
Remote management
LAN with SNMP, RS-232C in and out, IR remote and a free LAN control software download.
08
Energy efficiency
ECO mode and ambient light sensor, energy efficiency class A at 139 kWh per year (4 hours daily use).
Specifications
42 specificationsGeneral
Key FeaturesInfrared multi-touch, 6 touches, driver-free USB HID, calibration-free, DICOM support, OPS-compatible slot, ambient light sensor
ModelV552-TM
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, power cable, remote control, USB cable, LAN control software (download)
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size41.4 mm
Brightness450 nits
Contrast Ratio4,000:1
Panel TechnologyVA (AMVA3)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6.5 ms (grey-to-grey)
Screen Size55 inch
Touch Accuracy< 2 mm
Touch Points6-point multi-touch
Touch Resolution32767 x 32767
Touch Response Time0 to 20 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemNative multi-touch on Windows 7 and 8; single touch on Windows XP, Vista, Linux, Mac OS X, Android
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio In3.5 mm jack × 1
Audio Out3.5 mm jack
Speaker Output10 W + 10 W
Connectivity
EthernetLAN 100 Mbit (SNMP)
InputsHDMI 1.3 × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1, BNC (RGBHV / component / composite)
OPS SlotSTv2 (compatible with Intel / NEC OPS standard)
OutputsDVI-D × 1
Serial PortRS-232C (9-pin D-sub), in and out
Power
Power Consumption96 W (ECO mode, shipment setting)
Standby Power< 0.5 W (ECO standby)
Physical
Dimensions1294.4 x 765.2 x 86.5 mm (without stand)
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Surface Protection4 mm fully tempered glass, double-sided anti-reflection (96% light transmission)
VESA Mount300 x 300 mm (FDMI), 4 holes, M6
Weight40.8 kg (without stand)
Compliance
CertificationsC-tick, CE, FCC Class B, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI
IP RatingIP40 (front), IP20 (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync V Series 55-inch Interactive Flat Panel – V552-TM — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the NEC MultiSync V552-TM support?
It supports real multi-touch with up to 6 touches using infrared touch technology. Input can come from a finger, a gloved hand or a stylus, with touch accuracy under 2 mm and a response time of 0 to 20 ms.
Does the V552-TM need touch drivers or calibration?
No. NEC describes the touch interface as driver-free and calibration-free, using the USB HID protocol. Native multi-touch is listed for Windows 7 and 8, and single touch for Windows XP, Windows Vista, Linux, Mac OS X and Android.
What brightness and resolution does the V552-TM have?
The 55-inch AMVA3 panel has a native resolution of 1920 x 1080 (Full HD) at 60 Hz. Brightness is 450 cd/m², with a 172 cd/m² setting at shipment in ECO mode, and the contrast ratio is 4,000:1.
Can I fit a PC inside the NEC V552-TM?
Yes. The display has an STv2 option slot that is compatible with the Intel / NEC OPS standard. NEC lists a slot-in PC (Intel Core i5/i7) and an HDBaseT receiver as options, so a computer can be added without external cables.
What are the VESA pattern and weight of the V552-TM?
The VESA pattern is 300 x 300 mm (FDMI) with 4 holes and M6 screws. Without the stand the display measures 1294.4 x 765.2 x 86.5 mm and weighs 40.8 kg. NEC lists feet, a speaker, trolleys and wall mounts as accessories.
