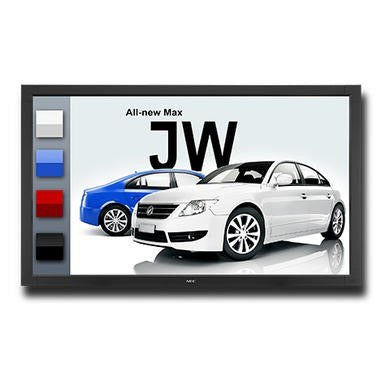

NEC MultiSync V Series 55-inch Interactive Flat Panel – V552-TM
The NEC MultiSync V552-TM (Infrared Touch) is a 55-inch interactive flat panel with a Full HD 1920 x 1080 display and infrared multi-touch for up to 6 simultaneous touches. It needs no touch driver or calibration on the host PC. Procure.ae supplies the NEC V552-TM in the UAE.
The NEC MultiSync V552-TM combines a 55-inch AMVA3 panel with edge LED backlighting, 450 cd/m² brightness, a 4,000:1 contrast ratio and a 6.5 ms grey-to-grey response. Infrared touch handles up to 6 touches from a finger, gloved hand or stylus, with accuracy under 2 mm and a 32767 x 32767 touch resolution. Fully tempered 4 mm glass with a double-sided anti-reflection coating gives 96% light transmission.
The display accepts HDMI 1.3, DisplayPort, DVI-D, D-sub 15-pin and BNC signals and passes video on through a DVI-D output. Touch uses a USB HID connection with native multi-touch on Windows 7 and 8, and single touch on Windows XP, Vista, Linux, Mac OS X and Android. An STv2 option slot is compatible with the Intel / NEC OPS standard for a slot-in PC. NEC lists a DICOM simulation feature for medical applications. This model is discontinued.
Key features
Specifications
| Key Features | Infrared multi-touch, 6 touches, driver-free USB HID, calibration-free, DICOM support, OPS-compatible slot, ambient light sensor |
| Model | V552-TM |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, power cable, remote control, USB cable, LAN control software (download) |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 41.4 mm |
| Brightness | 450 nits |
| Contrast Ratio | 4,000:1 |
| Panel Technology | VA (AMVA3) |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 6.5 ms (grey-to-grey) |
| Screen Size | 55 inch |
| Touch Accuracy | < 2 mm |
| Touch Points | 6-point multi-touch |
| Touch Resolution | 32767 x 32767 |
| Touch Response Time | 0 to 20 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Native multi-touch on Windows 7 and 8; single touch on Windows XP, Vista, Linux, Mac OS X, Android |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Audio In | 3.5 mm jack × 1 |
| Audio Out | 3.5 mm jack |
| Speaker Output | 10 W + 10 W |
| Ethernet | LAN 100 Mbit (SNMP) |
| Inputs | HDMI 1.3 × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1, BNC (RGBHV / component / composite) |
| OPS Slot | STv2 (compatible with Intel / NEC OPS standard) |
| Outputs | DVI-D × 1 |
| Serial Port | RS-232C (9-pin D-sub), in and out |
| Power Consumption | 96 W (ECO mode, shipment setting) |
| Standby Power | < 0.5 W (ECO standby) |
| Dimensions | 1294.4 x 765.2 x 86.5 mm (without stand) |
| Duty Cycle | 16/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 4 mm fully tempered glass, double-sided anti-reflection (96% light transmission) |
| VESA Mount | 300 x 300 mm (FDMI), 4 holes, M6 |
| Weight | 40.8 kg (without stand) |
| Certifications | C-tick, CE, FCC Class B, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI |
| IP Rating | IP40 (front), IP20 (back) |
| Warranty | 3 years (including backlight) |
