NECInteractive Flat PanelsSKU P403 SST

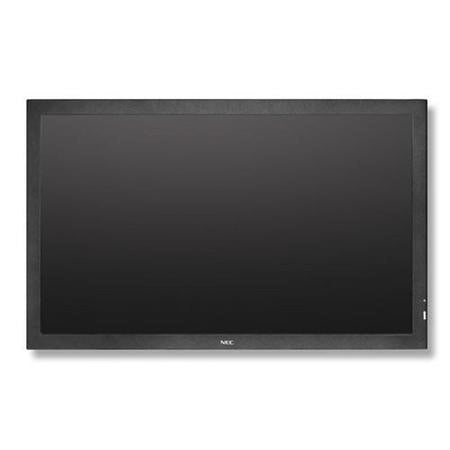

NEC MultiSync P Series 40-inch Interactive Flat Panel – P403 SST
The NEC MultiSync P403 SST (ShadowSense) is a 40-inch interactive flat panel with a Full HD 1920 x 1080 display and ShadowSense touch that tracks up to 10 simultaneous touches. It is built for 24/7 public and corporate use and has an OPS slot for a slot-in PC. Procure.ae supplies the NEC P403 SST in the UAE.
The NEC MultiSync P403 SST uses a 40-inch S-PVA panel with edge LED backlighting, a native resolution of 1920 x 1080 at 60 Hz, 550 cd/m² brightness (700 cd/m² maximum) and a 4,000:1 contrast ratio. ShadowSense touch accepts a finger, gloved hand or stylus of 4 mm or more, reports up to 10 touches with accuracy under 1.5 mm and keeps working in ambient light up to full sunlight (approximately 100,000 lux). A 4 mm toughened glass front with a single-sided anti-reflective coating protects the screen.
This large format touch display has one HDMI, one DisplayPort, one DVI-D and one D-sub 15-pin input, plus a DisplayPort output and LAN, RS-232C and infrared control. Touch connects to the host PC over USB 2.0 HID, plug and play, with native multi-touch on Windows 7 to 11, Linux and Android. An OPS slot accepts a slot-in PC, and the display mounts on a 300 x 300 mm VESA (FDMI) pattern. NEC lists the P403 SST as a discontinued model.
Screen Size
40 inch
Resolution
1920 x 1080 (Full HD)
Brightness
550 nits (700 nits max)
Touch Technology
Optical (ShadowSense)
- ShadowSense touch
- Sunlight tolerance
- Flexible input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense touch
Real multi-touch with up to 10 touches, under 1.5 mm accuracy and 12-bit (4096 x 4096) touch resolution.
02
Sunlight tolerance
Ambient light rejection works up to full sunlight, approximately 100,000 lux, to limit ghost touches.
03
Flexible input
A finger, gloved hand or a stylus of 4 mm or more can operate the screen.
04
Protective glass
4 mm premium toughened glass with single-sided anti-reflective coating and 92% light transmission.
05
Driver-free USB
USB 2.0 HID connection, plug and play, with native multi-touch on Windows 7-11, Linux and Android.
06
OPS slot
Open pluggable specification slot for a slot-in PC (Intel Core i5/i7) or a digital signage player.
07
Remote management
LAN with SNMP, RS-232C, IR remote and the free NaViSet Administrator 2 download.
08
24/7 duty
Rated for 24/7 operating hours, with a 3-year warranty including backlight listed by the manufacturer.
Specifications
42 specificationsGeneral
Key FeaturesShadowSense touch, 10 touches, finger/glove/stylus input, ambient light rejection, OPS slot, 24/7 operation, NaViSet Administrator 2
ModelP403 SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, power cable, remote control, USB cable, CD-ROM (user guides)
Display
BacklightEdge LED
Bezel Size39 mm
Brightness550 nits (700 nits max)
Contrast Ratio4,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyVA (S-PVA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6 to 8 ms
Screen Size40 inch
Touch Accuracy< 1.5 mm
Touch Points10-point multi-touch
Touch Resolution4096 x 4096 (12-bit)
Touch TechnologyOptical (ShadowSense)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemNative multi-touch on Windows 7–11, Linux, Android
Audio
Audio In3.5 mm jack × 2
Audio Out3.5 mm jack
Speaker Output10 W + 10 W
Connectivity
EthernetLAN 100 Mbit (SNMP)
ExpansionInterface extension slot (SB3 boards)
InputsHDMI × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1
OPS SlotOPS (NEC / Intel OPS standard)
OutputsDisplayPort × 1, DVI-D × 1, HDMI × 1
Serial PortRS-232C (9-pin D-sub)
Touch USB PortsUSB 2.0 HID (plug and play)
Power
Power Consumption122 W (ECO mode, shipment setting)
Standby Power< 0.5 W (ECO standby)
Physical
Dimensions968 x 587 x 82 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
Surface Protection4 mm toughened glass, single-sided anti-reflective coating
VESA Mount300 x 300 mm (FDMI), 4 holes, M6
Weight24 kg (without stand)
Compliance
CertificationsCE, RoHS
IP RatingIP40 (front), IP20 (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync P Series 40-inch Interactive Flat Panel – P403 SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touches does the NEC MultiSync P403 SST support?
It supports real multi-touch with up to 10 touches. ShadowSense touch reports each point with accuracy under 1.5 mm and 12-bit (4096 x 4096) touch resolution, and works with a finger, a gloved hand or a stylus of 4 mm or more.
What resolution and brightness does the P403 SST have?
The 40-inch panel has a native resolution of 1920 x 1080 (Full HD) at 60 Hz. Brightness is 550 cd/m² with 700 cd/m² as the maximum, contrast ratio is 4,000:1 and the viewing angle is 178 degrees horizontal and vertical.
Does the P403 SST need touch drivers?
No driver is needed for the main operating systems. The touch frame connects over USB 2.0 HID, powered by USB and plug and play, with native multi-touch on Windows 7 to 11, Linux and Android. The manufacturer lists default mouse mode for Mac OS.
Can I add a computer inside the NEC P403 SST?
Yes. The display has an OPS slot following the NEC / Intel open pluggable specification. NEC lists a slot-in PC (Intel Core i5/i7), an OPS digital signage player, an HDBaseT receiver and HD-SDI boards as options for the slot.
What are the VESA pattern and weight of the P403 SST?
The VESA mounting pattern is 300 x 300 mm (FDMI) with 4 holes and M6 screws. Without the stand the display measures 968 x 587 x 82 mm and weighs 24 kg. NEC lists wall mounts, feet and a trolley as accessories.
