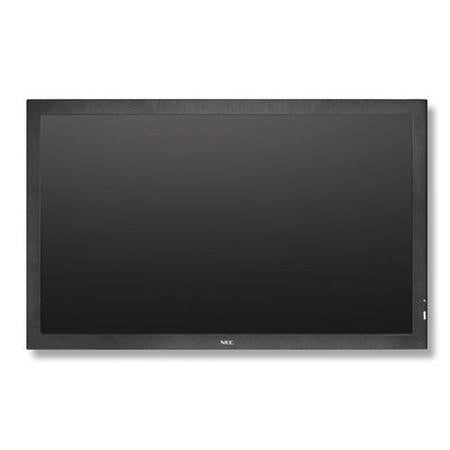

NEC MultiSync P Series 40-inch Interactive Flat Panel – P403 SST
The NEC MultiSync P403 SST (ShadowSense) is a 40-inch interactive flat panel with a Full HD 1920 x 1080 display and ShadowSense touch that tracks up to 10 simultaneous touches. It is built for 24/7 public and corporate use and has an OPS slot for a slot-in PC. Procure.ae supplies the NEC P403 SST in the UAE.
The NEC MultiSync P403 SST uses a 40-inch S-PVA panel with edge LED backlighting, a native resolution of 1920 x 1080 at 60 Hz, 550 cd/m² brightness (700 cd/m² maximum) and a 4,000:1 contrast ratio. ShadowSense touch accepts a finger, gloved hand or stylus of 4 mm or more, reports up to 10 touches with accuracy under 1.5 mm and keeps working in ambient light up to full sunlight (approximately 100,000 lux). A 4 mm toughened glass front with a single-sided anti-reflective coating protects the screen.
This large format touch display has one HDMI, one DisplayPort, one DVI-D and one D-sub 15-pin input, plus a DisplayPort output and LAN, RS-232C and infrared control. Touch connects to the host PC over USB 2.0 HID, plug and play, with native multi-touch on Windows 7 to 11, Linux and Android. An OPS slot accepts a slot-in PC, and the display mounts on a 300 x 300 mm VESA (FDMI) pattern. NEC lists the P403 SST as a discontinued model.
Key features
Specifications
| Key Features | ShadowSense touch, 10 touches, finger/glove/stylus input, ambient light rejection, OPS slot, 24/7 operation, NaViSet Administrator 2 |
| Model | P403 SST |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, power cable, remote control, USB cable, CD-ROM (user guides) |
| Backlight | Edge LED |
| Bezel Size | 39 mm |
| Brightness | 550 nits (700 nits max) |
| Contrast Ratio | 4,000:1 |
| Orientation | Landscape, portrait, face-up |
| Panel Technology | VA (S-PVA) |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 6 to 8 ms |
| Screen Size | 40 inch |
| Touch Accuracy | < 1.5 mm |
| Touch Points | 10-point multi-touch |
| Touch Resolution | 4096 x 4096 (12-bit) |
| Touch Technology | Optical (ShadowSense) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Native multi-touch on Windows 7–11, Linux, Android |
| Audio In | 3.5 mm jack × 2 |
| Audio Out | 3.5 mm jack |
| Speaker Output | 10 W + 10 W |
| Ethernet | LAN 100 Mbit (SNMP) |
| Expansion | Interface extension slot (SB3 boards) |
| Inputs | HDMI × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1 |
| OPS Slot | OPS (NEC / Intel OPS standard) |
| Outputs | DisplayPort × 1, DVI-D × 1, HDMI × 1 |
| Serial Port | RS-232C (9-pin D-sub) |
| Touch USB Ports | USB 2.0 HID (plug and play) |
| Power Consumption | 122 W (ECO mode, shipment setting) |
| Standby Power | < 0.5 W (ECO standby) |
| Dimensions | 968 x 587 x 82 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| Surface Protection | 4 mm toughened glass, single-sided anti-reflective coating |
| VESA Mount | 300 x 300 mm (FDMI), 4 holes, M6 |
| Weight | 24 kg (without stand) |
| Certifications | CE, RoHS |
| IP Rating | IP40 (front), IP20 (back) |
| Warranty | 3 years (including backlight) |
