NECInteractive Flat PanelsSKU M861 IGB

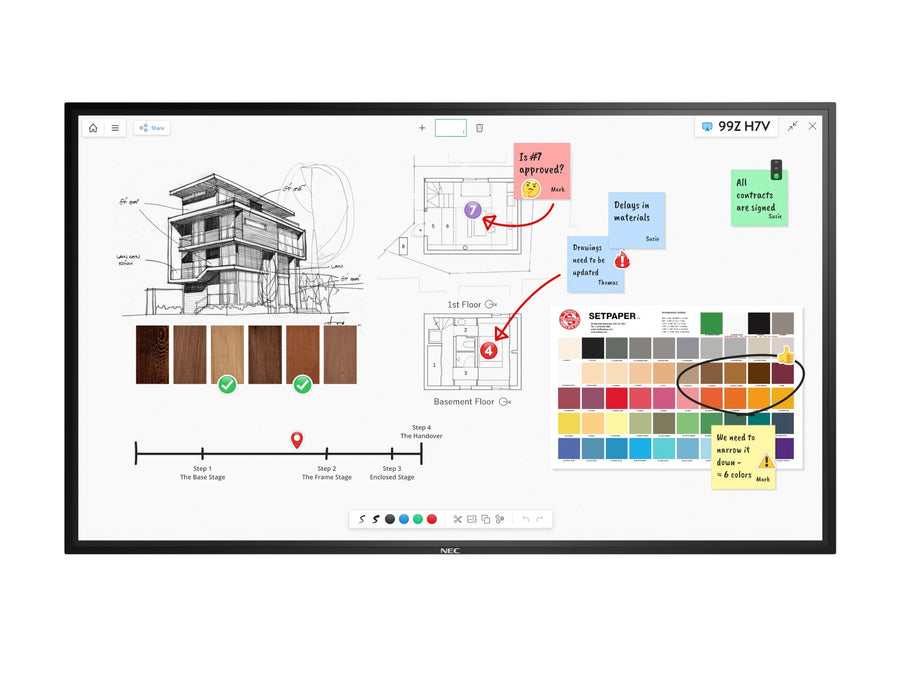

NEC MultiSync M Series 86-inch Interactive Flat Panel – M861 IGB
The NEC M861 IGB is an 86-inch interactive flat panel for corporate meeting rooms, with a 3840 x 2160 (4K UHD) IPS display, 500 nits brightness and 20-point multi-touch. It supports Windows, Linux and Android touch input and includes integrated speakers. Procure.ae supplies the NEC M861 IGB in the UAE, with quotes, delivery and installation.
The M861 IGB uses an IPS panel with direct LED backlights, a native 3840 x 2160 resolution and a contrast ratio of at least 8,000:1. Its InGlass touch layer supports real multi-touch with up to 20 simultaneous touches, a touch response time of 15 ms or less and an accuracy of under 1 mm. Finger, glove and stylus input are supported, and Windows Ink and palm rejection are included for handwriting. An anti-glare coating reduces reflections on the touch surface, and two passive styluses are supplied.
The M861 IGB suits meeting rooms that need a large shared writing surface and one display for PC, video and room control. It has two DisplayPort and two HDMI inputs with HDCP, a LAN 100 Mbit connection, RS232 and USB ports, and supports AMX NetLinx, Crestron Connected, PJLink and SNMP for room system integration. The Intel SDM slot accepts Smart Display Modules up to 66 W, and the panel mounts on a 600 x 400 mm VESA pattern.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (without glass)
Touch Technology
InGlass
- 4K UHD touch display
- Bright IPS panel
- Writing and palm rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD touch display
3840 x 2160 native resolution with real multi-touch of up to 20 simultaneous touches.
02
Bright IPS panel
500 nits without glass, a contrast ratio of at least 8,000:1 and a 178° viewing angle.
03
Writing and palm rejection
Windows Ink support and palm rejection for handwriting, with touch accuracy under 1 mm.
04
Anti-glare surface
An anti-glare coating reduces reflections on the touch surface.
05
Integrated speakers
10 W + 10 W speakers, with an amplifier for optional speakers up to 2 x 15 W.
06
Room system control
AMX NetLinx, Crestron Connected, PJLink, SNMP and RS232 control over LAN 100 Mbit.
07
Compute expansion
Intel SDM slot for modules up to 66 W and a Raspberry Pi Compute Module 4 slot.
08
Extended operating hours
Rated for 24/7 operation, with a 3-year warranty including the backlight.
Specifications
38 specificationsGeneral
ControlsAMX NetLinx, Crestron Connected, PJLink, SNMP, RS232, HDMI CEC, scheduled timer
Key Features20-point InGlass touch, Windows Ink, palm rejection, anti-glare coating, 4K UHD, Dual-Split and Quad-Split PiP, 3-year warranty, LAN and RS232 control
ModelM861 IGB
TypeInteractive Flat Panel
What's in the Box2 passive styluses, display, HDMI cable, power cable, remote control, USB cable, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size22.5 mm (symmetrical)
Brightness500 nits (without glass)
Color Depth10-bit (1.073 billion colours)
Color Gamut68% of DCI
Contrast Ratio8,000:1 (minimum)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size86 inch
Touch AccuracyLess than 1 mm
Touch Points20-point multi-touch
Touch Response Time15 ms or less
Touch TechnologyInGlass
Viewing Angle178° horizontal / 178° vertical
Performance
LicenseFlatFrog Board for Rooms, 1 year (free download)
Operating SystemNative multi-touch: Windows 7-11, Linux, Android
Storage Conditions-20 to 60 °C; 10% to 80% RH
Audio
AudioIntegrated 10 W + 10 W speakers; amplifier for optional speakers up to 2 x 15 W
Connectivity
ExpansionIntel SDM slot (up to 66 W); Raspberry Pi Compute Module 4 slot
Power
Power Consumption320 W (shipping)
Standby PowerLess than 0.5 W (ECO standby); less than 2 W (networked standby)
Physical
Dimensions1972 x 1142 x 91.5 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount600 x 400 mm
Weight76 kg
Compliance
CertificationsCE; EMC Class B; ENERGY STAR 8; RoHS
IP RatingIP5x (front); IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync M Series 86-inch Interactive Flat Panel – M861 IGB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What screen size and resolution does the NEC M861 IGB have?
The NEC M861 IGB is an 86-inch interactive flat panel with a 3840 x 2160 (4K UHD) native resolution and a 16:9 aspect ratio. Its supported inputs go up to 7680 x 4320. The panel is rated at 500 nits without glass and uses direct LED backlights, which helps readability in brightly lit meeting rooms.
How many touch points does the NEC M861 IGB support?
Yes. It supports real multi-touch with up to 20 simultaneous touches through InGlass touch technology. Finger, glove and stylus input are supported, with a stylus tip of at least 2 mm. Two passive styluses are included with the display.
Can the NEC M861 IGB be wall mounted?
Yes. It has four VESA holes at 600 x 400 mm with M8 fixings. The panel weighs 76 kg, so confirm that the wall structure can carry it before installation. The manufacturer lists a wall mount and trolleys as separate accessories.
Does the NEC M861 IGB work with room control systems?
Yes. It supports AMX NetLinx, Crestron Connected, PJLink, SNMP, HDMI CEC and RS232 control, plus LAN 100 Mbit and a scheduled timer. Automated email alerts and NaViSet Administrator 2 remote management are also listed by the manufacturer.
Is software included with the NEC M861 IGB?
Yes. The manufacturer lists FlatFrog Board for Rooms, with one year of use, as a free download. The panel is tested compatible with Barco ClickShare for conferencing, and calibration software includes the Display Wall Calibrator.
Can I buy the M861 IGB in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
