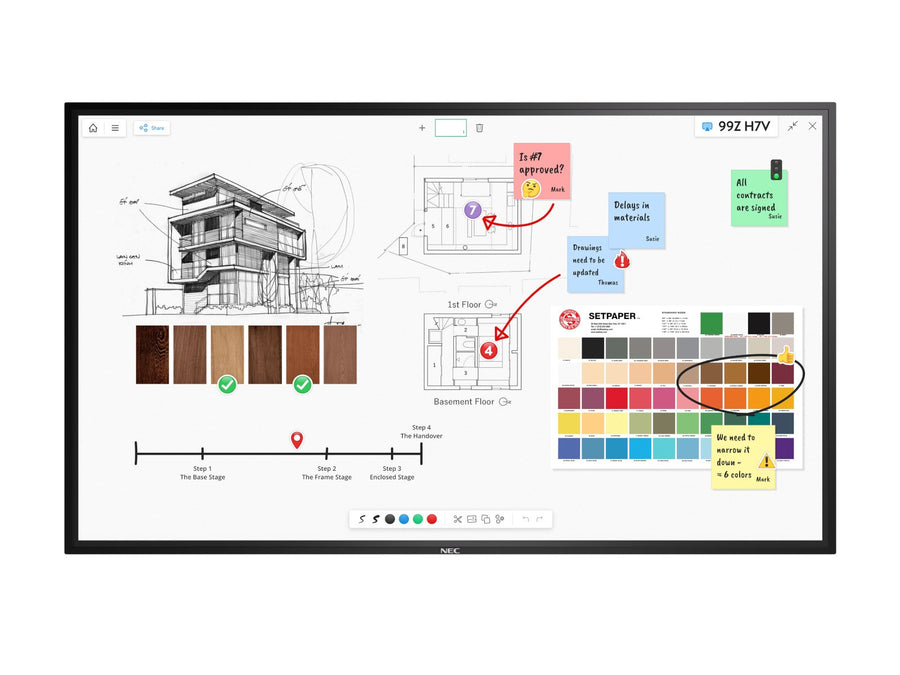

NEC MultiSync M Series 86-inch Interactive Flat Panel – M861 IGB
The NEC M861 IGB is an 86-inch interactive flat panel for corporate meeting rooms, with a 3840 x 2160 (4K UHD) IPS display, 500 nits brightness and 20-point multi-touch. It supports Windows, Linux and Android touch input and includes integrated speakers. Procure.ae supplies the NEC M861 IGB in the UAE, with quotes, delivery and installation.
The M861 IGB uses an IPS panel with direct LED backlights, a native 3840 x 2160 resolution and a contrast ratio of at least 8,000:1. Its InGlass touch layer supports real multi-touch with up to 20 simultaneous touches, a touch response time of 15 ms or less and an accuracy of under 1 mm. Finger, glove and stylus input are supported, and Windows Ink and palm rejection are included for handwriting. An anti-glare coating reduces reflections on the touch surface, and two passive styluses are supplied.
The M861 IGB suits meeting rooms that need a large shared writing surface and one display for PC, video and room control. It has two DisplayPort and two HDMI inputs with HDCP, a LAN 100 Mbit connection, RS232 and USB ports, and supports AMX NetLinx, Crestron Connected, PJLink and SNMP for room system integration. The Intel SDM slot accepts Smart Display Modules up to 66 W, and the panel mounts on a 600 x 400 mm VESA pattern.
Key features
Specifications
| Controls | AMX NetLinx, Crestron Connected, PJLink, SNMP, RS232, HDMI CEC, scheduled timer |
| Key Features | 20-point InGlass touch, Windows Ink, palm rejection, anti-glare coating, 4K UHD, Dual-Split and Quad-Split PiP, 3-year warranty, LAN and RS232 control |
| Model | M861 IGB |
| Type | Interactive Flat Panel |
| What's in the Box | 2 passive styluses, display, HDMI cable, power cable, remote control, USB cable, setup manual |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED |
| Bezel Size | 22.5 mm (symmetrical) |
| Brightness | 500 nits (without glass) |
| Color Depth | 10-bit (1.073 billion colours) |
| Color Gamut | 68% of DCI |
| Contrast Ratio | 8,000:1 (minimum) |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical) |
| Screen Size | 86 inch |
| Touch Accuracy | Less than 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 15 ms or less |
| Touch Technology | InGlass |
| Viewing Angle | 178° horizontal / 178° vertical |
| License | FlatFrog Board for Rooms, 1 year (free download) |
| Operating System | Native multi-touch: Windows 7-11, Linux, Android |
| Storage Conditions | -20 to 60 °C; 10% to 80% RH |
| Audio | Integrated 10 W + 10 W speakers; amplifier for optional speakers up to 2 x 15 W |
| Expansion | Intel SDM slot (up to 66 W); Raspberry Pi Compute Module 4 slot |
| Power Consumption | 320 W (shipping) |
| Standby Power | Less than 0.5 W (ECO standby); less than 2 W (networked standby) |
| Dimensions | 1972 x 1142 x 91.5 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 76 kg |
| Certifications | CE; EMC Class B; ENERGY STAR 8; RoHS |
| IP Rating | IP5x (front); IP2x (back) |
| Warranty | 3 years (including backlight) |
