NECInteractive Flat PanelsSKU E905 SST

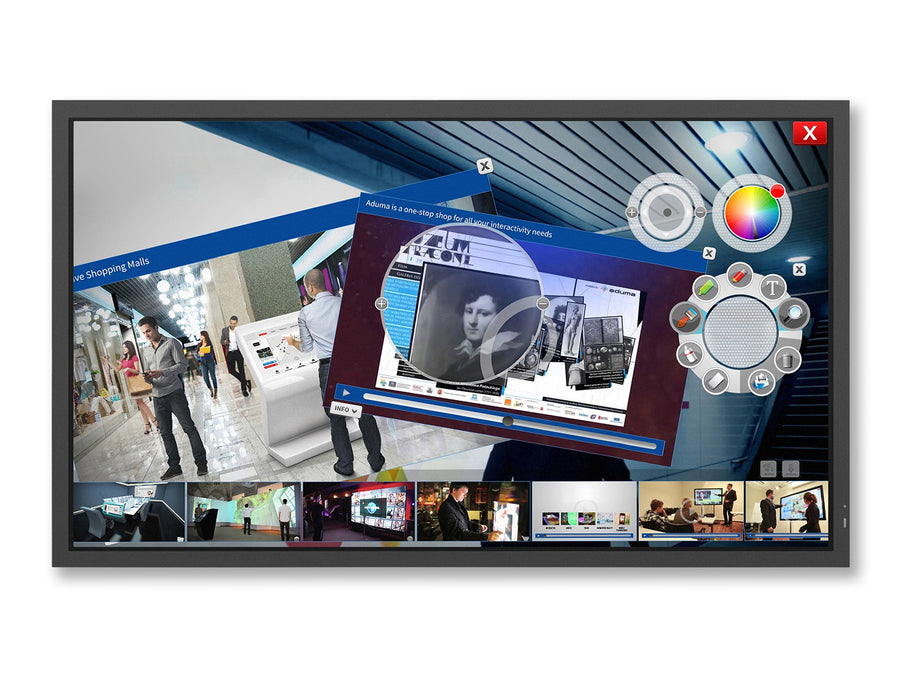

NEC MultiSync E Series 90-inch Interactive Flat Panel – E905 SST
The NEC MultiSync E905 SST is a 90-inch Full HD interactive flat panel for classrooms and meeting rooms that need a large shared screen. It has ShadowSense touch with 10 real-time touch points, 5,000:1 typical contrast and an OPS slot for a Windows PC. Procure.ae supplies the E905 SST in the UAE.
The E905 SST has a 90-inch panel with 1920 x 1080 native resolution at 60 Hz, 178° viewing angles and 5,000:1 typical contrast. Brightness is 300 cd/m², rising to 350 cd/m² at maximum, with a 4 ms grey-to-grey response time. ShadowSense touch supports up to 10 real-time touches, with finger, glove and stylus input at 4 mm or larger. Touch accuracy is under 2 mm. Integrated 10 W + 10 W speakers are fitted, with optional 15 W + 15 W speakers.
The E905 SST suits large classrooms, lecture spaces and meeting rooms where a group shares one screen. DisplayNote NEC Edition whiteboard software is included, and up to 20 attendees can collaborate from their own devices. The OPS slot takes a slot-in PC, an HD-SDI or HDBaseT receiver, or an OPS digital signage player. Native touch works with Windows 7 to 11, Linux and Android, and control is by LAN with SNMP or RS232.
Screen Size
90 inch
Resolution
1920 x 1080 (Full HD)
Brightness
300 nits (350 nits max)
Touch Technology
ShadowSense
- ShadowSense touch
- Full HD panel
- 5,000:1 contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense touch
Real multi-touch with 10 simultaneous touch points and under 2 mm accuracy.
02
Full HD panel
1920 x 1080 native resolution at 60 Hz with 178° viewing angles.
03
5,000:1 contrast
Typical contrast ratio with a 4 ms grey-to-grey response time.
04
DisplayNote included
DisplayNote NEC Edition whiteboard software for up to 20 attendees.
05
OPS slot
Accepts slot-in PC, HD-SDI, HDBaseT or digital signage player modules.
06
Built-in speakers
10 W + 10 W, with optional 15 W + 15 W speakers.
07
Inputs and control
DisplayPort, two HDMI, DVI-D, D-sub, LAN and RS232 control.
08
Energy efficiency
Energy efficiency class A with ECO mode and an ambient light sensor.
Specifications
32 specificationsGeneral
Key Features10-point ShadowSense touch, Full HD 1920 x 1080, 5,000:1 contrast, Ambient light sensor, DisplayNote NEC Edition included (up to 20 attendees), OPS slot-in PC support
ModelE905 SST
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size40 mm (all sides)
Brightness300 nits (350 nits max)
Contrast Ratio5,000:1
Panel TechnologyUV2A (VA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time4 ms
Screen Size90 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyShadowSense
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemWindows 7-11, Linux, Android (native touch)
Audio
AudioIntegrated 10 W + 10 W speakers; optional 15 W + 15 W
Connectivity
OPS SlotHD-SDI 1.5G/3G, HDBaseT receiver, OPS digital signage player, slot-in PC (Intel Core i5/i7 recommended)
PortsHDMI In × 2, DisplayPort In × 1, DVI-D In × 1, D-sub 15-pin In × 1, LAN × 1, RS232 × 1, Audio Out × 1
Power
Power Consumption278 W (eco setting)
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
Dimensions2122 x 1248 x 138.7 mm (without stand)
Duty Cycle12/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm
Weight105 kg (without stand)
Compliance
CertificationsCE, RoHS
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync E Series 90-inch Interactive Flat Panel – E905 SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the E905 SST a touchscreen display?
Yes. The E905 SST uses ShadowSense touch with up to 10 real-time touch points. Finger, glove and stylus input are supported, with stylus input at 4 mm or larger. The USB touch connection is plug and play and works with Windows, Linux and Android.
What room size suits the 90-inch E905 SST?
The manufacturer's specifications do not state a room size. A 90-inch panel suits large classrooms and meeting rooms where a group views one screen together. The panel is Full HD at 1920 x 1080, and the manufacturer lists a 2122 x 1248 mm footprint without stand.
Can the E905 SST be wall mounted?
Yes. It has a 400 x 400 mm VESA pattern with M8 holes and FDMI mounting. The manufacturer lists a wall mount (PDW T XXL), feet (ST-801) and speaker options as accessories. The panel weighs 105 kg without stand, so the mount must be rated for that load.
Does it include whiteboard software?
Yes. DisplayNote NEC Edition whiteboard toolbox software is included, and up to 20 attendees can collaborate using their own devices. The OPS slot can also take a slot-in PC for Windows applications.
What inputs does it have?
It has one DisplayPort with HDCP, one DVI-D with HDCP, two HDMI with HDCP and one D-sub 15-pin analogue input. Audio includes two 3.5 mm inputs and a 3.5 mm output. Control is by LAN 100 Mbit, RS232 and SNMP.
Can I buy the E905 SST in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
