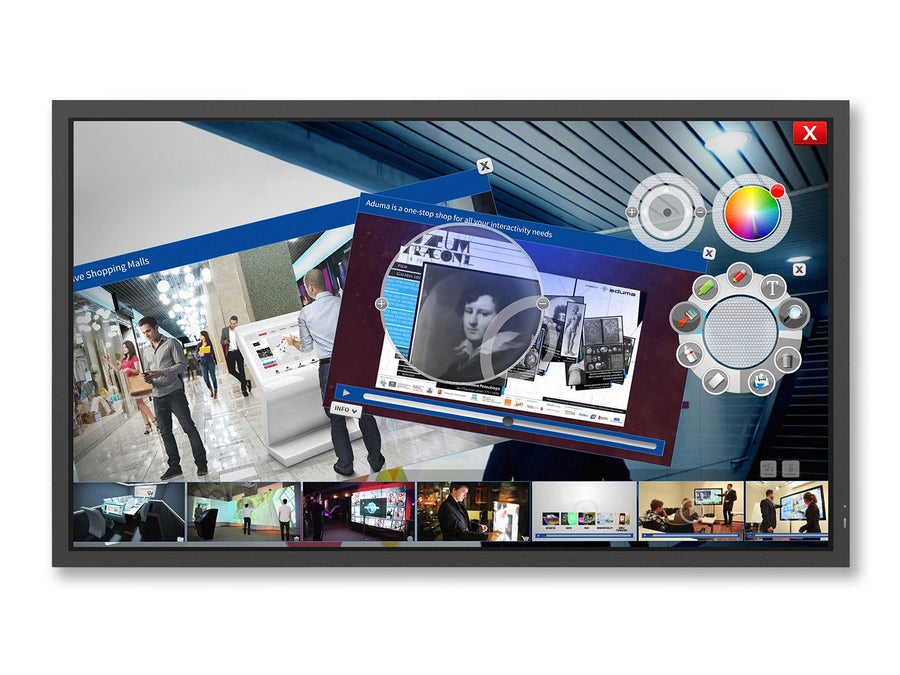

NEC MultiSync E Series 90-inch Interactive Flat Panel – E905 SST

NEC MultiSync E Series 90-inch Interactive Flat Panel – E905 SST

The NEC MultiSync E905 SST is a 90-inch Full HD interactive flat panel for classrooms and meeting rooms that need a large shared screen. It has ShadowSense touch with 10 real-time touch points, 5,000:1 typical contrast and an OPS slot for a Windows PC. Procure.ae supplies the E905 SST in the UAE.

The E905 SST has a 90-inch panel with 1920 x 1080 native resolution at 60 Hz, 178° viewing angles and 5,000:1 typical contrast. Brightness is 300 cd/m², rising to 350 cd/m² at maximum, with a 4 ms grey-to-grey response time. ShadowSense touch supports up to 10 real-time touches, with finger, glove and stylus input at 4 mm or larger. Touch accuracy is under 2 mm. Integrated 10 W + 10 W speakers are fitted, with optional 15 W + 15 W speakers.

The E905 SST suits large classrooms, lecture spaces and meeting rooms where a group shares one screen. DisplayNote NEC Edition whiteboard software is included, and up to 20 attendees can collaborate from their own devices. The OPS slot takes a slot-in PC, an HD-SDI or HDBaseT receiver, or an OPS digital signage player. Native touch works with Windows 7 to 11, Linux and Android, and control is by LAN with SNMP or RS232.

Screen Size
90 inch
Resolution
1920 x 1080 (Full HD)
Brightness
300 nits (350 nits max)
Touch Technology
ShadowSense
Type
Interactive Flat Panel
Weight
105 kg (without stand)

Key features

01
ShadowSense touch
Real multi-touch with 10 simultaneous touch points and under 2 mm accuracy.
02
Full HD panel
1920 x 1080 native resolution at 60 Hz with 178° viewing angles.
03
5,000:1 contrast
Typical contrast ratio with a 4 ms grey-to-grey response time.
04
DisplayNote included
DisplayNote NEC Edition whiteboard software for up to 20 attendees.
05
OPS slot
Accepts slot-in PC, HD-SDI, HDBaseT or digital signage player modules.
06
Built-in speakers
10 W + 10 W, with optional 15 W + 15 W speakers.
07
Inputs and control
DisplayPort, two HDMI, DVI-D, D-sub, LAN and RS232 control.
08
Energy efficiency
Energy efficiency class A with ECO mode and an ambient light sensor.

Specifications

General
Key Features10-point ShadowSense touch, Full HD 1920 x 1080, 5,000:1 contrast, Ambient light sensor, DisplayNote NEC Edition included (up to 20 attendees), OPS slot-in PC support
ModelE905 SST
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size40 mm (all sides)
Brightness300 nits (350 nits max)
Contrast Ratio5,000:1
Panel TechnologyUV2A (VA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time4 ms
Screen Size90 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyShadowSense
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemWindows 7-11, Linux, Android (native touch)
Audio
AudioIntegrated 10 W + 10 W speakers; optional 15 W + 15 W
Connectivity
OPS SlotHD-SDI 1.5G/3G, HDBaseT receiver, OPS digital signage player, slot-in PC (Intel Core i5/i7 recommended)
PortsHDMI In × 2, DisplayPort In × 1, DVI-D In × 1, D-sub 15-pin In × 1, LAN × 1, RS232 × 1, Audio Out × 1
Power
Power Consumption278 W (eco setting)
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
Dimensions2122 x 1248 x 138.7 mm (without stand)
Duty Cycle12/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm
Weight105 kg (without stand)
Compliance
CertificationsCE, RoHS
Warranty3 years (including backlight)
