NECInteractive Flat PanelsSKU V864Q IGB

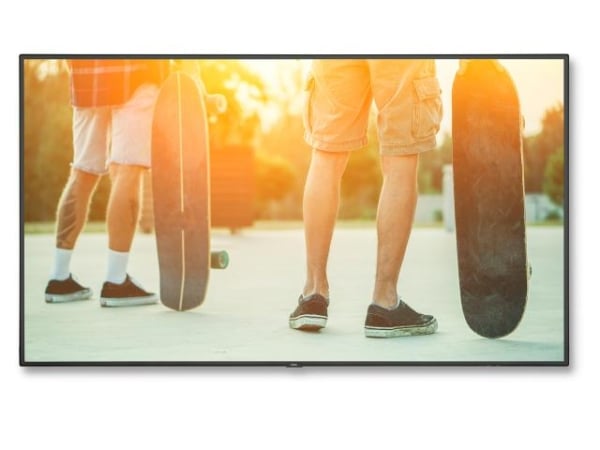

NEC MultiSync 86-inch InGlass Touch Interactive Flat Panel – V864Q IGB
The NEC MultiSync V864Q IGB is an 86-inch 4K UHD interactive flat panel with InGlass infrared glass-bonded touch, supporting up to 20 simultaneous touches from a finger, glove or stylus. It has a 500 nits IPS panel, an OPS slot and a Compute Module slot, and is rated for 24/7 operation. Procure.ae supplies it in the UAE.
The V864Q IGB uses an 86-inch IPS panel with edge LED backlights and a native resolution of 3840 x 2160. Brightness is 500 nits (350 nits as shipped), contrast is 1200:1, colour depth is 10-bit and the viewing angle is 178 degrees in both directions. The InGlass touch layer reports real multi-touch up to 20 touches with a response time of 15 ms or less and accuracy below 1 mm. It accepts finger, glove and stylus input (2 mm or larger) and supports Windows Ink.
The display has three HDMI and two DisplayPort inputs, a DisplayPort loop-through output, RS-232, LAN and a USB Type-B upstream port for touch. The OPS slot follows the NEC / Intel OPS standard, and the Compute Module 3 slot takes the NEC Compute Module or Raspberry Pi Compute Module 1 and 3. Native multi-touch works on Windows 7 to 11, Linux and Android. Mounting uses 400 x 400 mm or 600 x 400 mm VESA (FDMI) patterns.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared (InGlass, glass-bonded)
- InGlass touch
- 4K UHD IPS panel
- Finger, glove and stylus
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass touch
Infrared glass-bonded touch supports real multi-touch up to 20 touches with accuracy below 1 mm.
02
4K UHD IPS panel
3840 x 2160 native resolution on an 86-inch IPS panel with edge LED backlights.
03
Finger, glove and stylus
Touch input works with fingers, gloves and styluses of 2 mm or larger, and Windows Ink is supported.
04
Modular expansion
An OPS slot and a Compute Module 3 slot allow a slot-in PC or compute module to be added.
05
Wide connectivity
Three HDMI, two DisplayPort, RS-232, LAN, a four-port USB 3.0 hub and a microSD media player slot.
06
Integrated audio
Built-in 10 W + 10 W speakers, with optional 15 W + 15 W speakers available.
07
24/7 operation
Rated for continuous 24/7 use, with a three-year warranty that includes the backlight.
08
Sensors and energy saving
Three temperature sensors, ambient light sensor, ECO mode and local dimming; an external human sensor is optional.
Specifications
43 specificationsGeneral
CompatibilityNative multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Vista, Mac OS
Key FeaturesInGlass infrared touch, 20 touches, 4K UHD, OPS slot, Compute Module slot, 24/7 operation, Windows Ink
ModelV864Q IGB
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 styluses, power cable, DisplayPort cable, USB cables, remote control, cable clamps, user guides CD
Display
BacklightEdge LED
Bezel Size19.8 mm (top/bottom), 20.3 mm (left/right)
Brightness500 nits
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1
OrientationLandscape, portrait, face up
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size86 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time≤ 15 ms
Touch TechnologyInfrared (InGlass, glass-bonded)
Viewing Angle178° / 178°
Audio
Audio In3.5 mm jack × 1
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 2 (HDCP); DisplayPort Out × 1 (loop-through)
Speaker Output10 W + 10 W (integrated)
Connectivity
EthernetLAN 100 Mbit × 1 In, × 1 Out
ExpansionCompute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
HDMI InputsHDMI × 3 (HDCP)
OPS SlotOPS slot (NEC / Intel OPS standard)
SD Card SlotmicroSD (media player) × 1
Serial PortRS-232 × 1
Touch USB PortsUSB Type-B × 1 (upstream, USB-HID)
USB PortsUSB 3.0 hub × 4; USB 2.0 downstream × 1; USB 2.0 media player × 1
Power
Power Consumption242 W (as shipped)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
Dimensions1972 x 1142 x 84.6 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm, 600 x 400 mm (FDMI, M8)
Weight84 kg
Compliance
CertificationsCE, EMC Class B, FCC, REACH, RoHS
IP RatingIP5x (front), IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync 86-inch InGlass Touch Interactive Flat Panel – V864Q IGB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC V864Q IGB use?
It uses NEC InGlass touch, an infrared glass-bonded technology, with real multi-touch up to 20 touches. Touch response is 15 ms or less and accuracy is below 1 mm. Input works with a finger, gloves or a stylus of 2 mm or larger, and the touch data interface is USB-HID.
What resolution and brightness does the V864Q IGB have?
The V864Q IGB has a native resolution of 3840 x 2160 (4K UHD) on an 86-inch IPS panel. Brightness is 500 nits (350 nits as shipped) with a 1200:1 contrast ratio and 10-bit colour depth. Supported input resolutions include 1920 x 1080 and 4096 x 2160.
Can a PC or compute module be fitted inside the display?
Yes. The display has an OPS slot following the NEC / Intel Open Pluggable Specification, which accepts Intel Atom, Celeron and Core slot-in PCs, and a Compute Module 3 slot for the NEC Compute Module or Raspberry Pi Compute Module 1 and 3.
How is the NEC V864Q IGB mounted?
It has four M8 VESA (FDMI) mounting holes in 400 x 400 mm and 600 x 400 mm patterns. The display weighs 84 kg and measures 1,972 x 1,142 x 84.6 mm without stand, so mounting hardware must be rated accordingly. NEC lists wall mounts and trolleys as accessories.
Which operating systems support multi-touch on the V864Q IGB?
Native multi-touch works with Windows 7 to 11, Linux and Android. On Windows XP, Windows Vista and Mac OS the display behaves as a standard mouse. The computer connects to the USB Type-B upstream port, and Windows Ink is supported.
