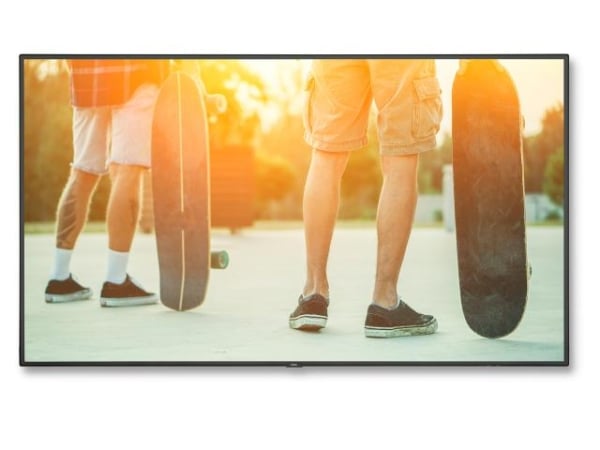

NEC MultiSync 86-inch InGlass Touch Interactive Flat Panel – V864Q IGB
The NEC MultiSync V864Q IGB is an 86-inch 4K UHD interactive flat panel with InGlass infrared glass-bonded touch, supporting up to 20 simultaneous touches from a finger, glove or stylus. It has a 500 nits IPS panel, an OPS slot and a Compute Module slot, and is rated for 24/7 operation. Procure.ae supplies it in the UAE.
The V864Q IGB uses an 86-inch IPS panel with edge LED backlights and a native resolution of 3840 x 2160. Brightness is 500 nits (350 nits as shipped), contrast is 1200:1, colour depth is 10-bit and the viewing angle is 178 degrees in both directions. The InGlass touch layer reports real multi-touch up to 20 touches with a response time of 15 ms or less and accuracy below 1 mm. It accepts finger, glove and stylus input (2 mm or larger) and supports Windows Ink.
The display has three HDMI and two DisplayPort inputs, a DisplayPort loop-through output, RS-232, LAN and a USB Type-B upstream port for touch. The OPS slot follows the NEC / Intel OPS standard, and the Compute Module 3 slot takes the NEC Compute Module or Raspberry Pi Compute Module 1 and 3. Native multi-touch works on Windows 7 to 11, Linux and Android. Mounting uses 400 x 400 mm or 600 x 400 mm VESA (FDMI) patterns.
Key features
Specifications
| Compatibility | Native multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Vista, Mac OS |
| Key Features | InGlass infrared touch, 20 touches, 4K UHD, OPS slot, Compute Module slot, 24/7 operation, Windows Ink |
| Model | V864Q IGB |
| Type | Interactive Flat Panel |
| What's in the Box | Display, 2 styluses, power cable, DisplayPort cable, USB cables, remote control, cable clamps, user guides CD |
| Backlight | Edge LED |
| Bezel Size | 19.8 mm (top/bottom), 20.3 mm (left/right) |
| Brightness | 500 nits |
| Color Depth | 10-bit (1.073 billion colours) |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape, portrait, face up |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 86 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | ≤ 15 ms |
| Touch Technology | Infrared (InGlass, glass-bonded) |
| Viewing Angle | 178° / 178° |
| Audio In | 3.5 mm jack × 1 |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 2 (HDCP); DisplayPort Out × 1 (loop-through) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | LAN 100 Mbit × 1 In, × 1 Out |
| Expansion | Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3) |
| HDMI Inputs | HDMI × 3 (HDCP) |
| OPS Slot | OPS slot (NEC / Intel OPS standard) |
| SD Card Slot | microSD (media player) × 1 |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | USB Type-B × 1 (upstream, USB-HID) |
| USB Ports | USB 3.0 hub × 4; USB 2.0 downstream × 1; USB 2.0 media player × 1 |
| Power Consumption | 242 W (as shipped) |
| Standby Power | < 0.5 W; < 2 W (networked standby) |
| Dimensions | 1972 x 1142 x 84.6 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm, 600 x 400 mm (FDMI, M8) |
| Weight | 84 kg |
| Certifications | CE, EMC Class B, FCC, REACH, RoHS |
| IP Rating | IP5x (front), IP2x (back) |
| Warranty | 3 years (including backlight) |
