NECInteractive Flat PanelsSKU P801 SST

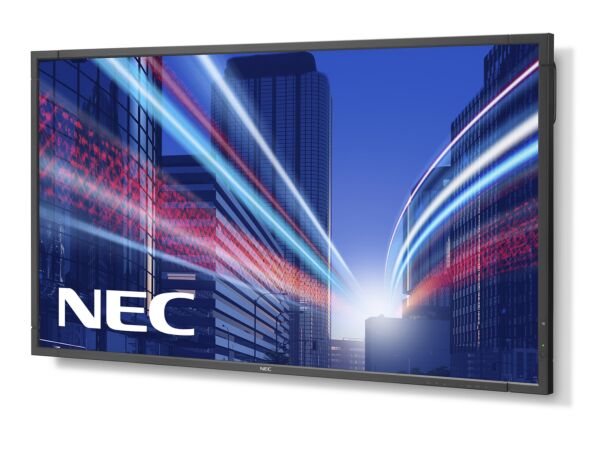

NEC MultiSync 80-inch Full HD ShadowSense Touch Interactive Flat Panel – P801 SST
The NEC MultiSync P801 SST is an 80-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. It works with a finger, gloves or a pen, rejects ambient light up to full sunlight and runs 24/7. It suits large rooms and lecture spaces, and Procure.ae supplies it in the UAE.
The NEC MultiSync P801 SST is an 80-inch UV²A panel with edge LED backlighting at a native 1920 x 1080 resolution at 60 Hz. Brightness is 500 nits (700 nits maximum), contrast is 5,000:1 and viewing angles are 178 degrees. ShadowSense optical touch tracks up to 10 touches with accuracy under 2 mm and 12-bit (4096 x 4096) touch resolution, accepts finger, glove and stylus input of 4 mm or more, and ships with a pen and eraser.
Video inputs are one D-sub 15 pin, one DVI-D, one DisplayPort and one HDMI, with LAN, RS-232 and IR remote control, and SNMP over LAN. An OPS slot and an interface extension slot allow a built-in computer or signal modules. Touch is native multi-touch on Windows 7 to 11, Linux and Android, over USB 2.0 HID. It mounts on a 400 x 400 mm VESA (FDMI) pattern.
Screen Size
80 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (700 nits max)
Touch Technology
Optical (ShadowSense)
- ShadowSense optical touch
- Glove and pen input
- Sunlight rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense optical touch
tracks up to 10 touches with accuracy under 2 mm and a 6 to 8 ms touch response.
02
Glove and pen input
works with a finger, gloves or a stylus of 4 mm or larger; a pen and eraser ship in the box.
03
Sunlight rejection
ambient light rejection up to full sunlight, about 100,000 lux.
04
80-inch UV²A panel
edge LED panel at 1920 x 1080 with 500 nits (700 nits maximum) and 5,000:1 contrast.
05
Four video inputs
D-sub 15 pin, DVI-D, DisplayPort and HDMI, plus DisplayPort, DVI-D and HDMI outputs.
06
OPS and extension slots
OPS slot plus an NEC interface extension slot for analogue and digital modules.
07
Energy management
ambient light sensor, ECO mode, carbon savings meter and Energy Efficiency Class B.
08
24/7 operation
rated for continuous operation with a 3-year warranty including the backlight.
Specifications
43 specificationsGeneral
CompatibilityTouch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS
Key FeaturesShadowSense optical touch, 10 touches, glove and pen input, sunlight rejection, UV²A panel, OPS slot, extension slot, 24/7 operation
ModelP801 SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, power cable, USB cable, pen and eraser, remote control, CD-ROM
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size40 mm (all sides)
Brightness500 nits (700 nits max)
Contrast Ratio5,000:1
OrientationLandscape, portrait
Panel TechnologyUV²A (VA type)
Resolution1920 x 1080 (Full HD)
Screen Size80 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyOptical (ShadowSense)
Viewing Angle178° horizontal / 178° vertical
Audio
AudioIntegrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers)
Audio In3.5 mm analogue jack × 2; digital via HDMI and DisplayPort
Audio Out3.5 mm analogue jack × 1
DisplayPortDisplayPort In × 1 (HDCP), DisplayPort Out × 1
Connectivity
EthernetLAN 100 Mbit (in and out)
ExpansionNEC interface extension slot (analogue and digital)
HDMI InputsHDMI In × 1 (HDCP)
OPS SlotOPS (Open Pluggable Specification) slot
PortsD-sub 15 pin × 1, DVI-D × 1, DisplayPort In × 1, HDMI In × 1, DisplayPort/DVI-D/HDMI out, LAN, RS-232, 3.5 mm audio in/out
ProtocolsSNMP over LAN, RS-232C, IR remote
Serial PortRS-232
VGA InputD-sub 15 pin × 1
Power
Power Consumption239 W (Eco shipment setting)
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
Dimensions1878 x 1097 x 104 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm (FDMI), M8
Weight85 kg (without stand)
Compliance
CertificationsCE, RoHS
IP RatingIP40 (front), IP20 (back)
Warranty3 years including backlight
Downloads
Manufacturer documents for the NEC MultiSync 80-inch Full HD ShadowSense Touch Interactive Flat Panel – P801 SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC MultiSync P801 SST use?
It uses ShadowSense optical touch with real multi-touch for up to 10 touches. Input comes from a finger, gloves or a stylus of 4 mm or larger, with accuracy under 2 mm, 12-bit (4096 x 4096) touch resolution and a 6 to 8 ms response. The manufacturer states ambient light rejection up to full sunlight (about 100,000 lux).
What resolution and inputs does the P801 SST have?
The native resolution is 1920 x 1080 at 60 Hz, and the HDMI input also accepts 3840 x 2160 (25 Hz) and 4096 x 2160 (24 Hz) signals. Inputs are one D-sub 15 pin, one DVI-D, one DisplayPort and one HDMI. Control is by LAN, RS-232 and a 3.5 mm remote-control jack.
Which operating systems support P801 SST touch?
Native multi-touch is listed for Windows 7 to 11, Linux and Android. Windows XP, Windows Vista and Mac OS use default mouse behaviour. The touch interface is USB 2.0 (full speed) HID, USB powered and plug and play, so connect the USB cable to the source computer along with the video cable.
Can the P801 SST take a built-in computer?
Yes. It has an OPS slot, and the manufacturer lists options such as an OPS digital signage player, an HDBaseT receiver, HD-SDI input and a slot-in PC (Intel Core i5 or i7). It also has an NEC interface extension slot. These are optional parts, so confirm them when requesting a quote.
How is the P801 SST mounted?
It has a 400 x 400 mm VESA (FDMI) pattern with four M8 holes. Without the stand it measures 1,878 x 1,097 x 104 mm and weighs 85 kg, so choose a wall mount or trolley rated for that weight. Procure.ae can arrange delivery and installation across the UAE.
