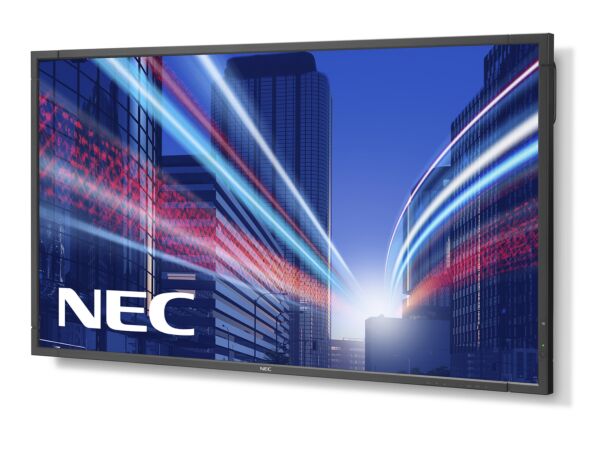

NEC MultiSync 80-inch Full HD ShadowSense Touch Interactive Flat Panel – P801 SST
The NEC MultiSync P801 SST is an 80-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. It works with a finger, gloves or a pen, rejects ambient light up to full sunlight and runs 24/7. It suits large rooms and lecture spaces, and Procure.ae supplies it in the UAE.
The NEC MultiSync P801 SST is an 80-inch UV²A panel with edge LED backlighting at a native 1920 x 1080 resolution at 60 Hz. Brightness is 500 nits (700 nits maximum), contrast is 5,000:1 and viewing angles are 178 degrees. ShadowSense optical touch tracks up to 10 touches with accuracy under 2 mm and 12-bit (4096 x 4096) touch resolution, accepts finger, glove and stylus input of 4 mm or more, and ships with a pen and eraser.
Video inputs are one D-sub 15 pin, one DVI-D, one DisplayPort and one HDMI, with LAN, RS-232 and IR remote control, and SNMP over LAN. An OPS slot and an interface extension slot allow a built-in computer or signal modules. Touch is native multi-touch on Windows 7 to 11, Linux and Android, over USB 2.0 HID. It mounts on a 400 x 400 mm VESA (FDMI) pattern.
Key features
Specifications
| Compatibility | Touch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS |
| Key Features | ShadowSense optical touch, 10 touches, glove and pen input, sunlight rejection, UV²A panel, OPS slot, extension slot, 24/7 operation |
| Model | P801 SST |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, power cable, USB cable, pen and eraser, remote control, CD-ROM |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 40 mm (all sides) |
| Brightness | 500 nits (700 nits max) |
| Contrast Ratio | 5,000:1 |
| Orientation | Landscape, portrait |
| Panel Technology | UV²A (VA type) |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Size | 80 inch |
| Touch Accuracy | < 2 mm |
| Touch Points | 10-point multi-touch |
| Touch Resolution | 12-bit (4096 x 4096) |
| Touch Response Time | 6 to 8 ms |
| Touch Technology | Optical (ShadowSense) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Audio | Integrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers) |
| Audio In | 3.5 mm analogue jack × 2; digital via HDMI and DisplayPort |
| Audio Out | 3.5 mm analogue jack × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP), DisplayPort Out × 1 |
| Ethernet | LAN 100 Mbit (in and out) |
| Expansion | NEC interface extension slot (analogue and digital) |
| HDMI Inputs | HDMI In × 1 (HDCP) |
| OPS Slot | OPS (Open Pluggable Specification) slot |
| Ports | D-sub 15 pin × 1, DVI-D × 1, DisplayPort In × 1, HDMI In × 1, DisplayPort/DVI-D/HDMI out, LAN, RS-232, 3.5 mm audio in/out |
| Protocols | SNMP over LAN, RS-232C, IR remote |
| Serial Port | RS-232 |
| VGA Input | D-sub 15 pin × 1 |
| Power Consumption | 239 W (Eco shipment setting) |
| Standby Power | < 0.5 W (ECO standby); < 1 W |
| Dimensions | 1878 x 1097 x 104 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm (FDMI), M8 |
| Weight | 85 kg (without stand) |
| Certifications | CE, RoHS |
| IP Rating | IP40 (front), IP20 (back) |
| Warranty | 3 years including backlight |
