NECInteractive Flat PanelsSKU E805 SST

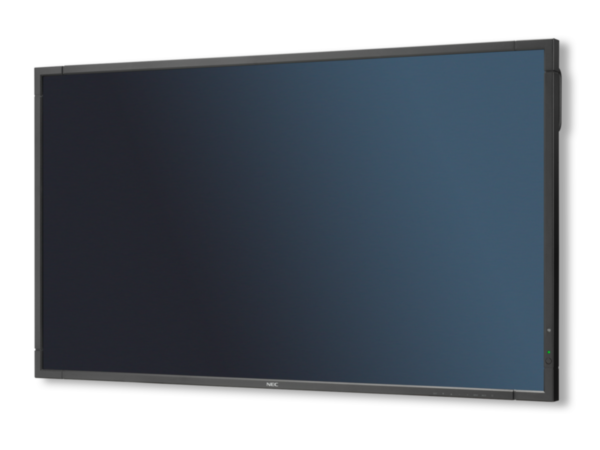

NEC MultiSync 80-inch Full HD ShadowSense Interactive Flat Panel – E805 SST
The NEC MultiSync E805 SST is an 80-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. NEC describes it as an entry-level large format touch display, with an OPS slot, HDMI, DisplayPort, DVI-D and VGA inputs and energy efficiency class A. Procure.ae supplies it in the UAE.
The E805 SST has an 80-inch UV²A panel with edge LED backlighting at 1920 x 1080 resolution, 300 nits brightness (350 nits maximum), a 5,000:1 typical contrast ratio and a 4 ms grey-to-grey response. ShadowSense optical touch registers up to 10 touches from a finger, a gloved hand or a stylus of 4 mm or larger. Touch accuracy is under 2 mm with a 6 to 8 ms response, and ambient light rejection works up to full sunlight.
Native multi-touch works with Windows 7 to 11, Linux and Android over USB 2.0 HID. Video inputs are 2 x HDMI, 1 x DisplayPort, 1 x DVI-D and 1 x D-sub 15-pin, and an OPS slot accepts a Slot-in PC or digital signage player. Control is through LAN with SNMP or RS-232C. The display is rated for 12/7 operation in landscape orientation and mounts on a 400 x 400 mm VESA pattern.
Screen Size
80 inch
Resolution
1920 x 1080 (Full HD)
Brightness
300 nits (350 nits maximum)
Touch Technology
Optical
- ShadowSense Touch
- Full HD Panel
- Touch Precision
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense Touch
Optical touch registers up to 10 simultaneous touches from a finger, glove or stylus of 4 mm or larger.
02
Full HD Panel
The 80-inch UV²A panel runs at 1920 x 1080 with 5,000:1 contrast and a 4 ms response.
03
Touch Precision
Touch accuracy is under 2 mm with 12-bit (4096 x 4096) resolution and a 6 to 8 ms response.
04
Light Rejection
Ambient light rejection holds up to full sunlight for reliable touch in bright rooms.
05
OPS Slot
The OPS slot accepts a Slot-in PC, HDBaseT receiver, HD-SDI board or digital signage player.
06
Input Mix
Inputs include 2 x HDMI, 1 x DisplayPort, 1 x DVI-D and 1 x D-sub 15-pin, with 3.5 mm audio in and out.
07
Energy Efficiency
Energy efficiency class A, with 331 kWh annual consumption based on 4 operating hours per day, and an ambient light sensor.
08
Network Control
LAN with SNMP and RS-232C allow remote control and monitoring of the display.
Specifications
43 specificationsGeneral
CompatibilityNative multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP/Vista, Mac OS. Touch via finger, gloves or stylus (≥ 4 mm)
Key FeaturesShadowSense optical touch, 10 touches, finger/glove/stylus input, OPS slot, ambient light sensor, energy class A, integrated speakers
ModelE805 SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, USB cable, power cable, remote control, pen and eraser, CD-ROM with user guides
Display
BacklightEdge LED backlight
Bezel Size40 mm (all sides)
Brightness300 nits (350 nits maximum)
Contrast Ratio5,000:1
OrientationLandscape
Panel TechnologyUV²A
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time4 ms (grey-to-grey)
Screen Size80 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyOptical
Viewing Angle178° horizontal / 178° vertical
Audio
Audio In3.5 mm jack × 2; digital audio via HDMI and DisplayPort
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 1 (HDCP)
Speaker Output10 W + 10 W (integrated)
Connectivity
EthernetLAN 100 Mbit × 1
HDMI InputsHDMI In × 2 (HDCP)
InputsDVI-D × 1 (HDCP)
OPS SlotYes, OPS (HD-SDI, HDBaseT receiver, digital signage player or Slot-in PC)
ProtocolsSNMP (LAN)
Serial PortRS-232C (9-pin D-sub) × 1
VGA InputD-sub 15-pin × 1
Power
Power Consumption227 W (Eco, shipment setting)
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
ColorBlack front bezel, black back cabinet
Dimensions1878 x 1097 x 104 mm (without stand)
Duty Cycle12/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm (M8, FDMI)
Weight85 kg (without stand)
Compliance
CertificationsCE, RoHS; energy efficiency class A
Warranty3 years including backlight (optional extension to 4th and 5th year)
Downloads
Manufacturer documents for the NEC MultiSync 80-inch Full HD ShadowSense Interactive Flat Panel – E805 SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC E805 SST use?
The E805 SST uses ShadowSense optical touch. It supports up to 10 simultaneous touches with a finger, glove or stylus of 4 mm or larger, with accuracy under 2 mm and a 6 to 8 ms touch response. Ambient light rejection works up to full sunlight, which suits bright rooms.
What resolution does the E805 SST have?
The E805 SST is an 80-inch display with a native 1920 x 1080 (Full HD) resolution at 60 Hz. Brightness is 300 nits with a 350 nits maximum, typical contrast ratio is 5,000:1 and viewing angles are 178° horizontal and vertical. It is not a 4K panel.
Which operating systems work with E805 SST touch?
Yes, native multi-touch works with Windows 7 to 11, Linux and Android over a USB 2.0 HID connection. Mac OS and older Windows XP and Vista systems use the default mouse mode. The USB interface is plug and play on supported systems.
Can I add a PC or player to the E805 SST?
Yes. The E805 SST has an OPS slot that accepts a Slot-in PC (Intel Core i5/i7 with WS7P recommended), a digital signage player, an HDBaseT receiver or an HD-SDI board. It also has HDMI, DisplayPort, DVI-D and VGA inputs for external sources.
How is the E805 SST mounted and how heavy is it?
The E805 SST measures 1878 x 1097 x 104 mm without stand and weighs 85 kg without stand. It has a 4-hole VESA pattern of 400 x 400 mm with M8 screws. NEC lists feet, trolleys and wall mounts, so use a mount rated for this weight.
