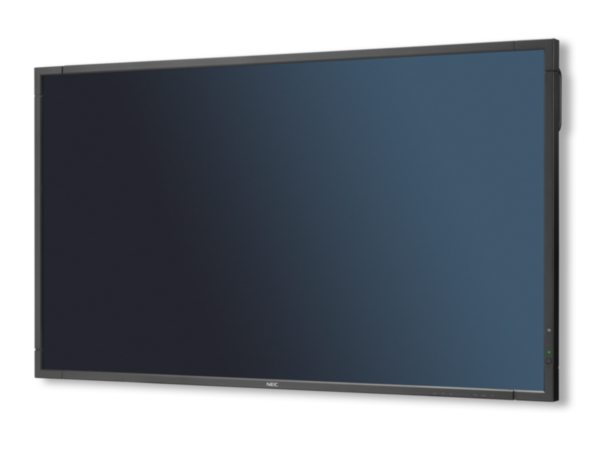

NEC MultiSync 80-inch Full HD ShadowSense Interactive Flat Panel – E805 SST
The NEC MultiSync E805 SST is an 80-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. NEC describes it as an entry-level large format touch display, with an OPS slot, HDMI, DisplayPort, DVI-D and VGA inputs and energy efficiency class A. Procure.ae supplies it in the UAE.
The E805 SST has an 80-inch UV²A panel with edge LED backlighting at 1920 x 1080 resolution, 300 nits brightness (350 nits maximum), a 5,000:1 typical contrast ratio and a 4 ms grey-to-grey response. ShadowSense optical touch registers up to 10 touches from a finger, a gloved hand or a stylus of 4 mm or larger. Touch accuracy is under 2 mm with a 6 to 8 ms response, and ambient light rejection works up to full sunlight.
Native multi-touch works with Windows 7 to 11, Linux and Android over USB 2.0 HID. Video inputs are 2 x HDMI, 1 x DisplayPort, 1 x DVI-D and 1 x D-sub 15-pin, and an OPS slot accepts a Slot-in PC or digital signage player. Control is through LAN with SNMP or RS-232C. The display is rated for 12/7 operation in landscape orientation and mounts on a 400 x 400 mm VESA pattern.
Key features
Specifications
| Compatibility | Native multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP/Vista, Mac OS. Touch via finger, gloves or stylus (≥ 4 mm) |
| Key Features | ShadowSense optical touch, 10 touches, finger/glove/stylus input, OPS slot, ambient light sensor, energy class A, integrated speakers |
| Model | E805 SST |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, USB cable, power cable, remote control, pen and eraser, CD-ROM with user guides |
| Backlight | Edge LED backlight |
| Bezel Size | 40 mm (all sides) |
| Brightness | 300 nits (350 nits maximum) |
| Contrast Ratio | 5,000:1 |
| Orientation | Landscape |
| Panel Technology | UV²A |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 4 ms (grey-to-grey) |
| Screen Size | 80 inch |
| Touch Accuracy | < 2 mm |
| Touch Points | 10-point multi-touch |
| Touch Resolution | 12-bit (4096 x 4096) |
| Touch Response Time | 6 to 8 ms |
| Touch Technology | Optical |
| Viewing Angle | 178° horizontal / 178° vertical |
| Audio In | 3.5 mm jack × 2; digital audio via HDMI and DisplayPort |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | LAN 100 Mbit × 1 |
| HDMI Inputs | HDMI In × 2 (HDCP) |
| Inputs | DVI-D × 1 (HDCP) |
| OPS Slot | Yes, OPS (HD-SDI, HDBaseT receiver, digital signage player or Slot-in PC) |
| Protocols | SNMP (LAN) |
| Serial Port | RS-232C (9-pin D-sub) × 1 |
| VGA Input | D-sub 15-pin × 1 |
| Power Consumption | 227 W (Eco, shipment setting) |
| Standby Power | < 0.5 W (ECO standby); < 1 W |
| Color | Black front bezel, black back cabinet |
| Dimensions | 1878 x 1097 x 104 mm (without stand) |
| Duty Cycle | 12/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm (M8, FDMI) |
| Weight | 85 kg (without stand) |
| Certifications | CE, RoHS; energy efficiency class A |
| Warranty | 3 years including backlight (optional extension to 4th and 5th year) |
