NECInteractive Flat PanelsSKU V801-TM

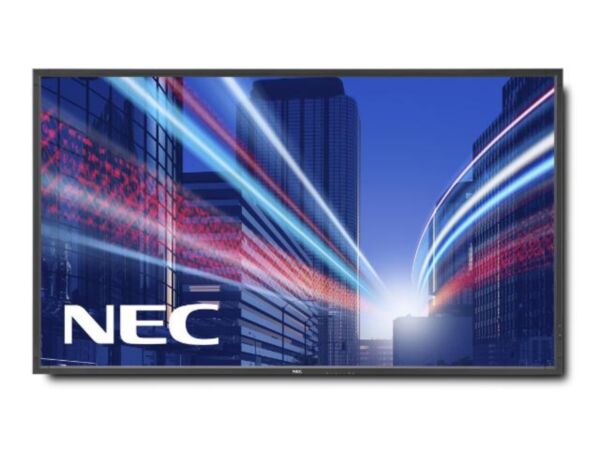

NEC MultiSync 80-inch Full HD Infrared Touch Interactive Flat Panel – V801-TM
The NEC MultiSync V801-TM is an 80-inch Full HD interactive flat panel with infrared touch for up to 6 simultaneous touches. It offers 460 nits brightness, a 5,000:1 contrast ratio, DisplayPort, HDMI, DVI-D and VGA inputs, and an OPS-compatible slot. Procure.ae supplies it across the UAE for meeting rooms, classrooms and public spaces.
The NEC MultiSync V801-TM (infrared touch) has a 1920 x 1080 native resolution on an 80-inch UV²A panel with an edge LED backlight, rated at 460 nits with a 5,000:1 typical contrast ratio and 176° viewing angles. Infrared touch handles up to 6 touches with a finger, gloves or a stylus, with accuracy below 2 mm and a touch resolution of 32767 x 32767. Integrated 10 W + 10 W speakers are included, and the display is driver-free and calibration-free.
The V801-TM is described by the manufacturer as an entry-level large-format touch display and also lists DICOM support. Native multi-touch is available on Windows 7 and Windows 8, with single touch on Windows Vista, Linux, macOS and Android. Its STv2 slot is compatible with the Intel / NEC OPS standard for adding a PC. It mounts on a 400 x 400 mm FDMI pattern (M8) and weighs 79.9 kg without stand.
Screen Size
80 inch
Resolution
1920 x 1080 (Full HD)
Brightness
460 nits (174 nits Eco, shipment se...
Touch Technology
Infrared
- Infrared touch
- Full HD panel
- Driver-free touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared touch
Multi-touch for up to 6 touches with a finger, gloves or a stylus, at under 2 mm accuracy.
02
Full HD panel
80-inch UV²A panel at 1920 x 1080 with 460 nits and a 5,000:1 typical contrast ratio.
03
Driver-free touch
Driver-free and calibration-free operation, with USB 2.0 full-speed HID and USB power.
04
Mixed video inputs
DisplayPort, DVI-D and HDMI 1.3 with HDCP, plus D-sub 15-pin and BNC analogue inputs.
05
OPS-compatible slot
The STv2 slot is compatible with the Intel / NEC OPS standard for adding a PC.
06
Integrated audio
10 W + 10 W integrated speakers, with optional 15 W + 15 W speakers available.
07
Remote management
100 Mbit LAN with SNMP, RS-232C input and output, and IR remote control support.
08
Warranty
The manufacturer states a 3-year warranty including the backlight.
Specifications
44 specificationsGeneral
CompatibilityNative multi-touch: Windows 7, Windows 8; single touch: Windows Vista, Linux, macOS, Android
Key FeaturesFull HD, infrared touch, 6 touches, driver-free, calibration-free, DICOM support, OPS-compatible slot, 10 W + 10 W speakers
ModelV801-TM
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, external power supply, power cable, remote control, USB cable, user guides and touch drivers on CD-ROM
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size34.8 mm (all sides)
Brightness460 nits (174 nits Eco, shipment setting)
Contrast Ratio5,000:1
OrientationLandscape, portrait
Panel TechnologyUV²A
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6 ms (grey-to-grey)
Screen Size80 inch
Touch Accuracy< 2 mm
Touch Points6-point multi-touch
Touch Resolution32767 x 32767
Touch Response Time0 to 20 ms
Touch TechnologyInfrared
Viewing Angle176° horizontal / 176° vertical
Audio
Audio In3.5 mm jack × 1
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 1 (HDCP)
Speaker Output10 W + 10 W (integrated)
Connectivity
Ethernet100 Mbit LAN (SNMP)
HDMI InputsHDMI 1.3 × 1 (HDCP)
InputsDisplayPort × 1, DVI-D × 1, HDMI × 1, D-sub 15-pin × 1, BNC (composite, RGBHV, component), 3.5 mm audio, LAN, RS-232
OPS SlotSTv2 (compatible with Intel / NEC OPS standard)
OutputsDVI-D × 1 (HDCP), 3.5 mm audio, RS-232
Serial PortRS-232C (9-pin D-sub), input and output
Touch USB PortsUSB 2.0 × 1 (full speed HID, USB-powered)
VGA InputD-sub 15-pin × 1
Power
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
Dimensions1842.8 x 1067.9 x 107.3 mm (without stand)
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm (FDMI), M8
Weight79.9 kg (without stand)
Compliance
CertificationsC-tick, CE, FCC Class B, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI
IP RatingIP40 (front), IP20 (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync 80-inch Full HD Infrared Touch Interactive Flat Panel – V801-TM — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the NEC MultiSync V801-TM support?
The V801-TM uses infrared touch with up to 6 simultaneous touches from a finger, gloves or a stylus. Touch accuracy is under 2 mm, response time is 0 to 20 ms, and it connects by USB 2.0 HID. It is driver-free and calibration-free.
Which video inputs does the NEC MultiSync V801-TM have?
It has one DisplayPort, one DVI-D and one HDMI 1.3 input, all with HDCP, plus a D-sub 15-pin input and BNC inputs for composite, RGBHV and component video. There is a DVI-D output, a 3.5 mm audio in and out, 100 Mbit LAN and RS-232C.
Which operating systems support multi-touch on the V801-TM?
Native multi-touch works on Windows 7 and Windows 8. Single touch is available on Windows Vista, Linux, macOS and Android. The display connects over USB 2.0 HID with full-speed, USB-powered, plug-and-play operation, so it needs one USB cable to the host.
Can I add a PC to the NEC MultiSync V801-TM?
Yes. The STv2 slot is compatible with the Intel / NEC OPS standard, and the manufacturer lists a slot-in PC (Intel Core i5 or i7 with Windows 7 Professional recommended), an HDBaseT receiver and HD-SDI options for it.
How is the NEC MultiSync V801-TM mounted?
It has a 400 x 400 mm FDMI mounting pattern (M8) and weighs 79.9 kg without stand, so it needs a rated wall mount or trolley. The manufacturer lists feet (ST-801), wall mounts (PDWHM-L, PDW T XL) and a trolley (PDMHA) as accessories.
