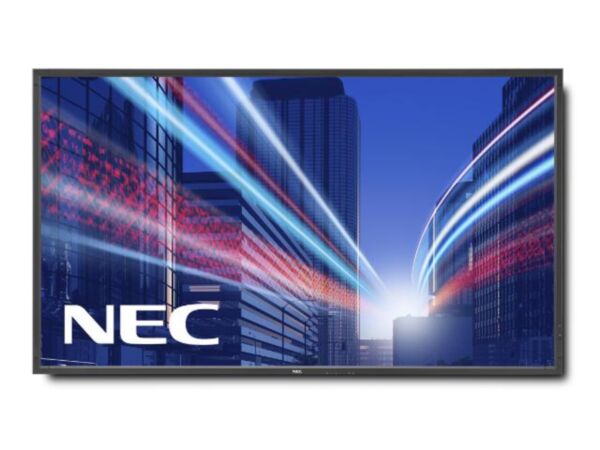

NEC MultiSync 80-inch Full HD Infrared Touch Interactive Flat Panel – V801-TM
The NEC MultiSync V801-TM is an 80-inch Full HD interactive flat panel with infrared touch for up to 6 simultaneous touches. It offers 460 nits brightness, a 5,000:1 contrast ratio, DisplayPort, HDMI, DVI-D and VGA inputs, and an OPS-compatible slot. Procure.ae supplies it across the UAE for meeting rooms, classrooms and public spaces.
The NEC MultiSync V801-TM (infrared touch) has a 1920 x 1080 native resolution on an 80-inch UV²A panel with an edge LED backlight, rated at 460 nits with a 5,000:1 typical contrast ratio and 176° viewing angles. Infrared touch handles up to 6 touches with a finger, gloves or a stylus, with accuracy below 2 mm and a touch resolution of 32767 x 32767. Integrated 10 W + 10 W speakers are included, and the display is driver-free and calibration-free.
The V801-TM is described by the manufacturer as an entry-level large-format touch display and also lists DICOM support. Native multi-touch is available on Windows 7 and Windows 8, with single touch on Windows Vista, Linux, macOS and Android. Its STv2 slot is compatible with the Intel / NEC OPS standard for adding a PC. It mounts on a 400 x 400 mm FDMI pattern (M8) and weighs 79.9 kg without stand.
Key features
Specifications
| Compatibility | Native multi-touch: Windows 7, Windows 8; single touch: Windows Vista, Linux, macOS, Android |
| Key Features | Full HD, infrared touch, 6 touches, driver-free, calibration-free, DICOM support, OPS-compatible slot, 10 W + 10 W speakers |
| Model | V801-TM |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, external power supply, power cable, remote control, USB cable, user guides and touch drivers on CD-ROM |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 34.8 mm (all sides) |
| Brightness | 460 nits (174 nits Eco, shipment setting) |
| Contrast Ratio | 5,000:1 |
| Orientation | Landscape, portrait |
| Panel Technology | UV²A |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 6 ms (grey-to-grey) |
| Screen Size | 80 inch |
| Touch Accuracy | < 2 mm |
| Touch Points | 6-point multi-touch |
| Touch Resolution | 32767 x 32767 |
| Touch Response Time | 0 to 20 ms |
| Touch Technology | Infrared |
| Viewing Angle | 176° horizontal / 176° vertical |
| Audio In | 3.5 mm jack × 1 |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | 100 Mbit LAN (SNMP) |
| HDMI Inputs | HDMI 1.3 × 1 (HDCP) |
| Inputs | DisplayPort × 1, DVI-D × 1, HDMI × 1, D-sub 15-pin × 1, BNC (composite, RGBHV, component), 3.5 mm audio, LAN, RS-232 |
| OPS Slot | STv2 (compatible with Intel / NEC OPS standard) |
| Outputs | DVI-D × 1 (HDCP), 3.5 mm audio, RS-232 |
| Serial Port | RS-232C (9-pin D-sub), input and output |
| Touch USB Ports | USB 2.0 × 1 (full speed HID, USB-powered) |
| VGA Input | D-sub 15-pin × 1 |
| Standby Power | < 0.5 W (ECO standby); < 1 W |
| Dimensions | 1842.8 x 1067.9 x 107.3 mm (without stand) |
| Duty Cycle | 16/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm (FDMI), M8 |
| Weight | 79.9 kg (without stand) |
| Certifications | C-tick, CE, FCC Class B, PSB, RoHS, TÜV GS, UL/C-UL or CSA, VCCI |
| IP Rating | IP40 (front), IP20 (back) |
| Warranty | 3 years (including backlight) |
