NECInteractive Flat PanelsSKU M651 PCAP

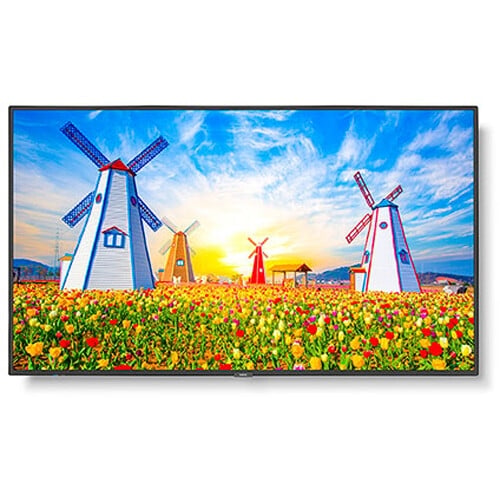

NEC MultiSync 65-inch 4K UHD PCAP Interactive Flat Panel – M651 PCAP
The NEC MultiSync M651 PCAP is a 65-inch 4K UHD interactive flat panel with projected capacitive touch for up to 20 simultaneous touches. It has an IPS panel with direct LED backlight rated at 500 nits, 24/7 operation, and DisplayPort and HDMI inputs. It suits larger meeting rooms and classrooms, and Procure.ae supplies it across the UAE.
The NEC MultiSync M651 PCAP pairs a 65-inch IPS panel with direct LED backlighting at a native 3840 x 2160 (4K UHD) resolution. Brightness is 500 nits, contrast is above 8,000:1, response time is 8 ms and the refresh rate is 60 Hz, with 178-degree viewing angles. Projected capacitive touch tracks up to 20 touches from a finger or conductive passive stylus with ±1.5 mm accuracy, behind a 6H-hardness edge-to-edge flush glass front with a black bezel colour.
The M651 PCAP takes one DisplayPort and two HDMI inputs, with LAN, RS-232 and a remote-control jack for control. It accepts Intel Smart Display Modules (Large and Small, up to 66 W) and has a Raspberry Pi Compute Module 4 slot, and touch works with Windows, Linux, Android and Raspberry Pi over USB-HID. It mounts on a 400 x 400 mm VESA (FDMI) pattern and manages through PJLink, SNMP, HTTP browser and NaViSet Administrator 2.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
PCAP
- 20-point PCAP touch
- 4K UHD IPS panel
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-point PCAP touch
projected capacitive touch supports up to 20 touches from a finger or conductive passive stylus.
02
4K UHD IPS panel
65-inch direct LED IPS panel at 3840 x 2160 with 178-degree viewing angles.
03
500 nits brightness
500 nits with a contrast ratio above 8,000:1 and an 8 ms response time.
04
Flush glass front
edge-to-edge flush design with no bezel and 6H surface hardness.
05
Modular computing
accepts Intel Smart Display Modules up to 66 W and a Raspberry Pi Compute Module 4.
06
Wide input set
one DisplayPort and two HDMI inputs, USB 2.0 media player, 3.5 mm audio out and integrated 10 W + 10 W speakers.
07
Remote management
PJLink, SNMP, HTTP browser, Crestron Connected, AMX NetLinx and NaViSet Administrator 2 with automated email alerts.
08
24/7 operation
rated for continuous operation with a 3-year warranty including the backlight.
Specifications
48 specificationsGeneral
CompatibilityTouch: Windows, Linux, Android, Raspberry Pi
Key FeaturesPCAP touch, 20 touches, 4K UHD, IPS panel, 24/7 operation, flush glass front, Smart Display Module slot, Raspberry Pi CM4 slot
ModelM651 PCAP
TypeInteractive Flat Panel
What's in the BoxDisplay, HDMI cable, power cable, USB cable, remote control with 2 AAA batteries, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel SizeEdge-to-edge flush glass (no bezel)
Brightness500 nits
Color Depth10-bit
Contrast Ratio> 8,000:1
OrientationLandscape, portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy±1.5 mm
Touch Points20-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
AudioIntegrated speakers, 10 W + 10 W
Audio Out3.5 mm analogue jack × 1
DisplayPortDisplayPort In × 1 (HDCP)
Connectivity
EthernetLAN 100 Mbit
ExpansionIntel Smart Display Module (Large and Small, up to 66 W); Raspberry Pi Compute Module 4 slot
HDMI InputsHDMI In × 2 (HDCP)
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort In × 1, HDMI In × 2, USB 2.0 × 1, LAN, RS-232, remote control jack, 3.5 mm audio out
ProtocolsPJLink, SNMP, HTTP browser, AMX NetLinx, Crestron Connected, HDMI CEC, ASCII commands
Serial PortRS-232
USB PortsUSB 2.0 × 1 (media player)
Power
Power Consumption120 W (shipping setting)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
ColorBlack
Dimensions1493.3 x 870.8 x 69.4 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
Shipping Dimensions1736 x 1033 x 280 mm
Shipping Weight64 kg
Surface Protection6H surface hardness
VESA Mount400 x 400 mm (FDMI), M8
Weight51.1 kg
Compliance
CertificationsCE, EAC, RoHS, ENERGY STAR 8.0
IP RatingIP5x (front), IP2x (back)
Warranty3 years including backlight
Downloads
Manufacturer documents for the NEC MultiSync 65-inch 4K UHD PCAP Interactive Flat Panel – M651 PCAP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC MultiSync M651 PCAP use?
It uses projected capacitive (PCAP) touch with real multi-touch for up to 20 touches. Input comes from a finger or a conductive passive stylus, with ±1.5 mm accuracy and a 6H-hardness surface. Touch data is sent over USB-HID. The manufacturer's specifications state that Windows Ink and palm rejection are not supported.
What resolution and video inputs does the M651 PCAP have?
The native resolution is 3840 x 2160 (4K UHD) at 60 Hz. Video inputs are one DisplayPort and two HDMI, all with HDCP, plus a USB 2.0 port for the built-in media player. Control interfaces are LAN 100 Mbit, RS-232 and a 3.5 mm remote-control jack, and audio out is a 3.5 mm analogue jack.
Which operating systems work with the M651 PCAP touch?
The manufacturer lists Windows, Linux, Android and Raspberry Pi as supported operating systems for touch. The display reports touch over USB-HID, so a connected computer or compute module handles the touch input. Confirm your exact setup with Procure.ae when requesting a quote.
Can the M651 PCAP take a built-in computer?
Yes. The manufacturer specifies a slot for Intel Smart Display Modules (Large and Small, up to 66 W) and a slot for a Raspberry Pi Compute Module 4. The modules are optional parts, so confirm the combination you need with Procure.ae when requesting a quote.
How is the M651 PCAP mounted?
It has a 400 x 400 mm VESA (FDMI) pattern with four M8 holes. It measures 1,493.3 x 870.8 x 69.4 mm and weighs 51.1 kg, so choose a wall mount or trolley rated for that weight. Procure.ae can arrange delivery and installation across the UAE.
