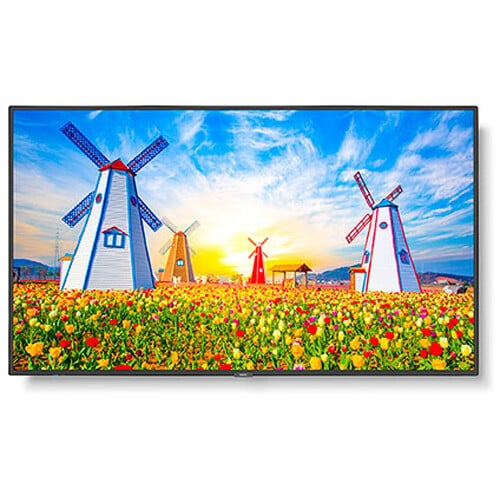

NEC MultiSync 65-inch 4K UHD PCAP Interactive Flat Panel – M651 PCAP
The NEC MultiSync M651 PCAP is a 65-inch 4K UHD interactive flat panel with projected capacitive touch for up to 20 simultaneous touches. It has an IPS panel with direct LED backlight rated at 500 nits, 24/7 operation, and DisplayPort and HDMI inputs. It suits larger meeting rooms and classrooms, and Procure.ae supplies it across the UAE.
The NEC MultiSync M651 PCAP pairs a 65-inch IPS panel with direct LED backlighting at a native 3840 x 2160 (4K UHD) resolution. Brightness is 500 nits, contrast is above 8,000:1, response time is 8 ms and the refresh rate is 60 Hz, with 178-degree viewing angles. Projected capacitive touch tracks up to 20 touches from a finger or conductive passive stylus with ±1.5 mm accuracy, behind a 6H-hardness edge-to-edge flush glass front with a black bezel colour.
The M651 PCAP takes one DisplayPort and two HDMI inputs, with LAN, RS-232 and a remote-control jack for control. It accepts Intel Smart Display Modules (Large and Small, up to 66 W) and has a Raspberry Pi Compute Module 4 slot, and touch works with Windows, Linux, Android and Raspberry Pi over USB-HID. It mounts on a 400 x 400 mm VESA (FDMI) pattern and manages through PJLink, SNMP, HTTP browser and NaViSet Administrator 2.
Key features
Specifications
| Compatibility | Touch: Windows, Linux, Android, Raspberry Pi |
| Key Features | PCAP touch, 20 touches, 4K UHD, IPS panel, 24/7 operation, flush glass front, Smart Display Module slot, Raspberry Pi CM4 slot |
| Model | M651 PCAP |
| Type | Interactive Flat Panel |
| What's in the Box | Display, HDMI cable, power cable, USB cable, remote control with 2 AAA batteries, setup manual |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED |
| Bezel Size | Edge-to-edge flush glass (no bezel) |
| Brightness | 500 nits |
| Color Depth | 10-bit |
| Contrast Ratio | > 8,000:1 |
| Orientation | Landscape, portrait |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 65 inch |
| Touch Accuracy | ±1.5 mm |
| Touch Points | 20-point multi-touch |
| Touch Technology | PCAP |
| Viewing Angle | 178° horizontal / 178° vertical |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Audio | Integrated speakers, 10 W + 10 W |
| Audio Out | 3.5 mm analogue jack × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP) |
| Ethernet | LAN 100 Mbit |
| Expansion | Intel Smart Display Module (Large and Small, up to 66 W); Raspberry Pi Compute Module 4 slot |
| HDMI Inputs | HDMI In × 2 (HDCP) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort In × 1, HDMI In × 2, USB 2.0 × 1, LAN, RS-232, remote control jack, 3.5 mm audio out |
| Protocols | PJLink, SNMP, HTTP browser, AMX NetLinx, Crestron Connected, HDMI CEC, ASCII commands |
| Serial Port | RS-232 |
| USB Ports | USB 2.0 × 1 (media player) |
| Power Consumption | 120 W (shipping setting) |
| Standby Power | < 0.5 W; < 2 W (networked standby) |
| Color | Black |
| Dimensions | 1493.3 x 870.8 x 69.4 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| Shipping Dimensions | 1736 x 1033 x 280 mm |
| Shipping Weight | 64 kg |
| Surface Protection | 6H surface hardness |
| VESA Mount | 400 x 400 mm (FDMI), M8 |
| Weight | 51.1 kg |
| Certifications | CE, EAC, RoHS, ENERGY STAR 8.0 |
| IP Rating | IP5x (front), IP2x (back) |
| Warranty | 3 years including backlight |
