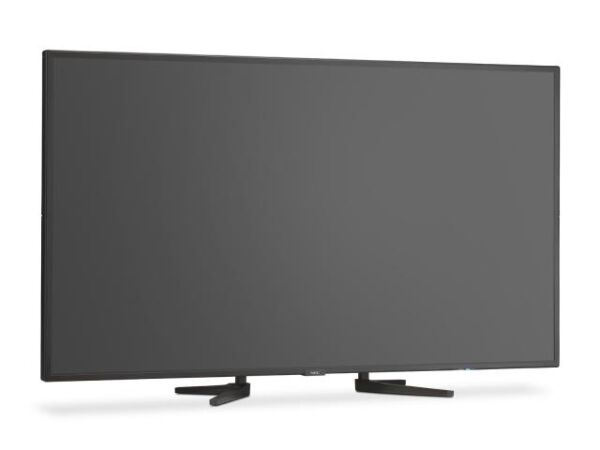

NEC MultiSync 55-inch ShadowSense Touch Interactive Flat Panel – P554 SST
The NEC MultiSync P554 SST is a 55-inch Full HD interactive flat panel with ShadowSense optical touch, supporting up to 10 simultaneous touches. It has a 700 nits S-IPS panel, an OPS slot and a Compute Module slot, and is rated for 24/7 operation. Procure.ae, an authorised NEC reseller in Dubai, supplies it across the UAE.
The P554 SST pairs a 55-inch S-IPS panel with edge LED backlights and a native resolution of 1920 x 1080. Brightness is 700 nits (500 nits in the Eco shipment setting), contrast is 1200:1 and the viewing angle is 178 degrees in both directions. ShadowSense optical touch tracks up to 10 touches with a 6 to 8 ms response time, accuracy below 1.5 mm and a touch resolution of 4096 x 4096. It rejects ambient light up to full sunlight and accepts finger, glove and stylus (4 mm or larger) input.
Inputs include VGA, DVI-D, two HDMI and two DisplayPort connections, with a DisplayPort loop-through output, RS-232 and LAN. The OPS slot accepts NEC / Intel OPS modules, and the Compute Module 3 slot takes the NEC Compute Module or Raspberry Pi Compute Module 1 and 3. Native multi-touch works on Windows 7 to 11, Linux and Android. Mounting uses a 300 x 300 mm VESA (FDMI) pattern with M6 screws, and an integrated NFC sensor works with a free NEC Android app.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Touch Technology
Optical (ShadowSense)
- ShadowSense touch
- Bright-room touch
- Full HD S-IPS panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense touch
Optical touch supports real multi-touch up to 10 touches with a 6 to 8 ms response time.
02
Bright-room touch
Ambient light rejection keeps touch working up to full sunlight, according to NEC.
03
Full HD S-IPS panel
1920 x 1080 native resolution with 700 nits brightness and a 178 degree viewing angle.
04
Finger, glove and stylus
Touch input works with fingers, gloves and styluses of 4 mm or larger.
05
Modular expansion
An OPS slot and a Compute Module 3 slot allow a slot-in PC or compute module to be added.
06
Wide connectivity
VGA, DVI-D, two HDMI, two DisplayPort, RS-232, LAN and a microSD media player slot.
07
Integrated sensors
Ambient light, temperature and NFC sensors are built in; an external human sensor is optional.
08
24/7 operation
Rated for continuous 24/7 use, with a three-year warranty that includes the backlight.
Specifications
45 specificationsGeneral
CompatibilityNative multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Vista, Mac OS
Key FeaturesShadowSense optical touch, 10 touches, Full HD, 700 nits, OPS slot, Compute Module slot, 24/7 operation
ModelP554 SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, USB cable, power cable, remote control, user manual, user guides CD
Display
BacklightEdge LED
Bezel Size33.6 mm (top/bottom), 33.7 mm (left/right)
Brightness700 nits
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1
OrientationLandscape, portrait, face up
Panel TechnologyS-IPS
Resolution1920 x 1080 (Full HD)
Response Time8 ms (grey-to-grey)
Screen Size55 inch
Touch Accuracy< 1.5 mm
Touch Points10-point multi-touch
Touch Resolution4096 x 4096 (8-bit)
Touch Response Time6 to 8 ms
Touch TechnologyOptical (ShadowSense)
Viewing Angle178° / 178°
Audio
Audio In3.5 mm jack × 2
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 2 (HDCP); DisplayPort Out × 1 (loop-through)
Speaker Output10 W + 10 W (integrated)
Connectivity
EthernetLAN 100 Mbit × 1 In, × 1 Out
ExpansionCompute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
HDMI InputsHDMI × 2 (HDCP)
OPS SlotOPS slot (NEC / Intel OPS standard)
SD Card SlotmicroSD (media player) × 1
Serial PortRS-232 × 1
Touch USB PortsUSB Type-B × 1 (upstream, USB-HID)
USB PortsUSB 2.0 media player × 1; USB 2.0 service × 1
VGA InputVGA × 1
Power
Power Consumption130 W (Eco, as shipped)
Standby Power< 0.5 W (ECO standby); < 3 W (networked standby)
Physical
Dimensions1282.5 x 757.5 x 82.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount300 x 300 mm (FDMI, M6)
Weight45 kg
Compliance
CertificationsCE, EMC Class B, RoHS
IP RatingIP5X (front), IP2X (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync 55-inch ShadowSense Touch Interactive Flat Panel – P554 SST — datasheets, manuals, drawings and certificates.
- Datasheet – MultiSync P Series – P554 SST Datasheet
- User manual – MultiSync P Series – NEC P404 V404 P484 V484 P554 V554 CD EN V07
- User manual – MultiSync P Series – NEC P404 V404 P484 V484 P554 V554 CD SA V06
- Brochure – NEC (covers 96 models)
- Control protocol (RS232 / LAN) – MultiSync V Series
- Control protocol (RS232 / LAN) – MultiSync V Series
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC P554 SST use?
It uses NEC ShadowSense, an optical touch technology, with real multi-touch up to 10 touches. Touch response is 6 to 8 ms, accuracy is below 1.5 mm and touch resolution is 4096 x 4096. Input works with a finger, gloves or a stylus of 4 mm or larger.
Does ShadowSense touch work in bright light?
NEC states that ambient light rejection works up to full sunlight, which suits bright rooms and lobbies. The panel itself reaches 700 nits (500 nits in the Eco shipment setting), and the front of the display is rated IP5X.
What resolution does the P554 SST have?
The P554 SST has a native resolution of 1920 x 1080 (Full HD) on a 55-inch S-IPS panel with a 1200:1 contrast ratio. It also accepts higher input signals up to 4096 x 2160. Supported video inputs are VGA, DVI-D, HDMI and DisplayPort.
Can a PC or compute module be fitted inside the display?
Yes. The display has an OPS slot following the NEC / Intel Open Pluggable Specification, which accepts Intel Atom, Celeron and Core slot-in PCs, and a Compute Module 3 slot for the NEC Compute Module or Raspberry Pi Compute Module 1 and 3.
How is the NEC P554 SST mounted?
It has four M6 VESA (FDMI) mounting holes in a 300 x 300 mm pattern. The display weighs 45 kg and measures 1,282.5 x 757.5 x 82.8 mm. NEC lists wall mounts, trolleys and feet (ST-401) as accessories for this model.
