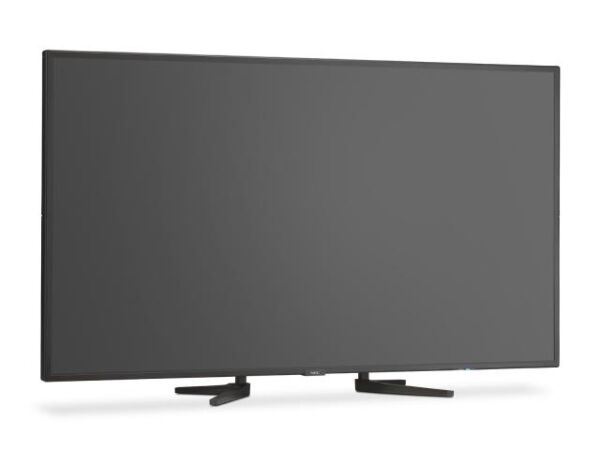

NEC MultiSync 55-inch ShadowSense Touch Interactive Flat Panel – P554 SST
The NEC MultiSync P554 SST is a 55-inch Full HD interactive flat panel with ShadowSense optical touch, supporting up to 10 simultaneous touches. It has a 700 nits S-IPS panel, an OPS slot and a Compute Module slot, and is rated for 24/7 operation. Procure.ae, an authorised NEC reseller in Dubai, supplies it across the UAE.
The P554 SST pairs a 55-inch S-IPS panel with edge LED backlights and a native resolution of 1920 x 1080. Brightness is 700 nits (500 nits in the Eco shipment setting), contrast is 1200:1 and the viewing angle is 178 degrees in both directions. ShadowSense optical touch tracks up to 10 touches with a 6 to 8 ms response time, accuracy below 1.5 mm and a touch resolution of 4096 x 4096. It rejects ambient light up to full sunlight and accepts finger, glove and stylus (4 mm or larger) input.
Inputs include VGA, DVI-D, two HDMI and two DisplayPort connections, with a DisplayPort loop-through output, RS-232 and LAN. The OPS slot accepts NEC / Intel OPS modules, and the Compute Module 3 slot takes the NEC Compute Module or Raspberry Pi Compute Module 1 and 3. Native multi-touch works on Windows 7 to 11, Linux and Android. Mounting uses a 300 x 300 mm VESA (FDMI) pattern with M6 screws, and an integrated NFC sensor works with a free NEC Android app.
Key features
Specifications
| Compatibility | Native multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Vista, Mac OS |
| Key Features | ShadowSense optical touch, 10 touches, Full HD, 700 nits, OPS slot, Compute Module slot, 24/7 operation |
| Model | P554 SST |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, USB cable, power cable, remote control, user manual, user guides CD |
| Backlight | Edge LED |
| Bezel Size | 33.6 mm (top/bottom), 33.7 mm (left/right) |
| Brightness | 700 nits |
| Color Depth | 10-bit (1.073 billion colours) |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape, portrait, face up |
| Panel Technology | S-IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 55 inch |
| Touch Accuracy | < 1.5 mm |
| Touch Points | 10-point multi-touch |
| Touch Resolution | 4096 x 4096 (8-bit) |
| Touch Response Time | 6 to 8 ms |
| Touch Technology | Optical (ShadowSense) |
| Viewing Angle | 178° / 178° |
| Audio In | 3.5 mm jack × 2 |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 2 (HDCP); DisplayPort Out × 1 (loop-through) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | LAN 100 Mbit × 1 In, × 1 Out |
| Expansion | Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3) |
| HDMI Inputs | HDMI × 2 (HDCP) |
| OPS Slot | OPS slot (NEC / Intel OPS standard) |
| SD Card Slot | microSD (media player) × 1 |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | USB Type-B × 1 (upstream, USB-HID) |
| USB Ports | USB 2.0 media player × 1; USB 2.0 service × 1 |
| VGA Input | VGA × 1 |
| Power Consumption | 130 W (Eco, as shipped) |
| Standby Power | < 0.5 W (ECO standby); < 3 W (networked standby) |
| Dimensions | 1282.5 x 757.5 x 82.8 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 300 x 300 mm (FDMI, M6) |
| Weight | 45 kg |
| Certifications | CE, EMC Class B, RoHS |
| IP Rating | IP5X (front), IP2X (back) |
| Warranty | 3 years (including backlight) |
