NECInteractive Flat PanelsSKU P484 SST

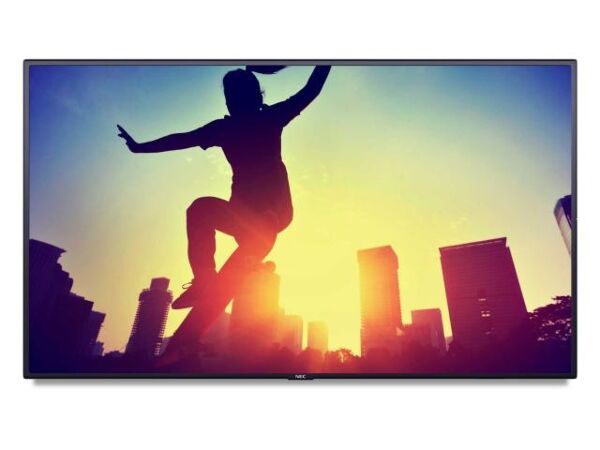

NEC MultiSync 48-inch Full HD ShadowSense Touch Interactive Flat Panel – P484 SST
The NEC MultiSync P484 SST is a 48-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. It works with a finger, gloves or a stylus, rejects ambient light up to full sunlight and runs 24/7. It suits classrooms, meeting rooms and public spaces, and Procure.ae supplies it in the UAE.
The NEC MultiSync P484 SST is a 48-inch S-PVA panel with edge LED backlighting at a native 1920 x 1080 resolution. Brightness is 700 nits (500 nits in the Eco shipment setting), contrast is 4,000:1 and viewing angles are 178 degrees. ShadowSense optical touch tracks up to 10 touches with accuracy under 1.5 mm and 12-bit (4096 x 4096) touch resolution, accepts finger, glove and stylus input of 4 mm or more, and is rated for 24/7 operation.
Video inputs are one VGA, one DVI-D, two DisplayPort and two HDMI, with a DisplayPort loop-through output, LAN, RS-232 and USB. An OPS slot and a Compute Module 3 slot (NEC Compute Module or Raspberry Pi Compute Module 1 and 3) allow a built-in computer. Touch is native multi-touch on Windows 7 to 11, Linux and Android. It mounts on a 300 x 300 mm VESA (FDMI) pattern.
Screen Size
48 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits (500 nits Eco setting)
Touch Technology
Optical (ShadowSense)
- ShadowSense optical touch
- Glove and stylus input
- Sunlight rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense optical touch
tracks up to 10 touches with accuracy under 1.5 mm and a 6 to 8 ms touch response.
02
Glove and stylus input
works with a finger, gloves or a stylus of 4 mm or larger.
03
Sunlight rejection
ambient light rejection up to full sunlight, about 100,000 lux.
04
Full HD S-PVA panel
48-inch edge LED panel at 1920 x 1080 with 700 nits (500 nits Eco setting).
05
Wide input set
VGA, DVI-D, two DisplayPort and two HDMI inputs, plus a DisplayPort loop-through output.
06
OPS and Compute Module slots
accepts OPS modules and NEC or Raspberry Pi Compute Modules.
07
Built-in sensors
ambient light, temperature and NFC sensors, with an optional external human sensor.
08
24/7 operation
rated for continuous operation with a 3-year warranty including the backlight.
Specifications
45 specificationsGeneral
CompatibilityTouch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS
Key FeaturesShadowSense optical touch, 10 touches, glove and stylus input, sunlight rejection, OPS slot, Compute Module slot, NFC sensor, 24/7 operation
ModelP484 SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DVI-D cable, power cable, USB cable, remote control, user manual, CD-ROM
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size34.1 mm (top/bottom), 34.2 mm (left/right)
Brightness700 nits (500 nits Eco setting)
Color Depth1.07 billion colours (10-bit)
Contrast Ratio4,000:1
OrientationLandscape, portrait
Panel TechnologyS-PVA
Resolution1920 x 1080 (Full HD)
Response Time8 ms (grey-to-grey)
Screen Size48 inch
Touch Accuracy< 1.5 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyOptical (ShadowSense)
Viewing Angle178° horizontal / 178° vertical
Audio
AudioIntegrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers)
Audio In3.5 mm analogue jack × 2; digital via HDMI and DisplayPort
Audio Out3.5 mm analogue jack × 1
DisplayPortDisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through)
Connectivity
EthernetLAN 100 Mbit (in and out)
ExpansionNEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
HDMI InputsHDMI In × 2 (HDCP)
OPS SlotOPS (Open Pluggable Specification) slot
PortsVGA × 1, DVI-D × 1, DisplayPort In × 2, HDMI In × 2, DisplayPort Out × 1, USB, microSD, LAN, RS-232, 3.5 mm audio in/out
Serial PortRS-232
USB PortsUSB 2.0 × 1 (media player), USB 2.0 × 1 (service), USB Type-B × 1 (touch upstream), USB 2.0 × 2 (Compute Module)
VGA InputVGA × 1
Power
Power Consumption115 W (Eco shipment setting)
Standby Power< 0.5 W (ECO standby)
Physical
Dimensions1123.3 x 665.5 x 75.1 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount300 x 300 mm (FDMI), M6
Weight30.5 kg
Compliance
CertificationsCE, EMC Class B, RoHS
IP RatingIP5X (front), IP2X (back)
Warranty3 years including backlight
Downloads
Manufacturer documents for the NEC MultiSync 48-inch Full HD ShadowSense Touch Interactive Flat Panel – P484 SST — datasheets, manuals, drawings and certificates.
- Datasheet – MultiSync P Series – P484 SST Datasheet
- User manual – MultiSync P Series – NEC P404 V404 P484 V484 P554 V554 CD EN V07
- User manual – MultiSync P Series – NEC P404 V404 P484 V484 P554 V554 CD SA V06
- Brochure – NEC (covers 96 models)
- Control protocol (RS232 / LAN) – MultiSync V Series
- Control protocol (RS232 / LAN) – MultiSync V Series
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC MultiSync P484 SST use?
It uses ShadowSense optical touch with real multi-touch for up to 10 touches. Input comes from a finger, gloves or a stylus of 4 mm or larger, with accuracy under 1.5 mm, 12-bit (4096 x 4096) touch resolution and a 6 to 8 ms response. The manufacturer states ambient light rejection up to full sunlight (about 100,000 lux).
What resolution and inputs does the P484 SST have?
The native resolution is 1920 x 1080 (Full HD). Inputs are one VGA, one DVI-D, two DisplayPort and two HDMI, with a DisplayPort loop-through output. Control interfaces are LAN 100 Mbit (in and out), RS-232 and a 3.5 mm remote-control jack, with USB ports for the media player and touch connection.
Which operating systems support P484 SST touch?
Native multi-touch is listed for Windows 7 to 11, Linux and Android. Windows XP, Windows Vista and Mac OS use default mouse behaviour. Touch is sent over USB-HID through the USB Type-B upstream port, so connect it to the source computer along with the video cable.
Can the P484 SST take a built-in computer?
Yes. It has an OPS slot and a Compute Module 3 slot that accepts an NEC Compute Module or a Raspberry Pi Compute Module 1 or 3. The manufacturer lists OPS options such as Intel Atom, Celeron and Core CPUs and an HDBaseT receiver. These are optional parts, so confirm them when requesting a quote.
How is the P484 SST mounted?
It has a 300 x 300 mm VESA (FDMI) pattern with four M6 holes. It measures 1,123.3 x 665.5 x 75.1 mm, has a bezel of about 34 mm and weighs 30.5 kg. Choose a wall mount or trolley rated for that weight. Procure.ae can arrange delivery and installation across the UAE.
Can I buy the NEC MultiSync P484 SST in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
