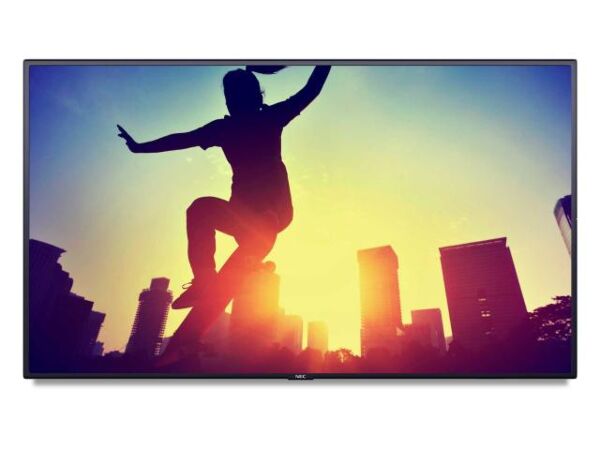

NEC MultiSync 48-inch Full HD ShadowSense Touch Interactive Flat Panel – P484 SST
The NEC MultiSync P484 SST is a 48-inch Full HD interactive flat panel with ShadowSense optical touch for up to 10 simultaneous touches. It works with a finger, gloves or a stylus, rejects ambient light up to full sunlight and runs 24/7. It suits classrooms, meeting rooms and public spaces, and Procure.ae supplies it in the UAE.
The NEC MultiSync P484 SST is a 48-inch S-PVA panel with edge LED backlighting at a native 1920 x 1080 resolution. Brightness is 700 nits (500 nits in the Eco shipment setting), contrast is 4,000:1 and viewing angles are 178 degrees. ShadowSense optical touch tracks up to 10 touches with accuracy under 1.5 mm and 12-bit (4096 x 4096) touch resolution, accepts finger, glove and stylus input of 4 mm or more, and is rated for 24/7 operation.
Video inputs are one VGA, one DVI-D, two DisplayPort and two HDMI, with a DisplayPort loop-through output, LAN, RS-232 and USB. An OPS slot and a Compute Module 3 slot (NEC Compute Module or Raspberry Pi Compute Module 1 and 3) allow a built-in computer. Touch is native multi-touch on Windows 7 to 11, Linux and Android. It mounts on a 300 x 300 mm VESA (FDMI) pattern.
Key features
Specifications
| Compatibility | Touch: native multi-touch on Windows 7 to 11, Linux, Android; mouse mode on Windows XP, Vista, Mac OS |
| Key Features | ShadowSense optical touch, 10 touches, glove and stylus input, sunlight rejection, OPS slot, Compute Module slot, NFC sensor, 24/7 operation |
| Model | P484 SST |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DVI-D cable, power cable, USB cable, remote control, user manual, CD-ROM |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 34.1 mm (top/bottom), 34.2 mm (left/right) |
| Brightness | 700 nits (500 nits Eco setting) |
| Color Depth | 1.07 billion colours (10-bit) |
| Contrast Ratio | 4,000:1 |
| Orientation | Landscape, portrait |
| Panel Technology | S-PVA |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 48 inch |
| Touch Accuracy | < 1.5 mm |
| Touch Points | 10-point multi-touch |
| Touch Resolution | 12-bit (4096 x 4096) |
| Touch Response Time | 6 to 8 ms |
| Touch Technology | Optical (ShadowSense) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Audio | Integrated speakers, 10 W + 10 W (optional 15 W + 15 W speakers) |
| Audio In | 3.5 mm analogue jack × 2; digital via HDMI and DisplayPort |
| Audio Out | 3.5 mm analogue jack × 1 |
| DisplayPort | DisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through) |
| Ethernet | LAN 100 Mbit (in and out) |
| Expansion | NEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3) |
| HDMI Inputs | HDMI In × 2 (HDCP) |
| OPS Slot | OPS (Open Pluggable Specification) slot |
| Ports | VGA × 1, DVI-D × 1, DisplayPort In × 2, HDMI In × 2, DisplayPort Out × 1, USB, microSD, LAN, RS-232, 3.5 mm audio in/out |
| Serial Port | RS-232 |
| USB Ports | USB 2.0 × 1 (media player), USB 2.0 × 1 (service), USB Type-B × 1 (touch upstream), USB 2.0 × 2 (Compute Module) |
| VGA Input | VGA × 1 |
| Power Consumption | 115 W (Eco shipment setting) |
| Standby Power | < 0.5 W (ECO standby) |
| Dimensions | 1123.3 x 665.5 x 75.1 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 300 x 300 mm (FDMI), M6 |
| Weight | 30.5 kg |
| Certifications | CE, EMC Class B, RoHS |
| IP Rating | IP5X (front), IP2X (back) |
| Warranty | 3 years including backlight |
