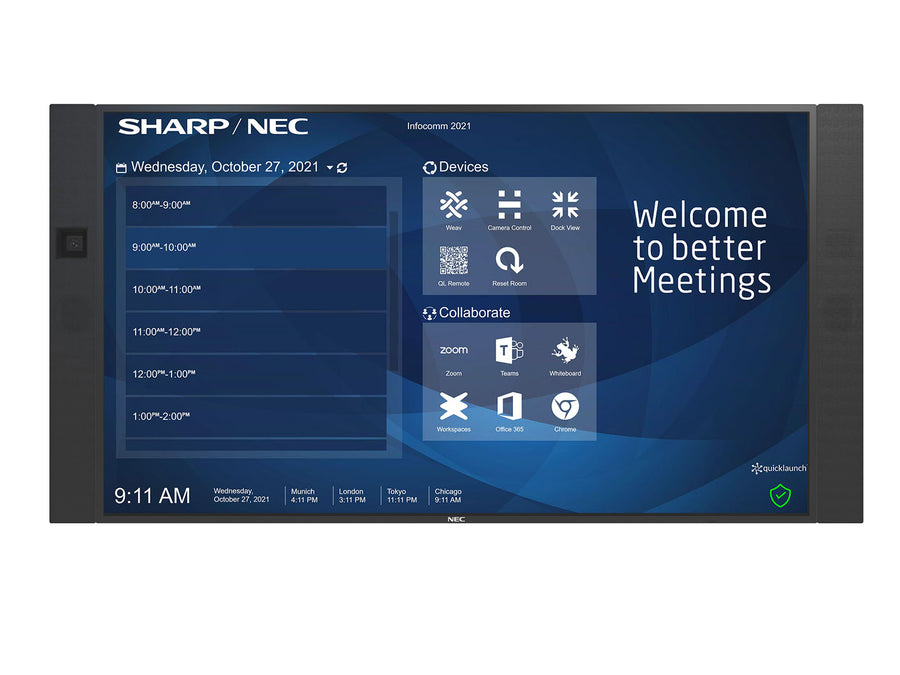

NEC InfinityBoard 2.2 QL 86-inch interactive flat panel with Huddly IQ camera

NEC

Interactive Flat PanelsSKU 86-inch InfinityBoard 2.2 QL

NEC InfinityBoard 2.2 QL 86-inch Interactive Flat Panel

Name: NEC InfinityBoard 2.2 QL 86-inch Interactive Flat Panel
Brand: NEC
SKU: 86-inch InfinityBoard 2.2 QL
Availability: InStock

The NEC InfinityBoard 2.2 QL is a discontinued 86-inch interactive flat panel for meeting rooms, with a 4K UHD IPS touch display, up to 20 touch points, a Huddly IQ camera and Quicklaunch meeting software. It includes a built-in Windows 10 Professional PC with 16 GB RAM. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.

The InfinityBoard 2.2 QL uses an 86-inch 4K UHD (3840 x 2160) IPS panel with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. The InGlass touch layer supports up to 20 real touch points, with palm rejection, Windows Ink and touch accuracy below 1 mm. Quicklaunch is a meeting room interface with multi-platform integration that turns the InfinityBoard into a one-click meeting space.

The built-in PC is an Intel Core i7-7820EQ with 16 GB RAM and a 256 GB SSD, and the OPS and Compute Module 3 slots allow other computing options. Two DisplayPort and three HDMI inputs, LAN and RS232 control, and four USB 3.0 hub ports connect sources and room systems. The open platform is not restricted to particular software, video conferencing apps or infrastructure, according to the manufacturer. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits

Touch Technology

InGlass

20-Point Multi-Touch
Quicklaunch Interface
4K UHD IPS Display

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

20-Point Multi-Touch

InGlass touch supports up to 20 real touches with a response time of 15 ms or less.

Quicklaunch Interface

One-click meeting room access with multi-platform integration.

4K UHD IPS Display

86-inch panel at 3840 x 2160 with 500 nits brightness and 1,200:1 typical contrast.

Palm Rejection

Palm rejection and Windows Ink support writing and drawing on the screen.

Huddly IQ Camera

Built-in ultra-wide camera with 1080p output at 30 fps and 3x lossless digital zoom.

Built-in Windows PC

Intel Core i7-7820EQ with 16 GB RAM and 256 GB SSD, running Windows 10 Professional.

FlatFrog Board for Rooms

Included collaboration software with a one-year licence, available as a free download.

Specifications

41 specifications

General

ControlsLAN, RS232, 3.5 mm remote control input

Key Features20-point multi-touch, 4K UHD IPS display, palm rejection, Huddly IQ camera, slot-in PC, Quicklaunch meeting interface, Windows Ink, FlatFrog Board for Rooms

Model86-inch InfinityBoard 2.2 QL

TypeInteractive Flat Panel

What's in the BoxDisplay, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables

Display

Aspect Ratio16:9

BacklightEdge LED

Bezel Size19.8 mm (top/bottom), 20.3 mm (left/right)

Brightness500 nits

CameraHuddly IQ, 1080p at 30 fps, 3x lossless digital zoom

Contrast Ratio1,200:1

Panel TechnologyIPS

Resolution3840 x 2160 (4K UHD)

Response Time8 ms (grey-to-grey, typical)

Screen Size86 inch

Touch Accuracy< 1 mm

Touch Points20-point multi-touch

Touch Response Time15 ms

Touch TechnologyInGlass

Viewing Angle178° horizontal / 178° vertical

Performance

GraphicsIntel 630 integrated graphics (Gen9-LP)

LicenseFlatFrog Board for Rooms (1 year, free download)

Operating SystemWindows 10 Professional (slot-in PC)

ProcessorIntel Core i7-7820EQ (4 cores, up to 3.7 GHz)

RAM16 GB DDR4

Storage256 GB SSD

Audio

AudioSide-mounted speakers; 3.5 mm audio in and out

Connectivity

ExpansionCompute Module 3 slot (proprietary standard)

OPS SlotOpen pluggable specification (Intel OPS standard)

PortsHDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1

Wi-FiDual-band 802.11ac, Bluetooth 4.2

Power

Power Consumption242 W (shipping)

Physical

Dimensions2192 x 1142 x 86 mm (without stand)

Duty Cycle24/7

Operating Humidity20% to 80% RH

Operating Temperature0 to 35 °C

VESA Mount400 x 400 mm; 600 x 400 mm

Weight91.7 kg (without stand)

Compliance

CertificationsCE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B

IP RatingIP5x (front); IP2x (back)

Warranty3 years (including backlight)

Downloads

Manufacturer documents for the NEC InfinityBoard 2.2 QL 86-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the NEC InfinityBoard 2.2 QL?

The NEC InfinityBoard 2.2 QL is an 86-inch interactive flat panel for meeting rooms. It combines a 4K UHD IPS multi-touch display, palm rejection, a Huddly IQ camera, side-mounted speakers and a built-in Windows 10 Professional PC with Quicklaunch. The manufacturer lists this model as discontinued.

Does the InfinityBoard 2.2 QL work with Windows, Linux and Android?

Yes. The native multi-touch supports Windows 7 to 11, Linux and Android. The built-in PC runs Windows 10 Professional, and the manufacturer states the platform is not restricted to particular software, video conferencing apps or infrastructure.

What room size suits the InfinityBoard 2.2 QL?

The InfinityBoard 2.2 QL suits meeting rooms where several people present or collaborate at one large screen. The manufacturer's specifications do not state a room size range, so Procure.ae can advise on viewing distance and layout for your room.

How is the InfinityBoard 2.2 QL mounted?

The panel has 400 x 400 mm and 600 x 400 mm VESA mounting patterns, plus M8 holes. The manufacturer lists trolleys PD02MHA and PD03MHA and the PDW T XL-2 wall mount as accessories. Procure.ae can confirm the right mount for your setup.

Can the InfinityBoard 2.2 QL connect to other systems?

Yes. It has LAN 100 Mbit and RS232 control, a 3.5 mm remote control input, a microSD media slot and USB ports. The manufacturer lists FlatFrog Board for Rooms as free software, and an optional external human sensor can trigger programmed actions.

Can I buy the NEC InfinityBoard 2.2 QL in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
