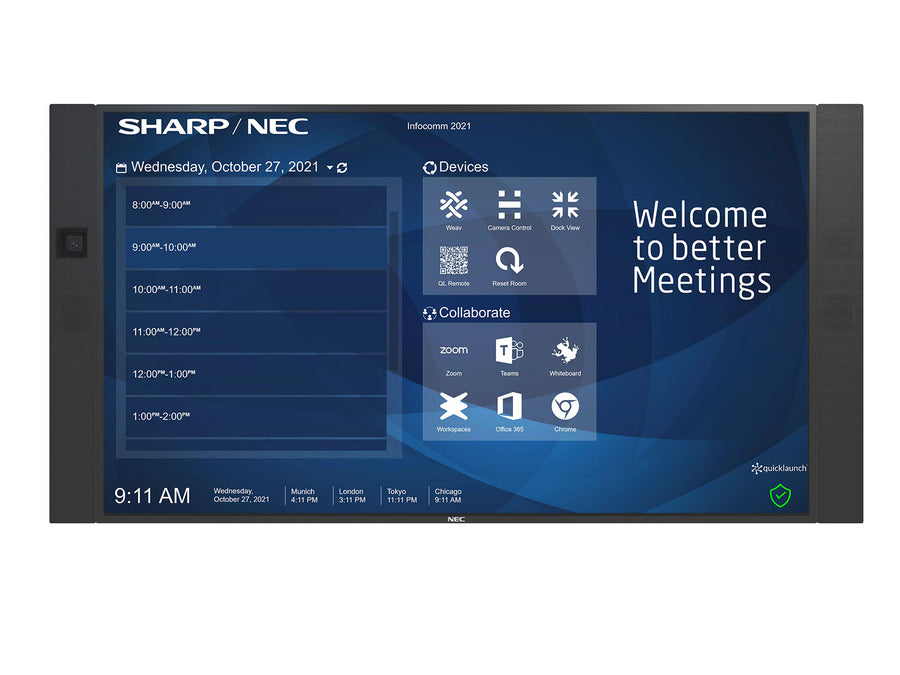

NEC InfinityBoard 2.2 QL 86-inch Interactive Flat Panel
The NEC InfinityBoard 2.2 QL is a discontinued 86-inch interactive flat panel for meeting rooms, with a 4K UHD IPS touch display, up to 20 touch points, a Huddly IQ camera and Quicklaunch meeting software. It includes a built-in Windows 10 Professional PC with 16 GB RAM. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.
The InfinityBoard 2.2 QL uses an 86-inch 4K UHD (3840 x 2160) IPS panel with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. The InGlass touch layer supports up to 20 real touch points, with palm rejection, Windows Ink and touch accuracy below 1 mm. Quicklaunch is a meeting room interface with multi-platform integration that turns the InfinityBoard into a one-click meeting space.
The built-in PC is an Intel Core i7-7820EQ with 16 GB RAM and a 256 GB SSD, and the OPS and Compute Module 3 slots allow other computing options. Two DisplayPort and three HDMI inputs, LAN and RS232 control, and four USB 3.0 hub ports connect sources and room systems. The open platform is not restricted to particular software, video conferencing apps or infrastructure, according to the manufacturer. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes.
Key features
Specifications
| Controls | LAN, RS232, 3.5 mm remote control input |
| Key Features | 20-point multi-touch, 4K UHD IPS display, palm rejection, Huddly IQ camera, slot-in PC, Quicklaunch meeting interface, Windows Ink, FlatFrog Board for Rooms |
| Model | 86-inch InfinityBoard 2.2 QL |
| Type | Interactive Flat Panel |
| What's in the Box | Display, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 19.8 mm (top/bottom), 20.3 mm (left/right) |
| Brightness | 500 nits |
| Camera | Huddly IQ, 1080p at 30 fps, 3x lossless digital zoom |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey, typical) |
| Screen Size | 86 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 15 ms |
| Touch Technology | InGlass |
| Viewing Angle | 178° horizontal / 178° vertical |
| Graphics | Intel 630 integrated graphics (Gen9-LP) |
| License | FlatFrog Board for Rooms (1 year, free download) |
| Operating System | Windows 10 Professional (slot-in PC) |
| Processor | Intel Core i7-7820EQ (4 cores, up to 3.7 GHz) |
| RAM | 16 GB DDR4 |
| Storage | 256 GB SSD |
| Audio | Side-mounted speakers; 3.5 mm audio in and out |
| Expansion | Compute Module 3 slot (proprietary standard) |
| OPS Slot | Open pluggable specification (Intel OPS standard) |
| Ports | HDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1 |
| Wi-Fi | Dual-band 802.11ac, Bluetooth 4.2 |
| Power Consumption | 242 W (shipping) |
| Dimensions | 2192 x 1142 x 86 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm; 600 x 400 mm |
| Weight | 91.7 kg (without stand) |
| Certifications | CE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B |
| IP Rating | IP5x (front); IP2x (back) |
| Warranty | 3 years (including backlight) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
