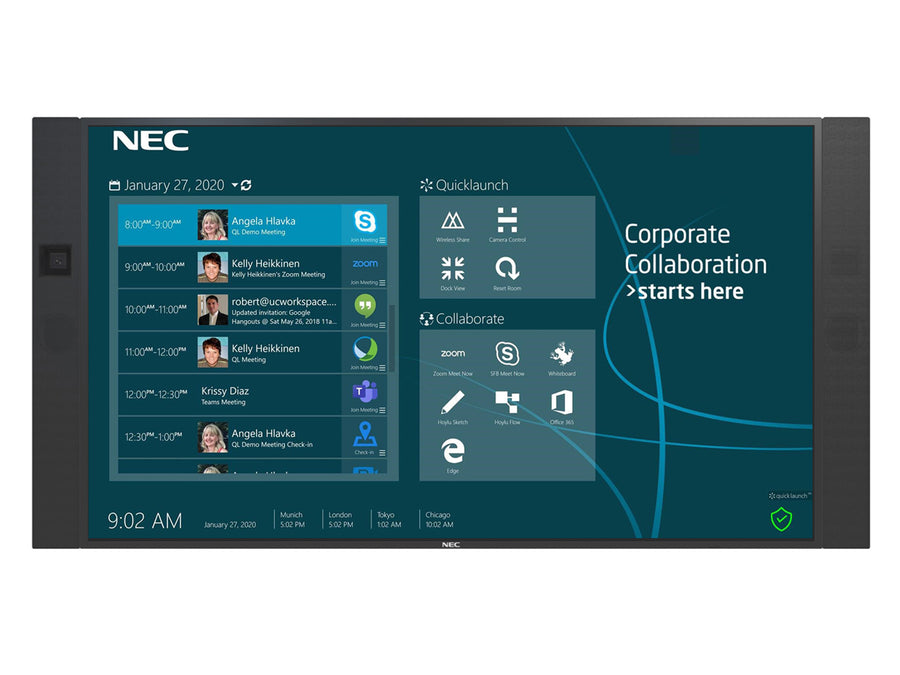

NEC InfinityBoard 2.1 QL 86-inch Interactive Flat Panel
The NEC InfinityBoard 2.1 QL is a discontinued 86-inch interactive flat panel for meeting rooms and collaboration spaces, with a 4K UHD IPS touch display, up to 20 touch points and a Huddly IQ camera. It includes a built-in Windows 10 Professional PC. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.
The InfinityBoard 2.1 QL pairs an 86-inch 4K UHD (3840 x 2160) IPS panel with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. Its InGlass touch layer supports up to 20 real touch points, with Windows Ink and touch accuracy below 1 mm. The integrated Huddly IQ camera outputs 1080p at 30 fps and offers 3x lossless digital zoom. Quicklaunch provides a one-click meeting room interface with multi-platform integration.
The open platform slot-in PC and Windows 10 Professional let the system work with any video conferencing app or infrastructure, according to the manufacturer, which states the platform is not restricted to particular software. The panel has two DisplayPort and three HDMI inputs, LAN and RS232 control, and four USB 3.0 hub ports. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes. Trolleys and wall mounts are listed as accessories.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
InGlass
- InGlass Multi-Touch
- 4K UHD IPS Display
- Huddly IQ Camera
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass Multi-Touch
Real multi-touch with up to 20 touches and a touch response time of 15 ms or less.
02
4K UHD IPS Display
86-inch panel at 3840 x 2160 with 500 nits brightness and 1,200:1 typical contrast.
03
Huddly IQ Camera
Built-in ultra-wide camera with 1080p output at 30 fps and 3x lossless digital zoom.
04
Built-in Windows PC
Intel Core i7-7820EQ with 16 GB RAM and 256 GB SSD, running Windows 10 Professional.
05
Quicklaunch Meeting Interface
One-click meeting room access with multi-platform integration.
06
Connectivity Hub
Two DisplayPort and three HDMI inputs, four USB 3.0 hub ports and LAN 100 Mbit control.
07
Compute Module Slot
Accepts NEC Compute Module and Raspberry Pi Compute Module 1 and 3.
Specifications
41 specificationsGeneral
ControlsLAN, RS232, 3.5 mm remote control input
Key Features20-point multi-touch, 4K UHD IPS display, Huddly IQ camera, slot-in PC, Compute Module slot, Quicklaunch meeting interface, Windows Ink, Mosaic Connect software
Model86-inch InfinityBoard 2.1 QL
TypeInteractive Flat Panel
What's in the BoxDisplay, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size19.8 mm (top/bottom), 20.3 mm (left/right)
Brightness500 nits
CameraHuddly IQ, 1080p at 30 fps, 3x lossless digital zoom
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey, typical)
Screen Size86 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time15 ms
Touch TechnologyInGlass
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsIntel 630 integrated graphics (Gen9-LP)
LicenseMosaic Connect (free software)
Operating SystemWindows 10 Professional (slot-in PC)
ProcessorIntel Core i7-7820EQ (4 cores, up to 3.7 GHz)
RAM16 GB DDR4
Storage256 GB SSD
Audio
AudioSide-mounted speakers; 3.5 mm audio in and out
Connectivity
ExpansionCompute Module 3 slot (proprietary standard)
OPS SlotOpen pluggable specification (Intel OPS standard)
PortsHDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1
Wi-FiDual-band 802.11ac, Bluetooth 4.2
Power
Power Consumption242 W (shipping)
Physical
Dimensions2192 x 1142 x 86 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm; 600 x 400 mm
Weight91.7 kg (without stand)
Compliance
CertificationsCE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B
IP RatingIP5x (front); IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC InfinityBoard 2.1 QL 86-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – 86-inch InfinityBoard 2.1 QL
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – InfinityBoard
- Drawing – InfinityBoard
- Drawing – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
Questions
Can’t find your answer? Ask on WhatsApp
What is the NEC InfinityBoard 2.1 QL?
The NEC InfinityBoard 2.1 QL is an 86-inch interactive flat panel for meeting rooms. It combines a 4K UHD IPS multi-touch display, a Huddly IQ camera, conference speakers and a built-in Windows 10 Professional PC in one unit. The manufacturer lists this model as discontinued.
Does the InfinityBoard 2.1 QL work with Windows, Linux and Android?
Yes. The native multi-touch supports Windows 7 to 11, Linux and Android, and the built-in PC runs Windows 10 Professional. The manufacturer states the platform is not restricted to particular software, video conferencing apps or infrastructure.
What room size suits the InfinityBoard 2.1 QL?
The InfinityBoard 2.1 QL suits meeting rooms where several people present or collaborate at one large screen. The manufacturer's specifications do not state a room size range, so Procure.ae can advise on viewing distance and layout for your room before you order.
How is the InfinityBoard 2.1 QL mounted?
The panel has 400 x 400 mm and 600 x 400 mm VESA mounting patterns, plus M8 holes. The manufacturer lists trolleys PD02MHA and PD03MHA and wall mounts BalanceBox 650 HEAVY and PDW T XL-2 as accessories. Procure.ae can confirm the right mount for your wall or floor setup.
Can the InfinityBoard 2.1 QL connect to other systems?
Yes. It has LAN 100 Mbit and RS232 control, a 3.5 mm remote control input, a microSD media slot and USB ports. The manufacturer lists Mosaic Connect as free software, and an optional external human sensor can trigger programmed actions.
