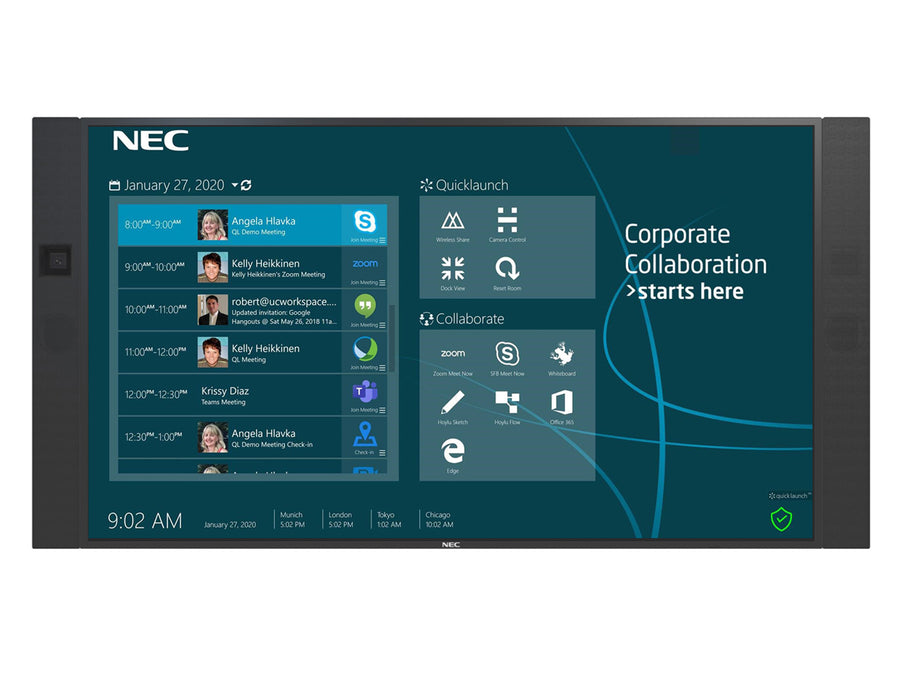

NEC InfinityBoard 2.1 QL 86-inch Interactive Flat Panel
The NEC InfinityBoard 2.1 QL is a discontinued 86-inch interactive flat panel for meeting rooms and collaboration spaces, with a 4K UHD IPS touch display, up to 20 touch points and a Huddly IQ camera. It includes a built-in Windows 10 Professional PC. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.
The InfinityBoard 2.1 QL pairs an 86-inch 4K UHD (3840 x 2160) IPS panel with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. Its InGlass touch layer supports up to 20 real touch points, with Windows Ink and touch accuracy below 1 mm. The integrated Huddly IQ camera outputs 1080p at 30 fps and offers 3x lossless digital zoom. Quicklaunch provides a one-click meeting room interface with multi-platform integration.
The open platform slot-in PC and Windows 10 Professional let the system work with any video conferencing app or infrastructure, according to the manufacturer, which states the platform is not restricted to particular software. The panel has two DisplayPort and three HDMI inputs, LAN and RS232 control, and four USB 3.0 hub ports. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes. Trolleys and wall mounts are listed as accessories.
Key features
Specifications
| Controls | LAN, RS232, 3.5 mm remote control input |
| Key Features | 20-point multi-touch, 4K UHD IPS display, Huddly IQ camera, slot-in PC, Compute Module slot, Quicklaunch meeting interface, Windows Ink, Mosaic Connect software |
| Model | 86-inch InfinityBoard 2.1 QL |
| Type | Interactive Flat Panel |
| What's in the Box | Display, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 19.8 mm (top/bottom), 20.3 mm (left/right) |
| Brightness | 500 nits |
| Camera | Huddly IQ, 1080p at 30 fps, 3x lossless digital zoom |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey, typical) |
| Screen Size | 86 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 15 ms |
| Touch Technology | InGlass |
| Viewing Angle | 178° horizontal / 178° vertical |
| Graphics | Intel 630 integrated graphics (Gen9-LP) |
| License | Mosaic Connect (free software) |
| Operating System | Windows 10 Professional (slot-in PC) |
| Processor | Intel Core i7-7820EQ (4 cores, up to 3.7 GHz) |
| RAM | 16 GB DDR4 |
| Storage | 256 GB SSD |
| Audio | Side-mounted speakers; 3.5 mm audio in and out |
| Expansion | Compute Module 3 slot (proprietary standard) |
| OPS Slot | Open pluggable specification (Intel OPS standard) |
| Ports | HDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1 |
| Wi-Fi | Dual-band 802.11ac, Bluetooth 4.2 |
| Power Consumption | 242 W (shipping) |
| Dimensions | 2192 x 1142 x 86 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm; 600 x 400 mm |
| Weight | 91.7 kg (without stand) |
| Certifications | CE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B |
| IP Rating | IP5x (front); IP2x (back) |
| Warranty | 3 years (including backlight) |
