NearityMeeting Room SolutionsSKU AM01

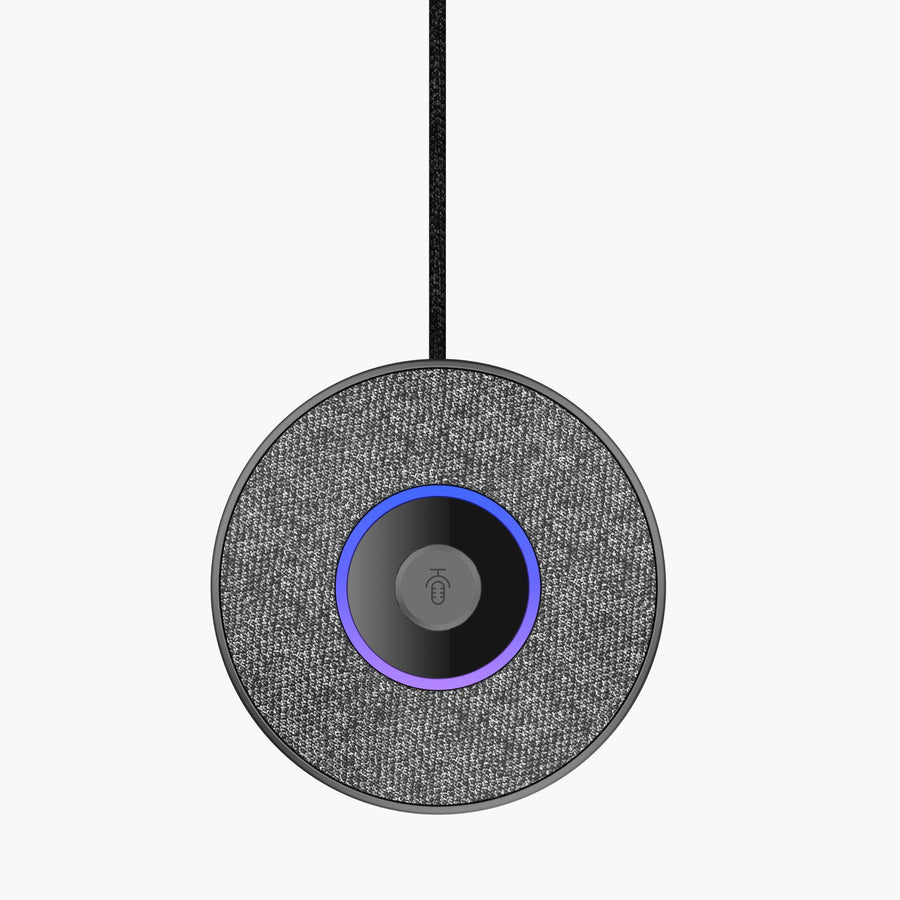

Nearity AM01 Omnidirectional Expansion Microphone – AM01
The Nearity AM01 is an external expansion microphone with omnidirectional MEMS pickup, an effective pickup distance of 3 m and a 5 m cable that connects through a 3.5 mm TRRS jack. It extends the pickup range of compatible Nearity products in meeting rooms. Procure.ae supplies the AM01 in the UAE.
The Nearity AM01 is a high-sensitivity MEMS microphone with 360° omnidirectional pickup, a sensitivity of -38 dBV/Pa and a signal-to-noise ratio of 72 dB (A-weighted). It samples audio at 48 kHz with 16-bit width. The 3.5 mm TRRS jack carries both audio and power, which reduces cabling and installation effort, and the 5 m cable lets the puck-shaped unit sit away from the host device.
The AM01 is a desktop unit measuring Ø80 x 23 mm and weighing 130 g, supplied in Starry Gray. It is plug and play and is designed to pair with Nearity products to extend their pickup range and improve audio quality. Check that the host device provides a TRRS expansion microphone connection before ordering, and Procure.ae can confirm compatibility for your Nearity equipment.
Type
Expansion Microphone (external tabl...
Weight
130 g
- Omnidirectional pickup
- MEMS microphone
- TRRS powered
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Omnidirectional pickup
The microphone captures sound over 360° within an effective 3 m distance.
02
MEMS microphone
A high-sensitivity MEMS element delivers -38 dBV/Pa sensitivity and 72 dB signal-to-noise ratio.
03
TRRS powered
The 3.5 mm TRRS connection supplies power and audio over a single cable.
04
Plug and play
A single 3.5 mm TRRS plug connects the microphone, with no separate power supply listed.
05
Long cable
The 5 m cable allows flexible placement on a meeting table.
06
Compact desktop design
The unit measures Ø80 x 23 mm and weighs 130 g.
Specifications
16 specificationsGeneral
Key FeaturesMEMS microphone, omnidirectional 360° pickup, 3 m pickup, 3.5 mm TRRS plug and play, TRRS powered, 5 m cable
ModelAM01
TypeExpansion Microphone (external tabletop microphone)
What's in the BoxAM01 microphone × 1
Audio
Microphone TypeMEMS
Pickup Range3 m
Polar PatternOmnidirectional (360°)
Sensitivity-38 dBV/Pa (94 dB SPL @ 1 kHz)
Signal-to-Noise Ratio72 dB (94 dB SPL @ 1 kHz, A-weighted)
Connectivity
Connector Type3.5 mm TRRS
Power
Power SourcePowered through the 3.5 mm TRRS connection
Physical
ColorStarry Gray
DimensionsØ80 x 23 mm
Length5 m (cable)
MountingDesktop
Weight130 g
Downloads
Manufacturer documents for the Nearity AM01 Omnidirectional Expansion Microphone – AM01 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the pickup range of the Nearity AM01?
The AM01 has an effective pickup distance of 3 meters with omnidirectional 360° coverage. It uses a high-sensitivity MEMS microphone with a 48 kHz sample rate and 16-bit width, and its cable length is 5 m.
How does the AM01 connect and get power?
It connects with a 3.5 mm TRRS plug on a 5 m cable, and power is supplied through that same TRRS connection. The manufacturer describes it as plug and play, with TRRS-powered operation that reduces cabling complexity and installation costs.
Is the Nearity AM01 compatible with my conferencing device?
The manufacturer states that the AM01 pairs with Nearity products to extend their pickup range, using a 3.5 mm TRRS audio interface. The datasheet does not list individual host models, so contact Procure.ae with your device model and we will confirm compatibility.
