MicrosoftMeeting Room SolutionsSKU Surface Hub Smart Camera

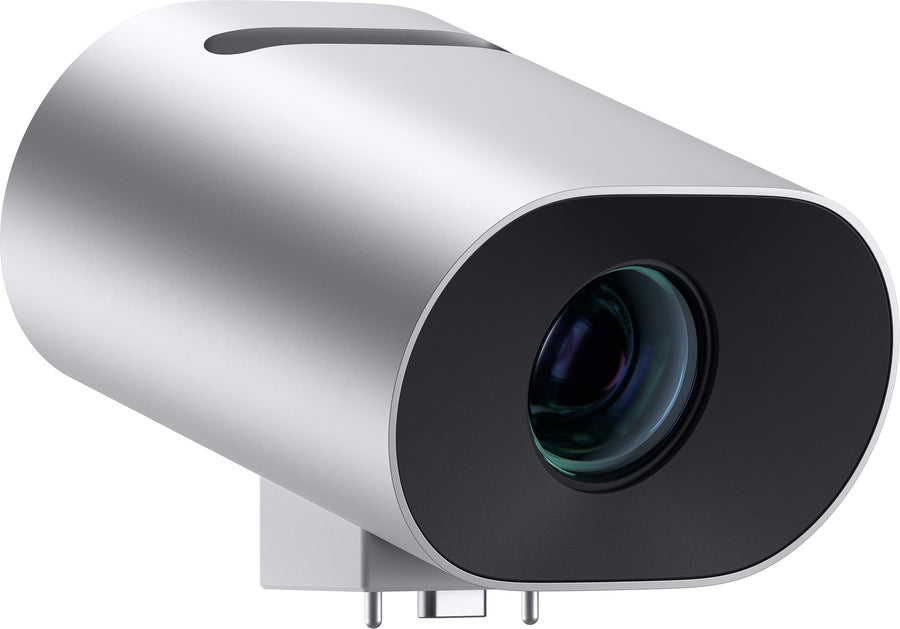

Microsoft Surface Hub Conference Camera – Surface Hub Smart Camera
The Microsoft Surface Hub Smart Camera is a conference camera for Surface Hub meeting rooms. It has a horizontal field of view above 136 degrees, a tilt range of ±20 degrees and a working distance of 1.0 to 7.4 m. Procure.ae supplies the Surface Hub Smart Camera across the UAE, with delivery and installation.
The camera uses a fixed-focus lens with 11 glass elements. Its horizontal field of view is above 136 degrees, so people in the room can move around and still be captured on camera within the 1.0 to 7.4 m working distance. The tilt range is 20 degrees up and 20 degrees down from horizontal, and the camera adjusts its de-warp mesh to the tilt angle Processing runs on an Intel Myriad X 2085 with 18 cores and 1 TFLOPS of DNN acceleration, with 1 GB DRAM and 8 GB eMMC storage that is not user accessible.
The Smart Camera is listed in the Surface Hub accessories series, so it is designed for Microsoft Surface Hub meeting rooms. A magnetic privacy cover attaches to the front of the camera, and a single white LED shows camera status when the camera is on. The manufacturer's specifications do not state a mounting kit or VESA pattern, so Procure.ae can advise on installation for your room during the quote.
Type
Conference Camera
Weight
180 g (with privacy cover)
- Wide field of view
- Working distance
- Tilt range
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wide field of view
Horizontal field of view above 136 degrees with a fixed-focus lens of 11 glass elements.
02
Working distance
Captures people between 1.0 and 7.4 m from the camera.
03
Tilt range
Tilts 20 degrees up and 20 degrees down from horizontal, with the image de-warped to stay natural.
04
Privacy cover
A magnetic cover attaches to the front of the camera and is included in the box.
05
On-board processing
Intel Myriad X 2085 processor with 18 cores and 1 TFLOPS of DNN acceleration.
06
Status indicator
One white LED shows camera status and is visible only when the camera is on.
07
Compact body
67 mm wide, 43 mm high (54.6 mm with foot) and 66 mm deep, weighing 180 g with the privacy cover.
Specifications
15 specificationsGeneral
CompatibilityMicrosoft Surface Hub
Key FeaturesMagnetic privacy cover, field of view above 136°, ±20° tilt, de-warped image, status LED
ModelSurface Hub Smart Camera
TypeConference Camera
What's in the BoxCamera with privacy cover; Quick Start Guide; safety and warranty documents
Display
CameraRGB camera module; horizontal field of view above 136°; working distance 1.0–7.4 m
Performance
ProcessorIntel Myriad X 2085 (18 cores, 1 TFLOPS DNN acceleration)
RAM1 GB DRAM
Storage8 GB eMMC (not user accessible)
Physical
ColorPlatinum
Dimensions67 x 43 x 66 mm (54.6 mm high with foot)
MaterialAnodised aluminium
Tilt±20° from horizontal
Weight180 g (with privacy cover)
Compliance
Warranty1 year limited hardware
Downloads
Manufacturer documents for the Microsoft Surface Hub Conference Camera – Surface Hub Smart Camera — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Surface Hub Smart Camera made for Microsoft Surface Hub?
Yes. It is listed in the Microsoft Surface Hub accessories series and is sold as the camera for Surface Hub video meetings. If you need confirmation for a specific Surface Hub model before ordering, ask Procure.ae to check it with you.
What room size does the Surface Hub Smart Camera cover?
Its working distance is 1.0 to 7.4 m, and its horizontal field of view is above 136 degrees. Position the camera so that participants sit inside that distance range, which keeps them in sharp focus across the table.
Can the camera tilt to frame the room?
Yes. The tilt range is 20 degrees up and 20 degrees down from horizontal. The camera adjusts its de-warp mesh to the tilt angle, so the image stays natural at each position.
Does the camera have a privacy cover?
Yes. A magnetic privacy cover attaches to the front of the camera and covers the lens when the camera is not in use. The box includes the camera with its cover, a Quick Start Guide, and safety and warranty documents.
Can I mount the Surface Hub Smart Camera on a wall or ceiling?
The manufacturer's specifications do not state a mounting kit or VESA pattern for the camera. Procure.ae can advise on installation across the UAE, including where the camera should sit in your meeting room.
Can I buy the Surface Hub Smart Camera in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
