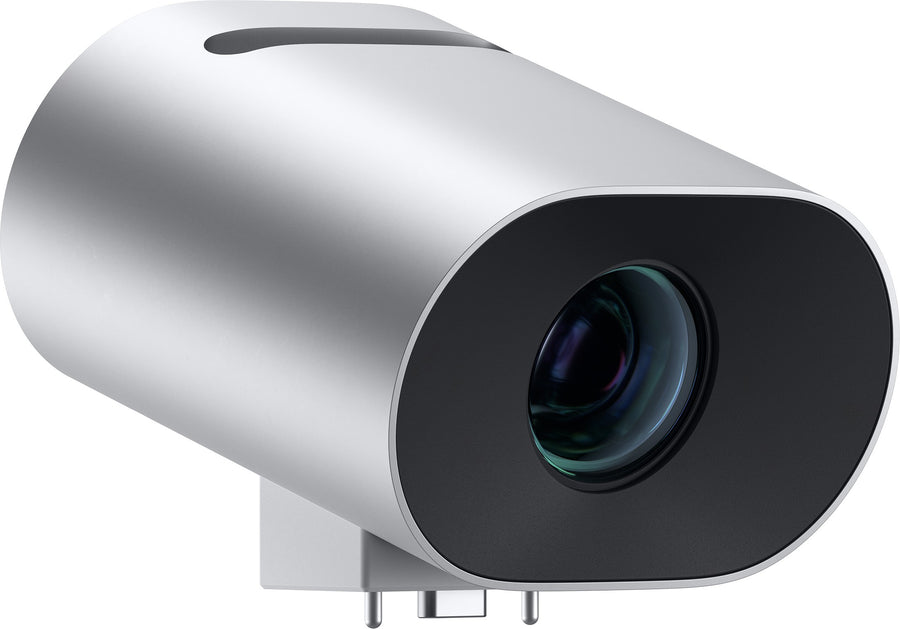

Microsoft Surface Hub Conference Camera – Surface Hub Smart Camera

The Microsoft Surface Hub Smart Camera is a conference camera for Surface Hub meeting rooms. It has a horizontal field of view above 136 degrees, a tilt range of ±20 degrees and a working distance of 1.0 to 7.4 m. Procure.ae supplies the Surface Hub Smart Camera across the UAE, with delivery and installation.

The camera uses a fixed-focus lens with 11 glass elements. Its horizontal field of view is above 136 degrees, so people in the room can move around and still be captured on camera within the 1.0 to 7.4 m working distance. The tilt range is 20 degrees up and 20 degrees down from horizontal, and the camera adjusts its de-warp mesh to the tilt angle Processing runs on an Intel Myriad X 2085 with 18 cores and 1 TFLOPS of DNN acceleration, with 1 GB DRAM and 8 GB eMMC storage that is not user accessible.

The Smart Camera is listed in the Surface Hub accessories series, so it is designed for Microsoft Surface Hub meeting rooms. A magnetic privacy cover attaches to the front of the camera, and a single white LED shows camera status when the camera is on. The manufacturer's specifications do not state a mounting kit or VESA pattern, so Procure.ae can advise on installation for your room during the quote.

Type

Conference Camera

Weight

180 g (with privacy cover)

Key features

Wide field of view

Horizontal field of view above 136 degrees with a fixed-focus lens of 11 glass elements.

Working distance

Captures people between 1.0 and 7.4 m from the camera.

Tilt range

Tilts 20 degrees up and 20 degrees down from horizontal, with the image de-warped to stay natural.

Privacy cover

A magnetic cover attaches to the front of the camera and is included in the box.

On-board processing

Intel Myriad X 2085 processor with 18 cores and 1 TFLOPS of DNN acceleration.

Status indicator

One white LED shows camera status and is visible only when the camera is on.

Compact body

67 mm wide, 43 mm high (54.6 mm with foot) and 66 mm deep, weighing 180 g with the privacy cover.

Specifications

General
Compatibility	Microsoft Surface Hub
Key Features	Magnetic privacy cover, field of view above 136°, ±20° tilt, de-warped image, status LED
Model	Surface Hub Smart Camera
Type	Conference Camera
What's in the Box	Camera with privacy cover; Quick Start Guide; safety and warranty documents

Display
Camera	RGB camera module; horizontal field of view above 136°; working distance 1.0–7.4 m

Performance
Processor	Intel Myriad X 2085 (18 cores, 1 TFLOPS DNN acceleration)
RAM	1 GB DRAM
Storage	8 GB eMMC (not user accessible)

Physical
Color	Platinum
Dimensions	67 x 43 x 66 mm (54.6 mm high with foot)
Material	Anodised aluminium
Tilt	±20° from horizontal
Weight	180 g (with privacy cover)

Compliance
Warranty	1 year limited hardware
