MAXHUB U3 Series 75-inch 4K Interactive Flat Panel – U7530

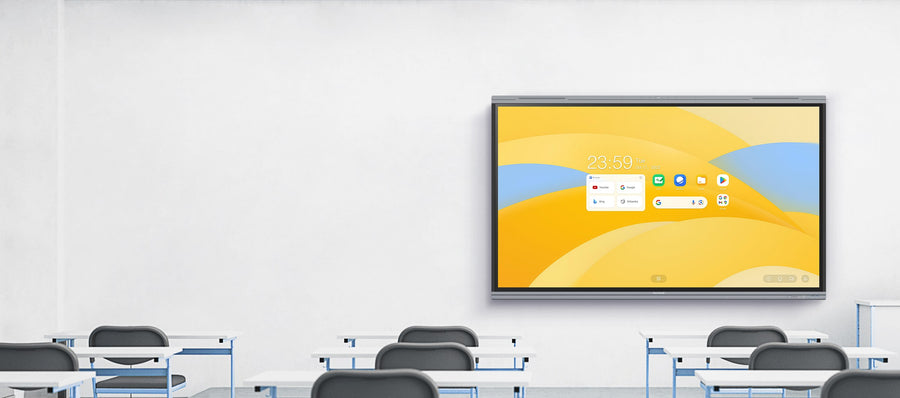

The MAXHUB U7530 is a 75-inch 4K UHD interactive flat panel for classrooms. It runs Android 13 with MAXHUB EDU OS V4.0, holds Google EDLA certification, and has a 50-point infrared touch surface and an 8-microphone array. Procure.ae supplies the MAXHUB U7530 across the UAE.
The U7530 has a 3840 x 2160 VA panel with 500 nits brightness, 5,000:1 typical contrast and colour accuracy of ΔE ≤1.5. Its infrared touchscreen supports 50 touch points with ±0.5 mm accuracy, response time of 2.5 ms or less and writing height of 1 mm or less. The octa-core processor has a 6 TOPS NPU, 8 GB RAM and 64 GB storage. The 8-microphone array picks up voices from 0 to 10 m, and the 2.2-channel speakers are rated at 2×8 W + 2×18 W output.
The U7530 suits classrooms, collaborative learning spaces and meeting rooms that use Google apps and accounts. Four HDMI inputs, a DisplayPort input and two USB Type-C ports connect laptops and other sources, and the front USB-C port supplies up to 100 W PD. Optional OPS modules, the UC W31 camera and the ST41B mobile stand extend the unit. The 65-inch U6530 draws 195 W typical and the 86-inch U8630 draws 375 W.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- Infrared multi-touch
- Android 13 platform
- Google EDLA certified
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared multi-touch
50 touch points, ±0.5 mm touch accuracy and response time of 2.5 ms or less.
02
Android 13 platform
runs MAXHUB EDU OS V4.0 with Google Play, Google Drive and Google Meet access.
03
Google EDLA certified
holds Google EDLA certification alongside TÜV Flicker Free and TÜV Low Blue Light.
04
Eye-care and anti-bacterial
TÜV Flicker Free, TÜV Low Blue Light and TÜV/SGS/SIAA anti-bacterial certifications.
05
8-microphone array
0 to 10 m pick-up range for classroom voices.
06
2.2-channel speakers
2×8 W + 2×18 W output, rated 2×12 W + 2×25 W maximum.
07
Connectivity
four HDMI inputs, a DisplayPort input, and USB-C ports with 100 W PD at the front and 15 W PD at the rear.
08
Wi-Fi 6 and Bluetooth 5.2
802.11ax Wi-Fi on 2.4 GHz and 5 GHz, with Bluetooth 5.2 built in.
Specifications
47 specificationsGeneral
CompatibilityWindows 11/10/8/7, Android, Linux, Mac OS X, Chrome (touch return)
Key FeaturesGoogle EDLA certified, MAXHUB EDU OS V4.0, Android 13, 50-point touch, 8-microphone array, 2.2-channel speakers, Wi-Fi 6, 100 W PD USB-C
ModelU7530
TypeInteractive Flat Panel
What's in the BoxPower cord (3 m), HDMI cable (3 m), USB touch cable Type A-B (3 m), remote control, 2 styluses, WIB9060G wall mount
Display
Aspect Ratio16:9
BacklightDLED
Brightness500 nits
Color Depth10-bit (1.07B colours)
Color Gamut72% NTSC
Contrast Ratio5,000:1 typical, 50,000:1 dynamic
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Response Time≤2.5 ms
Touch TechnologyInfrared
Viewing Angle178° (H/V)
Performance
Operating SystemAndroid 13
ProcessorOcta-core (4× Cortex-A76 + 4× Cortex-A55), 6 TOPS NPU
RAM8 GB
Storage64 GB
Audio
Microphone8-microphone array
Pickup Range0-10 m
Speaker Output2.2 channel, 2×8 W + 2×18 W output (2×12 W + 2×25 W maximum)
Connectivity
BluetoothBluetooth 5.2
ConnectivityHDMI 4K@60 Hz, DisplayPort, USB-C (100 W PD front, 15 W PD rear; video, audio, touch, charge, LAN), RJ45
Input Voltage100–240 V AC, 50/60 Hz, 4.0 A
OPS Slot1 OPS slot (optional OPS62A / OPS72A)
PortsHDMI IN × 4, HDMI OUT × 1, DisplayPort IN × 1, USB 3.0 × 4, USB Type-C × 2, RJ45 IN × 1, RS232 × 1, audio out × 1, SPDIF × 1
USB-C Ports2 ports: front up to 100 W PD, rear up to 15 W PD
Wi-FiWi-Fi 6 (802.11a/b/g/n/ac/ax), 2.4 GHz / 5 GHz, SI07B module
Power
Power Consumption320 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions1709.4 x 1031 x 85.7 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1863 x 1148 x 225 mm
Shipping Weight60.75 kg
Surface Protection9H tempered glass, 3 mm, non-glare
VESA Mount800 x 400 mm
Weight51.46 kg
Compliance
CertificationsGoogle EDLA, TÜV Flicker Free, TÜV Low Blue Light, TÜV/SGS/SIAA anti-bacterial
IP RatingIP5X (dust resistance)
Downloads
Manufacturer documents for the MAXHUB U3 Series 75-inch 4K Interactive Flat Panel – U7530 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the MAXHUB U7530 run Android?
Yes. It runs Android 13 with MAXHUB EDU OS V4.0 and gives access to Google Play, Google Drive, Google Meet and YouTube. It has 8 GB RAM, 64 GB storage and a 6 TOPS NPU.
Is the MAXHUB U7530 Google EDLA certified?
Yes. The MAXHUB U3 Series holds Google EDLA certification. MAXHUB EDU OS V4.0 includes the MAXHUB Class whiteboard tool, MAXHUB Connect for screen sharing and MAXHUB Pivot for device management.
Can the MAXHUB U7530 be wall mounted?
Yes. It uses an 800 x 400 mm VESA pattern with M8 x 25 mm wall-hanging screws. The WIB9060G wall mount brings the thickness to 116 mm. The net weight is 51.46 kg, so use a bracket rated for that load.
How do I connect a laptop to the MAXHUB U7530?
Use one of the four HDMI inputs (up to 4K at 60 Hz), the DisplayPort input (4K at 30 Hz), or a USB-C port, which carries video, audio, touch, charging and LAN.
Can the MAXHUB U7530 charge a laptop while it is connected?
Yes. The front USB Type-C port supplies up to 100 W Power Delivery, and the rear USB-C port supplies up to 15 W PD. Charging runs alongside video, audio and touch on the same cable.
