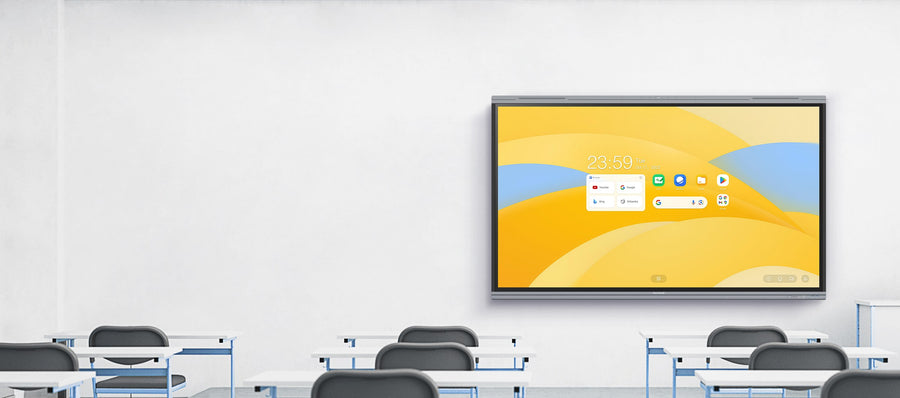

MAXHUB U3 Series 75-inch 4K Interactive Flat Panel – U7530
The MAXHUB U7530 is a 75-inch 4K UHD interactive flat panel for classrooms. It runs Android 13 with MAXHUB EDU OS V4.0, holds Google EDLA certification, and has a 50-point infrared touch surface and an 8-microphone array. Procure.ae supplies the MAXHUB U7530 across the UAE.
The U7530 has a 3840 x 2160 VA panel with 500 nits brightness, 5,000:1 typical contrast and colour accuracy of ΔE ≤1.5. Its infrared touchscreen supports 50 touch points with ±0.5 mm accuracy, response time of 2.5 ms or less and writing height of 1 mm or less. The octa-core processor has a 6 TOPS NPU, 8 GB RAM and 64 GB storage. The 8-microphone array picks up voices from 0 to 10 m, and the 2.2-channel speakers are rated at 2×8 W + 2×18 W output.
The U7530 suits classrooms, collaborative learning spaces and meeting rooms that use Google apps and accounts. Four HDMI inputs, a DisplayPort input and two USB Type-C ports connect laptops and other sources, and the front USB-C port supplies up to 100 W PD. Optional OPS modules, the UC W31 camera and the ST41B mobile stand extend the unit. The 65-inch U6530 draws 195 W typical and the 86-inch U8630 draws 375 W.
Key features
Specifications
| Compatibility | Windows 11/10/8/7, Android, Linux, Mac OS X, Chrome (touch return) |
| Key Features | Google EDLA certified, MAXHUB EDU OS V4.0, Android 13, 50-point touch, 8-microphone array, 2.2-channel speakers, Wi-Fi 6, 100 W PD USB-C |
| Model | U7530 |
| Type | Interactive Flat Panel |
| What's in the Box | Power cord (3 m), HDMI cable (3 m), USB touch cable Type A-B (3 m), remote control, 2 styluses, WIB9060G wall mount |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 500 nits |
| Color Depth | 10-bit (1.07B colours) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 5,000:1 typical, 50,000:1 dynamic |
| Panel Technology | VA |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6.5 ms |
| Screen Size | 75 inch |
| Touch Accuracy | ±0.5 mm |
| Touch Points | 50-point multi-touch |
| Touch Response Time | ≤2.5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H/V) |
| Operating System | Android 13 |
| Processor | Octa-core (4× Cortex-A76 + 4× Cortex-A55), 6 TOPS NPU |
| RAM | 8 GB |
| Storage | 64 GB |
| Microphone | 8-microphone array |
| Pickup Range | 0-10 m |
| Speaker Output | 2.2 channel, 2×8 W + 2×18 W output (2×12 W + 2×25 W maximum) |
| Bluetooth | Bluetooth 5.2 |
| Connectivity | HDMI 4K@60 Hz, DisplayPort, USB-C (100 W PD front, 15 W PD rear; video, audio, touch, charge, LAN), RJ45 |
| Input Voltage | 100–240 V AC, 50/60 Hz, 4.0 A |
| OPS Slot | 1 OPS slot (optional OPS62A / OPS72A) |
| Ports | HDMI IN × 4, HDMI OUT × 1, DisplayPort IN × 1, USB 3.0 × 4, USB Type-C × 2, RJ45 IN × 1, RS232 × 1, audio out × 1, SPDIF × 1 |
| USB-C Ports | 2 ports: front up to 100 W PD, rear up to 15 W PD |
| Wi-Fi | Wi-Fi 6 (802.11a/b/g/n/ac/ax), 2.4 GHz / 5 GHz, SI07B module |
| Power Consumption | 320 W (typical) |
| Standby Power | ≤ 0.5 W |
| Dimensions | 1709.4 x 1031 x 85.7 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1863 x 1148 x 225 mm |
| Shipping Weight | 60.75 kg |
| Surface Protection | 9H tempered glass, 3 mm, non-glare |
| VESA Mount | 800 x 400 mm |
| Weight | 51.46 kg |
| Certifications | Google EDLA, TÜV Flicker Free, TÜV Low Blue Light, TÜV/SGS/SIAA anti-bacterial |
| IP Rating | IP5X (dust resistance) |
