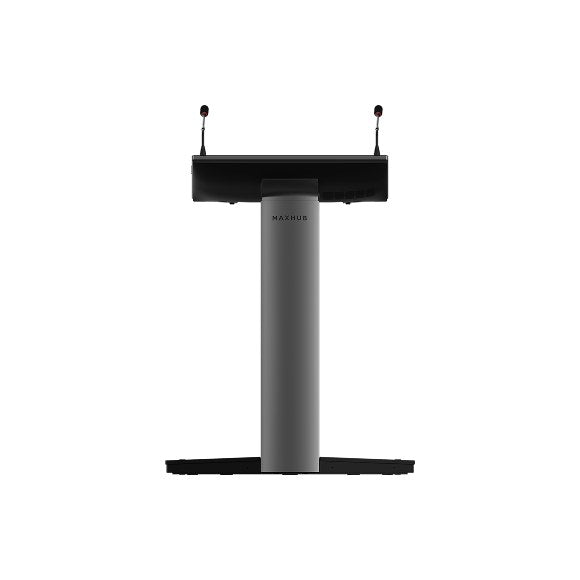

MAXHUB SL22MC Smart Lectern with 21.5-inch touchscreen and gooseneck microphoneMAXHUB
Meeting Room SolutionsSKU Smart Lectern

MAXHUB Smart Lectern 21.5-inch Touchscreen Podium – SL22MC

The MAXHUB SL22MC Smart Lectern is a floor-standing presentation podium with a 21.5-inch 1920 x 1080 capacitive touchscreen, a built-in Windows 10 IoT Enterprise PC module and electric height adjustment from 1.0 m to 1.2 m. It suits classrooms, lecture halls and boardrooms, and Procure.ae supplies it in the UAE.

The SL22MC combines a full-lamination display (450 nits with glass, 1,000:1 contrast, 178° viewing angle) with 10-point capacitive touch for fingers and an active capacitive pen, including palm rejection and ±1.5 mm accuracy. The integrated OPS72C PC module has an Intel Core i5-1240P processor, 16 GB RAM and 256 GB storage. Two gooseneck microphones pick up speech from 0 to 0.30 m, and dual-band Wi-Fi 802.11 a/b/g/n/ac supports wireless screen sharing within 10 m.

The column provides HDMI Out, XLR, 6.5 mm and 3.5 mm audio outputs, a Gigabit RJ45 port and USB 2.0 ports, so it can feed a projector, a display or a PA system. The manufacturer states it is compatible with MAXHUB All-in-one LED Wall and commercial displays. Two casters make it easy to move between rooms, and the manual advises fixing the base for long-term use. The datasheet lists a 3-year warranty.

Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits (with glass, typical)
Touch Technology
Capacitive (finger and active capac...
  • Electric height adjustment
  • Capacitive touchscreen
  • Integrated PC module
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Electric height adjustment
The lectern lifts and lowers between 1.0 m and 1.2 m at 0.9 cm/s using the built-in motor.
02
Capacitive touchscreen
The 21.5-inch panel supports 10 touch points, finger and active capacitive pen input, and palm rejection.
03
Integrated PC module
An OPS72C module with Intel Core i5-1240P, 16 GB RAM and 256 GB storage runs Windows 10 IoT Enterprise.
04
Built-in microphones
Two gooseneck microphones are included, with a pickup distance of 0 to 0.30 m.
05
Wireless screen sharing
Dual-band Wi-Fi (2.4 GHz and 5 GHz, 802.11 a/b/g/n/ac) works within a range of 10 m.
06
Multiple audio outputs
Audio is available through XLR, 6.5 mm and two 3.5 mm outputs, plus an HDMI Out port.

Specifications

36 specifications
General
CompatibilityMAXHUB All-in-one LED Wall and commercial displays
Key Features21.5-inch capacitive touchscreen, electric height adjustment, built-in PC module, 2 gooseneck microphones, wireless screen sharing, XLR audio out
ModelSmart Lectern
TypeSmart Lectern (touchscreen podium with built-in PC)
What's in the BoxPower cord, HDMI cable, HDMI bridge cable, audio bridge cable, smart pen, 2 gooseneck microphones
Display
Aspect Ratio16:9
BacklightELED
Brightness450 nits (with glass, typical)
Color Gamut72% NTSC
Contrast Ratio1,000:1
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time14 ms
Screen Size21.5 inch
Touch Accuracy±1.5 mm
Touch Points10-point multi-touch
Touch TechnologyCapacitive (finger and active capacitive pen)
Viewing Angle178° (H/V)
Performance
Operating SystemWindows 10 IoT Enterprise
ProcessorIntel Core i5-1240P (1.7 GHz), OPS72C PC module
RAM16 GB
Storage256 GB
Audio
Audio OutXLR × 1, 6.5 mm × 1, 3.5 mm × 2
Microphone2 × gooseneck microphone, 0 to 0.30 m pickup
Connectivity
EthernetRJ45 × 1 (10/100/1000 Mbps)
HDMI OutputsHDMI Out × 1 (column base)
Input Voltage100–240 V AC, 50/60 Hz
USB PortsUSB 2.0 × 3 (2 on the side, 1 hidden for upgrade only)
Wi-Fi802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz
Power
Power Consumption120 W (max)
Physical
Form FactorFloor-standing lectern on 2 casters
Height Range1.0 to 1.2 m (electric lift)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight29.9 kg
Compliance
Warranty3 years

Questions

Can’t find your answer? Ask on WhatsApp

What computer is built into the MAXHUB SL22MC Smart Lectern?
It uses an OPS72C PC module with an Intel Core i5-1240P processor (1.7 GHz), 16 GB RAM and 256 GB storage, running Windows 10 IoT Enterprise. The module is integrated into the lectern, so a separate presenter PC is not needed for basic presentations.
How high does the SL22MC lectern adjust?
The electric lift moves the lectern between a minimum of 1.0 m and a maximum of 1.2 m. It travels at about 0.9 cm/s and is controlled with the physical Moving Up and Moving Down buttons on the unit.
What outputs does the SL22MC have for a display or sound system?
The base column offers one HDMI Out, one XLR output, one 6.5 mm audio output and 3.5 mm audio outputs. The manual notes that the HDMI bridge cable and audio bridge cable must connect the screen to the column for the column outputs to work.
Can I buy the MAXHUB SL22MC Smart Lectern in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
