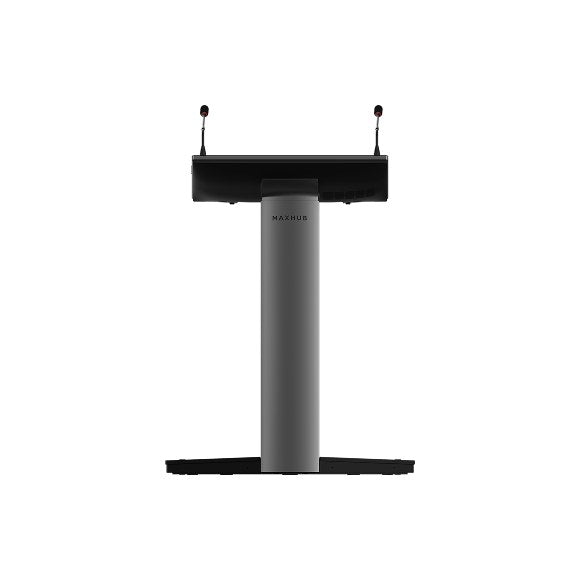

The MAXHUB SL22MC Smart Lectern is a floor-standing presentation podium with a 21.5-inch 1920 x 1080 capacitive touchscreen, a built-in Windows 10 IoT Enterprise PC module and electric height adjustment from 1.0 m to 1.2 m. It suits classrooms, lecture halls and boardrooms, and Procure.ae supplies it in the UAE.
The SL22MC combines a full-lamination display (450 nits with glass, 1,000:1 contrast, 178° viewing angle) with 10-point capacitive touch for fingers and an active capacitive pen, including palm rejection and ±1.5 mm accuracy. The integrated OPS72C PC module has an Intel Core i5-1240P processor, 16 GB RAM and 256 GB storage. Two gooseneck microphones pick up speech from 0 to 0.30 m, and dual-band Wi-Fi 802.11 a/b/g/n/ac supports wireless screen sharing within 10 m.
The column provides HDMI Out, XLR, 6.5 mm and 3.5 mm audio outputs, a Gigabit RJ45 port and USB 2.0 ports, so it can feed a projector, a display or a PA system. The manufacturer states it is compatible with MAXHUB All-in-one LED Wall and commercial displays. Two casters make it easy to move between rooms, and the manual advises fixing the base for long-term use. The datasheet lists a 3-year warranty.
| Compatibility | MAXHUB All-in-one LED Wall and commercial displays |
| Key Features | 21.5-inch capacitive touchscreen, electric height adjustment, built-in PC module, 2 gooseneck microphones, wireless screen sharing, XLR audio out |
| Model | Smart Lectern |
| Type | Smart Lectern (touchscreen podium with built-in PC) |
| What's in the Box | Power cord, HDMI cable, HDMI bridge cable, audio bridge cable, smart pen, 2 gooseneck microphones |
| Aspect Ratio | 16:9 |
| Backlight | ELED |
| Brightness | 450 nits (with glass, typical) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,000:1 |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 14 ms |
| Screen Size | 21.5 inch |
| Touch Accuracy | ±1.5 mm |
| Touch Points | 10-point multi-touch |
| Touch Technology | Capacitive (finger and active capacitive pen) |
| Viewing Angle | 178° (H/V) |
| Operating System | Windows 10 IoT Enterprise |
| Processor | Intel Core i5-1240P (1.7 GHz), OPS72C PC module |
| RAM | 16 GB |
| Storage | 256 GB |
| Audio Out | XLR × 1, 6.5 mm × 1, 3.5 mm × 2 |
| Microphone | 2 × gooseneck microphone, 0 to 0.30 m pickup |
| Ethernet | RJ45 × 1 (10/100/1000 Mbps) |
| HDMI Outputs | HDMI Out × 1 (column base) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| USB Ports | USB 2.0 × 3 (2 on the side, 1 hidden for upgrade only) |
| Wi-Fi | 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz |
| Power Consumption | 120 W (max) |
| Form Factor | Floor-standing lectern on 2 casters |
| Height Range | 1.0 to 1.2 m (electric lift) |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Weight | 29.9 kg |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
