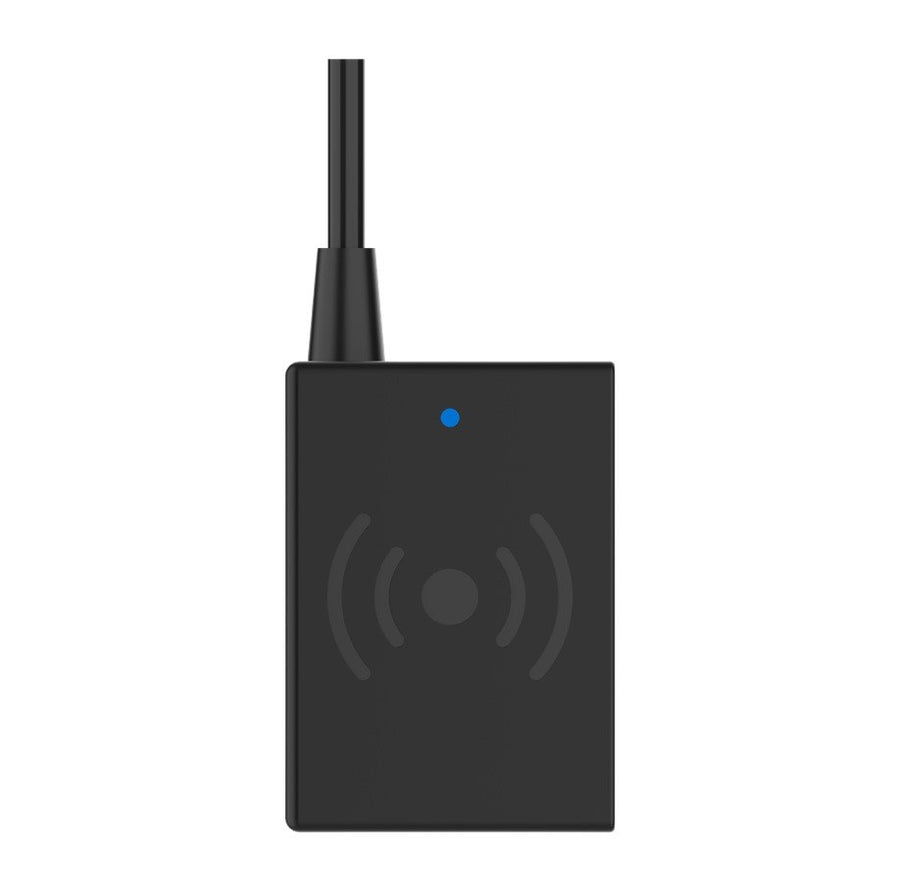

MAXHUB Sensor Box – WL10C
The MAXHUB Sensor Box WL10C is an add-on module for MAXHUB interactive flat panels that combines a PIR motion sensor, temperature and humidity sensors, PM2.5 and VOC air sensing, and an NFC reader/writer. It connects to the panel by USB. Procure.ae supplies the WL10C in the UAE.
The WL10C PIR sensor detects out to 7 m across an 80° horizontal angle. The temperature sensor covers 0 to 45 °C with ±3 °C accuracy and the humidity sensor covers 30% to 80%. The PM2.5 sensor reads 0 to 1000 µg/m³ and the VOC sensor reads 0 to 65000 ppb. The NFC reader/writer works at more than 2 cm and supports ISO/IEC 14443 and ISO/IEC 15693. One NFC card is supplied.
The WL10C is listed as an optional sensor box for the MAXHUB E3 Series. It locks to the bottom of the panel with screws, or fixes to a bracket in the lower left corner, and connects through a USB cable to the panel's USB interface. MAXHUB notes that the CO2 figure is calculated from TVOC readings rather than measured directly. The NFC-only MAXHUB NFC Box WL20 is a separate model.
Type
Sensor Box (PIR, Environment and NFC)
Weight
183 g
- Motion sensing
- Climate readings
- Air quality
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Motion sensing
PIR sensor with 0 to 7 m detection distance and an 80° horizontal angle.
02
Climate readings
temperature from 0 to 45 °C and humidity from 30% to 80%.
03
Air quality
PM2.5 from 0 to 1000 µg/m³ and VOC from 0 to 65000 ppb.
04
NFC reader/writer
supports ISO/IEC 14443 and ISO/IEC 15693 at more than 2 cm.
05
Panel mounting
screws to the bottom of the panel or to a lower-left bracket, powered over USB.
Specifications
19 specificationsGeneral
Key FeaturesPIR motion sensor, temperature, humidity, PM2.5, VOC, NFC reader/writer, USB connection
ModelSensor Box
TypeSensor Box (PIR, Environment and NFC)
What's in the BoxSensor box, NFC card × 1
Performance
AccuracyTemperature ±3 °C
FunctionsNFC reader/writer (> 2 cm), motion, temperature, humidity, PM2.5, VOC sensing
Measurement RangePM2.5 0–1000 µg/m³, VOC 0–65000 ppb, temperature 0–45 °C, humidity 30–80%
Storage Conditions-15 to 55 °C, 10% to 90% RH
Connectivity
ConnectivityUSB cable to panel USB port
Input Voltage5 V / 0.5 A
Operating RangePIR detection 0 to 7 m, 80° horizontal
ProtocolsNFC ISO/IEC 14443, ISO/IEC 15693
Physical
Dimensions206 x 69 x 31.7 mm
MountingScrewed to panel bottom or lower-left bracket
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions275 x 228 x 63 mm (1 pc)
Shipping Weight391 g (1 pc)
Weight183 g
Downloads
Manufacturer documents for the MAXHUB Sensor Box – WL10C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the MAXHUB WL10C sensor box measure?
The WL10C has a PIR motion sensor (0 to 7 m, 80° horizontal), temperature (0 to 45 °C, ±3 °C), humidity (30% to 80%), PM2.5 (0 to 1000 µg/m³) and VOC (0 to 65000 ppb) sensing. CO2 is calculated from TVOC rather than measured directly.
Does the WL10C include an NFC reader?
Yes. It is an NFC reader/writer with a detecting distance of more than 2 cm, supporting ISO/IEC 14443 and ISO/IEC 15693 cards. One NFC card is supplied in the package. The unit is powered at 5 V and 0.5 A.
How is the WL10C installed on a panel?
Disconnect the panel's power first. The sensor box locks to the bottom of the panel with screws, or fixes to a bracket in the panel's lower left corner, then a USB cable joins it to the panel's USB interface. It measures 206 × 69 × 31.7 mm and weighs 183 g.
