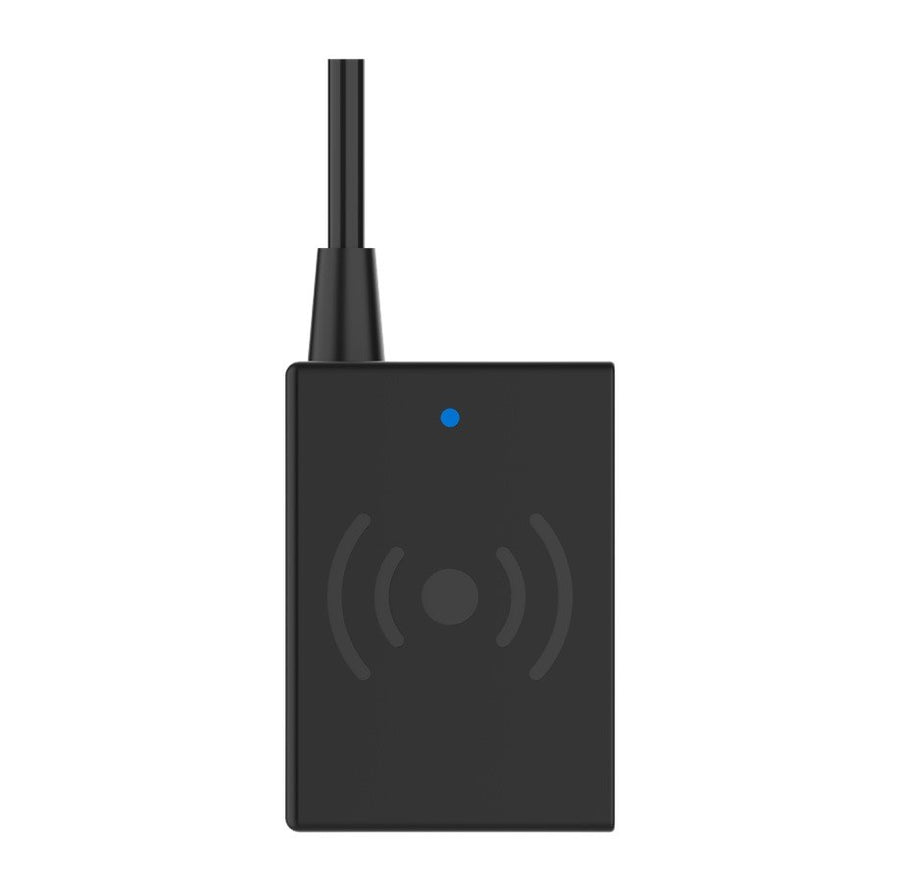

MAXHUB Sensor Box – WL10C
The MAXHUB Sensor Box WL10C is an add-on module for MAXHUB interactive flat panels that combines a PIR motion sensor, temperature and humidity sensors, PM2.5 and VOC air sensing, and an NFC reader/writer. It connects to the panel by USB. Procure.ae supplies the WL10C in the UAE.
The WL10C PIR sensor detects out to 7 m across an 80° horizontal angle. The temperature sensor covers 0 to 45 °C with ±3 °C accuracy and the humidity sensor covers 30% to 80%. The PM2.5 sensor reads 0 to 1000 µg/m³ and the VOC sensor reads 0 to 65000 ppb. The NFC reader/writer works at more than 2 cm and supports ISO/IEC 14443 and ISO/IEC 15693. One NFC card is supplied.
The WL10C is listed as an optional sensor box for the MAXHUB E3 Series. It locks to the bottom of the panel with screws, or fixes to a bracket in the lower left corner, and connects through a USB cable to the panel's USB interface. MAXHUB notes that the CO2 figure is calculated from TVOC readings rather than measured directly. The NFC-only MAXHUB NFC Box WL20 is a separate model.
Key features
Specifications
| Key Features | PIR motion sensor, temperature, humidity, PM2.5, VOC, NFC reader/writer, USB connection |
| Model | Sensor Box |
| Type | Sensor Box (PIR, Environment and NFC) |
| What's in the Box | Sensor box, NFC card × 1 |
| Accuracy | Temperature ±3 °C |
| Functions | NFC reader/writer (> 2 cm), motion, temperature, humidity, PM2.5, VOC sensing |
| Measurement Range | PM2.5 0–1000 µg/m³, VOC 0–65000 ppb, temperature 0–45 °C, humidity 30–80% |
| Storage Conditions | -15 to 55 °C, 10% to 90% RH |
| Connectivity | USB cable to panel USB port |
| Input Voltage | 5 V / 0.5 A |
| Operating Range | PIR detection 0 to 7 m, 80° horizontal |
| Protocols | NFC ISO/IEC 14443, ISO/IEC 15693 |
| Dimensions | 206 x 69 x 31.7 mm |
| Mounting | Screwed to panel bottom or lower-left bracket |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 275 x 228 x 63 mm (1 pc) |
| Shipping Weight | 391 g (1 pc) |
| Weight | 183 g |
