MAXHUB

Meeting Room SolutionsSKU Pluggable PC Module

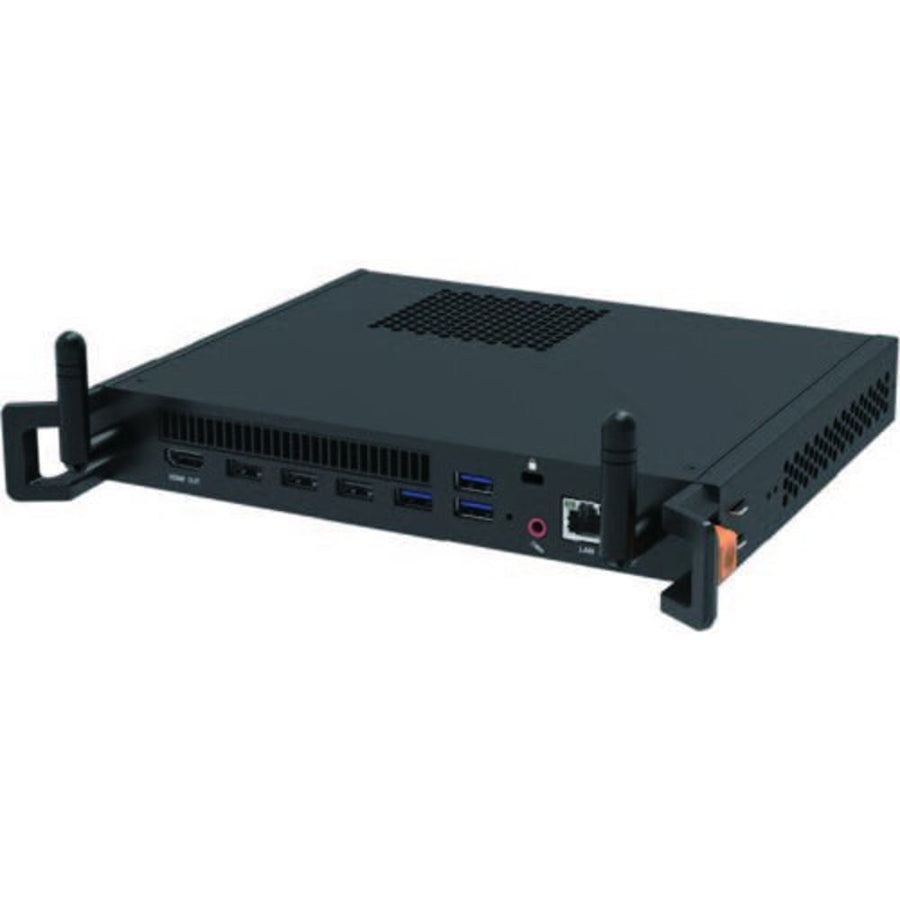

MAXHUB Pluggable OPS PC Module – OPS62A and OPS72A

Name: MAXHUB Pluggable OPS PC Module – OPS62A and OPS72A
Brand: MAXHUB
SKU: Pluggable PC Module
Availability: InStock

The MAXHUB Pluggable PC Module is an Open Pluggable Specification (OPS) computer in the OPS62A and OPS72A families, with Intel Core i5 or i7 processors, 8 GB or 16 GB RAM and SSD storage up to 512 GB. It slides into the OPS slot of a MAXHUB panel. Procure.ae supplies it in the UAE.

The OPS62A uses an 11th Gen Intel Core i5 or i7 with Intel UHD Graphics and Windows 10 IoT (64-bit), 8 GB or 16 GB RAM and 128 GB or 256 GB storage. The OPS72A uses 12th Gen Core i5 or i7, or a 13th Gen Core i5-13420H, with Intel Iris Xe Graphics, 8 GB or 16 GB DDR4-3200 RAM and 256 GB or 512 GB storage. Both families have four USB 3.0 ports, one USB Type-C port, gigabit RJ45, a microphone input and a line out.

The OPS72A adds a DisplayPort output rated to 7680 × 4320 at 60 Hz, HDMI 2.0 up to 3840 × 2160 at 60 Hz, and an M.2 Wi-Fi 6 module with Bluetooth 5.2 and two antennas. Both families draw power through the 80-pin OPS interface at 12 to 19 V. The OPS62A and OPS72A are listed as optional OPS modules for the MAXHUB E3 Series, which has an OPS slot.

Type

OPS Pluggable PC Module

Weight

0.75 kg (OPS62A), 0.6 kg (OPS72A)

OPS standard
Intel processors
Memory and storage

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

OPS standard

fits panels with an OPS slot and draws power through the 80-pin OPS interface.

Intel processors

OPS62A uses 11th Gen Core; OPS72A uses 12th Gen or 13th Gen Core i5 or i7.

Memory and storage

8 GB or 16 GB RAM and SSD storage from 128 GB to 512 GB, depending on variant.

Connectivity

four USB 3.0, one USB Type-C, gigabit RJ45, microphone in and line out.

4K output

HDMI up to 4K at 60 Hz on OPS72A, and up to 4K at 30 fps on OPS62A.

Windows OS

Windows 10 IoT on OPS62A and Windows 10/11 or Windows 11 Pro on OPS72A.

Specifications

28 specifications

General

Key FeaturesOpen Pluggable Specification, Intel Core i5/i7, up to 16 GB RAM, up to 512 GB SSD, 4 USB 3.0, gigabit RJ45

ModelPluggable PC Module

TypeOPS Pluggable PC Module

Performance

GraphicsIntel UHD Graphics (OPS62A); Intel Iris Xe Graphics (OPS72A)

Memory TypeDDR4-3200 SODIMM (OPS72A)

Operating SystemWindows 10 IoT 64-bit (OPS62A); Windows 10/11 64-bit or Windows 11 Pro (OPS72A)

Processor11th Gen Intel Core i5/i7 (OPS62A); 12th Gen Core i5/i7 or 13th Gen Core i5-13420H (OPS72A)

RAM8 GB or 16 GB

Storage128 GB to 512 GB SSD, depending on variant

Audio

Audio InMicrophone in × 1

Audio OutLine out × 1

DisplayPortDisplayPort Out × 1, up to 7680 x 4320@60 Hz (OPS72A)

Connectivity

BluetoothBluetooth 5.2 (OPS72A)

EthernetRJ45 × 1 (10/100/1000 Mbps)

HDMI OutputsHDMI Out × 1 (4K@30 on OPS62A, 4K@60 on OPS72A)

Input Voltage12–19 V DC

USB PortsUSB 3.0 × 4

USB-C PortsUSB-C × 1

Wi-FiWi-Fi 6 M.2 module (OPS72A)

Power

Power Consumption≤ 65 W (OPS62A), 80.7 W (OPS72A), maximum

Standby Power≤ 1.5 W (OPS62A), 2.9 W (OPS72A)

Physical

Dimensions202 x 133.5 x 30 mm (OPS62A), 180 x 119 x 30 mm (OPS72A)

Form FactorOpen Pluggable Specification (OPS), 80-pin interface

Operating Humidity10% to 90% RH

Operating Temperature-10 to 50 °C (OPS62A), -10 to 45 °C (OPS72A)

Weight0.75 kg (OPS62A), 0.6 kg (OPS72A)

Compliance

CertificationsCE, CB, FCC, KC, BIS (OPS62A)

Warranty3 years (OPS62A)

Downloads

Manufacturer documents for the MAXHUB Pluggable OPS PC Module – OPS62A and OPS72A — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the difference between the MAXHUB OPS62A and OPS72A?

The OPS62A uses 11th Gen Intel Core processors with Intel UHD Graphics and Windows 10 IoT. The OPS72A uses 12th or 13th Gen Core processors with Iris Xe Graphics, adds a DisplayPort output and Wi-Fi 6 with Bluetooth 5.2, and is smaller at 180 × 119 × 30 mm.

What processor, memory and storage options are available?

OPS62A: Core i5 with 8 GB RAM and 128 GB or 256 GB storage, or Core i7 with 16 GB and 256 GB. OPS72A: 12th Gen i5 with 8 GB or 16 GB, 12th Gen i7 with 16 GB, or 13th Gen i5-13420H with 8 GB and 256 GB. Storage reaches 512 GB.

Is the OPS module compatible with the MAXHUB E3 Series?

Yes. The E3 Series datasheet lists the OPS62A and OPS72A as optional OPS modules, and the panel has one OPS slot. Procure.ae can confirm the right variant and operating system for your panel and software needs before you order.

Can I buy the OPS62A or OPS72A in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
