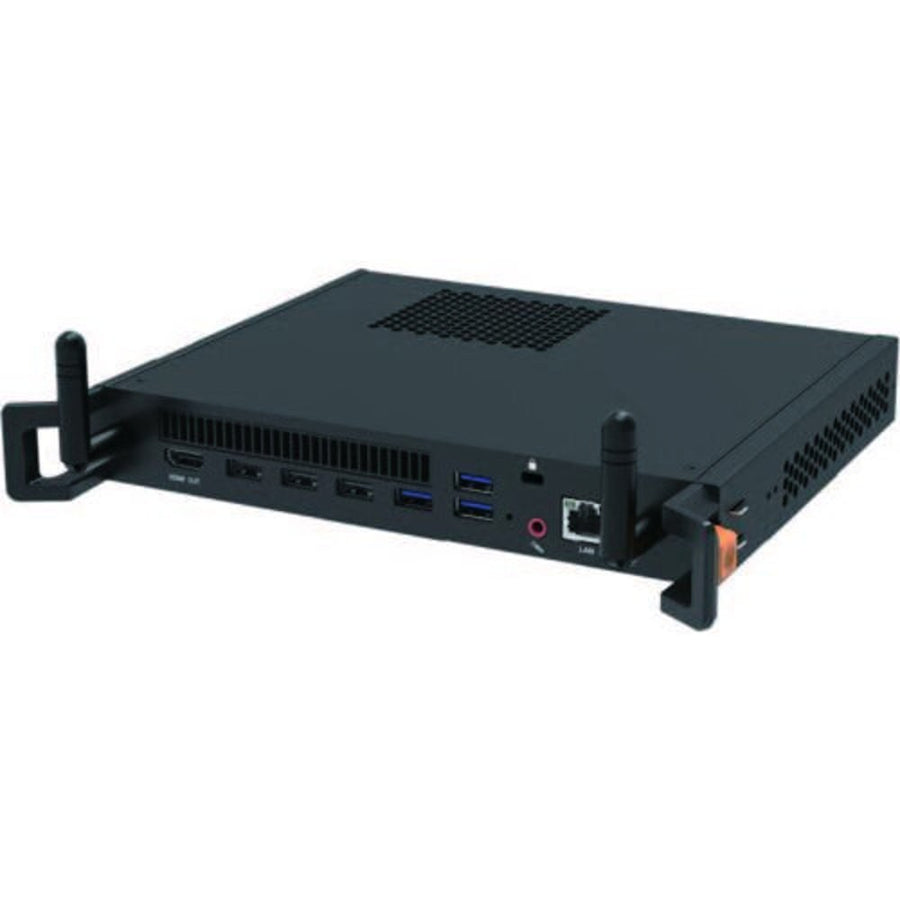

MAXHUB Pluggable OPS PC Module – OPS62A and OPS72A
The MAXHUB Pluggable PC Module is an Open Pluggable Specification (OPS) computer in the OPS62A and OPS72A families, with Intel Core i5 or i7 processors, 8 GB or 16 GB RAM and SSD storage up to 512 GB. It slides into the OPS slot of a MAXHUB panel. Procure.ae supplies it in the UAE.
The OPS62A uses an 11th Gen Intel Core i5 or i7 with Intel UHD Graphics and Windows 10 IoT (64-bit), 8 GB or 16 GB RAM and 128 GB or 256 GB storage. The OPS72A uses 12th Gen Core i5 or i7, or a 13th Gen Core i5-13420H, with Intel Iris Xe Graphics, 8 GB or 16 GB DDR4-3200 RAM and 256 GB or 512 GB storage. Both families have four USB 3.0 ports, one USB Type-C port, gigabit RJ45, a microphone input and a line out.
The OPS72A adds a DisplayPort output rated to 7680 × 4320 at 60 Hz, HDMI 2.0 up to 3840 × 2160 at 60 Hz, and an M.2 Wi-Fi 6 module with Bluetooth 5.2 and two antennas. Both families draw power through the 80-pin OPS interface at 12 to 19 V. The OPS62A and OPS72A are listed as optional OPS modules for the MAXHUB E3 Series, which has an OPS slot.
Key features
Specifications
| Key Features | Open Pluggable Specification, Intel Core i5/i7, up to 16 GB RAM, up to 512 GB SSD, 4 USB 3.0, gigabit RJ45 |
| Model | Pluggable PC Module |
| Type | OPS Pluggable PC Module |
| Graphics | Intel UHD Graphics (OPS62A); Intel Iris Xe Graphics (OPS72A) |
| Memory Type | DDR4-3200 SODIMM (OPS72A) |
| Operating System | Windows 10 IoT 64-bit (OPS62A); Windows 10/11 64-bit or Windows 11 Pro (OPS72A) |
| Processor | 11th Gen Intel Core i5/i7 (OPS62A); 12th Gen Core i5/i7 or 13th Gen Core i5-13420H (OPS72A) |
| RAM | 8 GB or 16 GB |
| Storage | 128 GB to 512 GB SSD, depending on variant |
| Audio In | Microphone in × 1 |
| Audio Out | Line out × 1 |
| DisplayPort | DisplayPort Out × 1, up to 7680 x 4320@60 Hz (OPS72A) |
| Bluetooth | Bluetooth 5.2 (OPS72A) |
| Ethernet | RJ45 × 1 (10/100/1000 Mbps) |
| HDMI Outputs | HDMI Out × 1 (4K@30 on OPS62A, 4K@60 on OPS72A) |
| Input Voltage | 12–19 V DC |
| USB Ports | USB 3.0 × 4 |
| USB-C Ports | USB-C × 1 |
| Wi-Fi | Wi-Fi 6 M.2 module (OPS72A) |
| Power Consumption | ≤ 65 W (OPS62A), 80.7 W (OPS72A), maximum |
| Standby Power | ≤ 1.5 W (OPS62A), 2.9 W (OPS72A) |
| Dimensions | 202 x 133.5 x 30 mm (OPS62A), 180 x 119 x 30 mm (OPS72A) |
| Form Factor | Open Pluggable Specification (OPS), 80-pin interface |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -10 to 50 °C (OPS62A), -10 to 45 °C (OPS72A) |
| Weight | 0.75 kg (OPS62A), 0.6 kg (OPS72A) |
| Certifications | CE, CB, FCC, KC, BIS (OPS62A) |
| Warranty | 3 years (OPS62A) |
