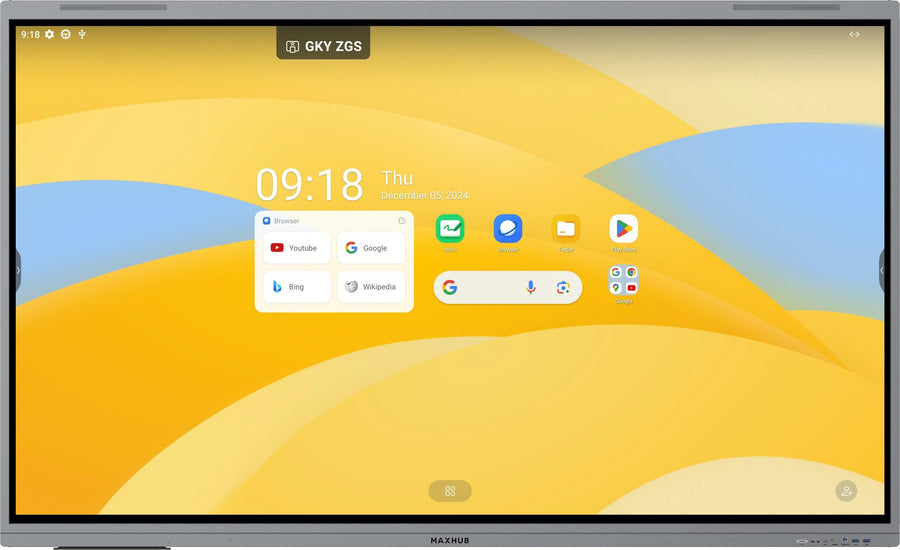

MAXHUB E3 Series 4K Interactive Flat Panel (65, 75, 86-inch) – E6530 / E7530 / E8630

Name: MAXHUB E3 Series 4K Interactive Flat Panel (65, 75, 86-inch) – E6530 / E7530 / E8630
Brand: MAXHUB
SKU: E3 Series
Availability: InStock

The MAXHUB E3 Series is a 4K interactive flat panel for education, sold as the 65-inch E6530, 75-inch E7530 and 86-inch E8630. It has 40-point infrared touch, Android 14 with Google EDLA certification, an octa-core processor with 8 GB RAM and 128 GB storage. Procure.ae supplies the E3 Series in the UAE.

All three E3 Series models have a 3840 × 2160 display with 10-bit colour, 98% sRGB coverage, 400 nits typical brightness and a 178° viewing angle. Touch uses infrared recognition with 40 touch points, ±1.5 mm accuracy and a response time of 5 ms or less, and MAXHUB Think&Ink supports writing at a height of 2 mm or less. The SkyWave 2.2-channel sound system is rated at 2×8 W plus 2×18 W. The panels carry TÜV Low Blue Light and TÜV Flicker Free certification.

The E3 Series runs Android 14 with MAXHUB EDU OS V4 and includes Google Play, Google Drive and Google Meet, plus MAXHUB Class Pro, Connect and Pivot for teaching, screen sharing and device management. Each panel has an OPS slot and a Wi-Fi module slot, and the SI07B Wi-Fi 6 module is supplied. The 65-inch and 75-inch models use a VA panel and the 86-inch model an IPS panel, with 5,000:1 and 3,000:1 typical contrast respectively.

Screen Size

65, 75 and 86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits (typical), 450 nits (maximum)

Touch Technology

Infrared

4K display
40-point touch
Android 14

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

4K display

3840 × 2160 resolution, 10-bit colour, ΔE of 1 or less and 98% sRGB.

40-point touch

infrared touch with ±1.5 mm accuracy, plus Think&Ink writing at 2 mm or less.

Android 14

Google EDLA certified, with Google Play, Drive and Meet and MAXHUB EDU OS V4.

Processing

octa-core CPU at 2.2 GHz, 6 TOPS NPU, 8 GB RAM and 128 GB storage.

SkyWave audio

2.2-channel speakers rated at 2×8 W plus 2×18 W with 88 dB sound pressure level.

Eye care

TÜV Low Blue Light and TÜV Flicker Free certification with ambient light and colour temperature sensors.

Full-function USB-C

the front port carries video, audio, touch and LAN sharing with up to 65 W power delivery.

Modular

OPS slot, Wi-Fi 6 module slot and Bluetooth 5.2 for expansion.

Specifications

51 specifications

General

Key Features4K UHD, 40-point infrared touch, Android 14, Google EDLA, Think&Ink writing, TÜV eye care, OPS slot, Wi-Fi 6 module

ModelE3 Series

TypeInteractive Flat Panel

What's in the BoxPower cord, HDMI cable, remote control, 2 styluses, wall mount bracket, Wi-Fi module

Display

Aspect Ratio16:9

BacklightDLED, ≥ 60,000 hours

Blue Light FilterTÜV Low Blue Light certified

Brightness400 nits (typical), 450 nits (maximum)

Color Depth10-bit (1.07 billion colours)

Color Gamut98% sRGB

Contrast Ratio5,000:1 (65 and 75 inch), 3,000:1 (86 inch)

Panel TechnologyVA (65 and 75 inch), IPS (86 inch)

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time6.5 ms (65 and 75 inch), 8 ms (86 inch)

Screen Size65, 75 and 86 inch

Touch Accuracy±1.5 mm

Touch Points40-point multi-touch

Touch Response Time≤ 5 ms

Touch TechnologyInfrared

Viewing Angle178° (H/V)

Performance

GraphicsMali G52 MC3

Operating SystemAndroid 14

ProcessorOcta-core A72 x 4 + A53 x 4, 2.2 GHz

RAM8 GB

Storage128 GB

Audio

Audio In3.5 mm × 1

Audio Out3.5 mm × 1, SPDIF × 1

DisplayPortDisplayPort In × 1 (4K@60Hz)

Speaker Configuration2.2 channel

Speaker Output2×8 W + 2×18 W (rated)

Connectivity

BluetoothBluetooth 5.2

EthernetRJ45 In × 1, RJ45 Out × 1 (10/100/1000 Mbps)

HDMI InputsHDMI In × 3 (up to 4K@60Hz)

HDMI OutputsHDMI Out × 1 (up to 4K@60Hz)

Input Voltage100–240 V AC, 50/60 Hz

OPS SlotOPS slot × 1

Serial PortRS232 × 1 (9600 baud)

USB PortsUSB 3.0 × 4, USB 2.0 × 1 (system upgrade)

USB-C PortsUSB-C × 2 (front up to 65 W PD, rear up to 15 W PD)

VGA InputVGA In × 1 (up to 1080p@60Hz)

Wi-FiWi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4/5 GHz) via supplied module

Power

Power Consumption130 W / 170 W / 190 W (typical, 65 / 75 / 86 inch)

Standby Power≤ 0.5 W

Physical

Dimensions1490 x 917 x 100 mm (65 inch), 1711 x 1040 x 100 mm (75 inch), 1959 x 1179 x 100 mm (86 inch)

Operating Humidity10% to 90% RH

Operating Temperature0 to 40 °C

VESA MountNo (wall mount bracket supplied)

Weight37.4 kg (65 inch), 49.9 kg (75 inch), 52.45 kg (86 inch)

Compliance

CertificationsGoogle EDLA, TÜV Low Blue Light, TÜV Flicker Free, Energy Star

IP RatingIP5X (dust)

Downloads

Manufacturer documents for the MAXHUB E3 Series 4K Interactive Flat Panel (65, 75, 86-inch) – E6530 / E7530 / E8630 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the difference between the E6530, E7530 and E8630?

They are the 65-inch, 75-inch and 86-inch sizes of the E3 Series. The E6530 and E7530 use VA panels with 5,000:1 typical contrast, while the E8630 uses an IPS panel with 3,000:1. Typical power is 130 W, 170 W and 190 W, and net weight is 37.4 kg, 49.9 kg and 52.45 kg.

Which operating system does the MAXHUB E3 Series run?

It runs Android 14.0 with Google EDLA certification and MAXHUB EDU OS V4. Google Play, Google Drive, Google Meet and YouTube are included, alongside MAXHUB Class Pro for whiteboarding, MAXHUB Connect for screen sharing and MAXHUB Pivot for device management.

How many touch points does the E3 Series support?

It supports 40 touch points using infrared recognition, with ±1.5 mm accuracy and a response time of 5 ms or less. Think&Ink handles writing at a height of 2 mm or less, and touch return works with Windows, Android, Linux, Mac OS X and Chrome.

Does the E3 Series have a built-in camera or microphone?

The E3 Series datasheet does not list a built-in camera or microphone array. It lists optional modules instead, including the UC W31 USB camera and the UC S07 video bar, plus the OPS62A and OPS72A OPS modules and the WL10C sensor box.

Can the E3 Series be wall mounted or placed on a stand?

The datasheet states VESA support as No and supplies a WIB9060H wall mount bracket (129 mm combined thickness). Optional mobile stands listed are the ST33M, ST23G and EST09. Ask Procure.ae to confirm the right mount for your size and wall type.

Can I buy the E6530, E7530 and E8630 in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
